1997 Subaru SVX LSiFACTORY OEM SERVICE PROCEDURE
Continuity Test

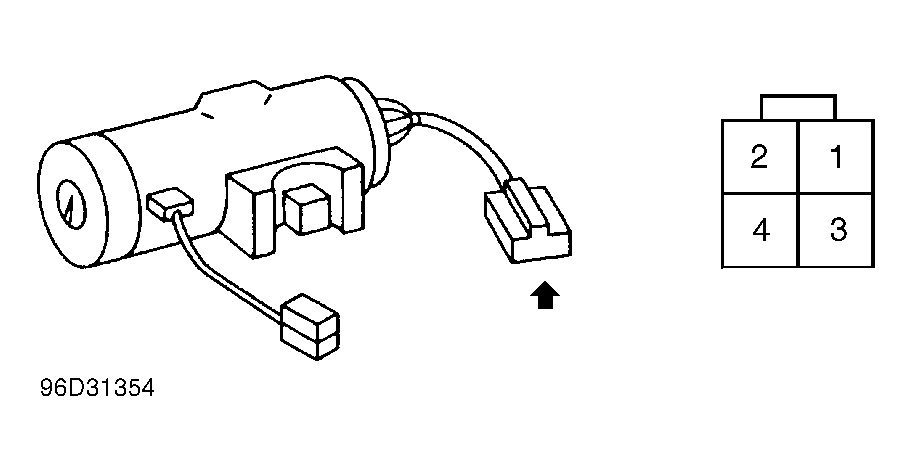

Ensure continuity is as specified. See IGNITION SWITCH CONTINUITY SPECIFICATIONS table. See Fig 1 . Repair or replace switch as necessary.
IGNITION SWITCH CONTINUITY SPECIFICATIONS
| Switch Position | Continuity Between Terminals |
|---|---|
| OFF | No Continuity |
| ACC | 1 & 2 |
| ON | 1, 2 & 4 |
| START | 1, 2, 3 & 4 |
