Ignition Timing

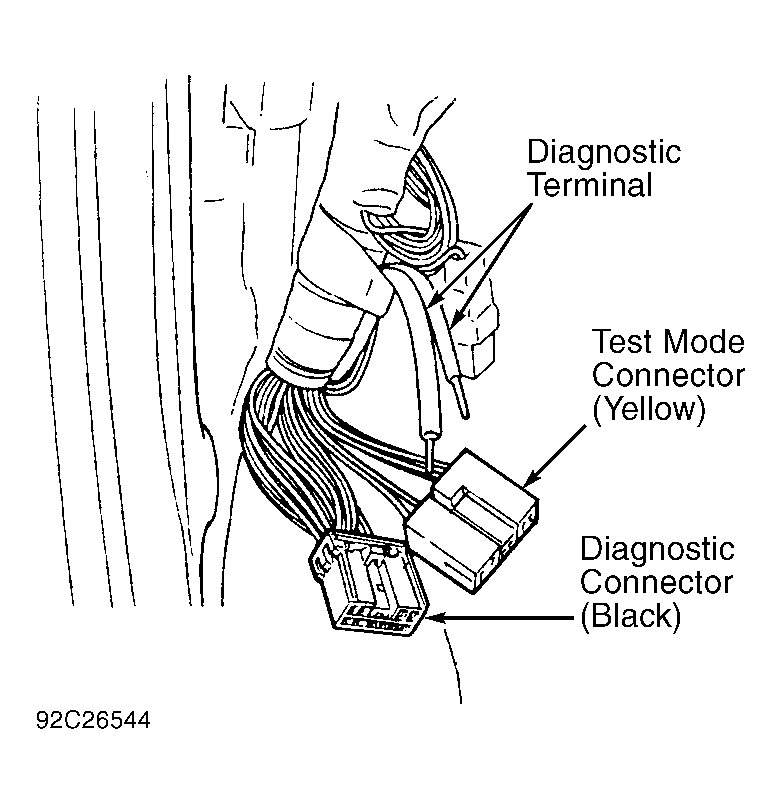

Warm engine to normal operating temperature. Turn A/C off. Connect Subaru Test Mode Monitor to test mode monitor connector, located under left side of dash. See Fig 1 . Using test mode monitor, select MODE 07 to determine ignition timing. See 6-CYLINDER IGNITION TIMING SPECIFICATION table. If ignition timing is not as specified, check self-diagnostic system for trouble codes. Repair as necessary. See SELF-DIAGNOSTICS article.
| Application | Degrees BTDC @ RPM |
|---|---|
| SVX | 12-28 @ 610 |
