1993 Subaru SVXFACTORY OEM SERVICE PROCEDURE

Power Window Switch: Loyale

Remove control switch from door panel. Using ohmmeter, check continuity of switch. For switch terminal identification seeFig 1 and Fig 2 . Replace appropriate switch as necessary if switch continuity is not as specified. SeeFig 3 and Fig 4 .

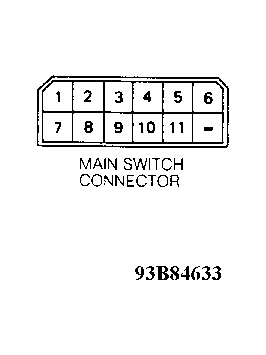

Fig 1: Power Window Connector Terminal ID (Loyale)

Courtesy of SUBARU OF AMERICA, INC.
