1991 Subaru XT AutomaticFACTORY OEM SERVICE PROCEDURE

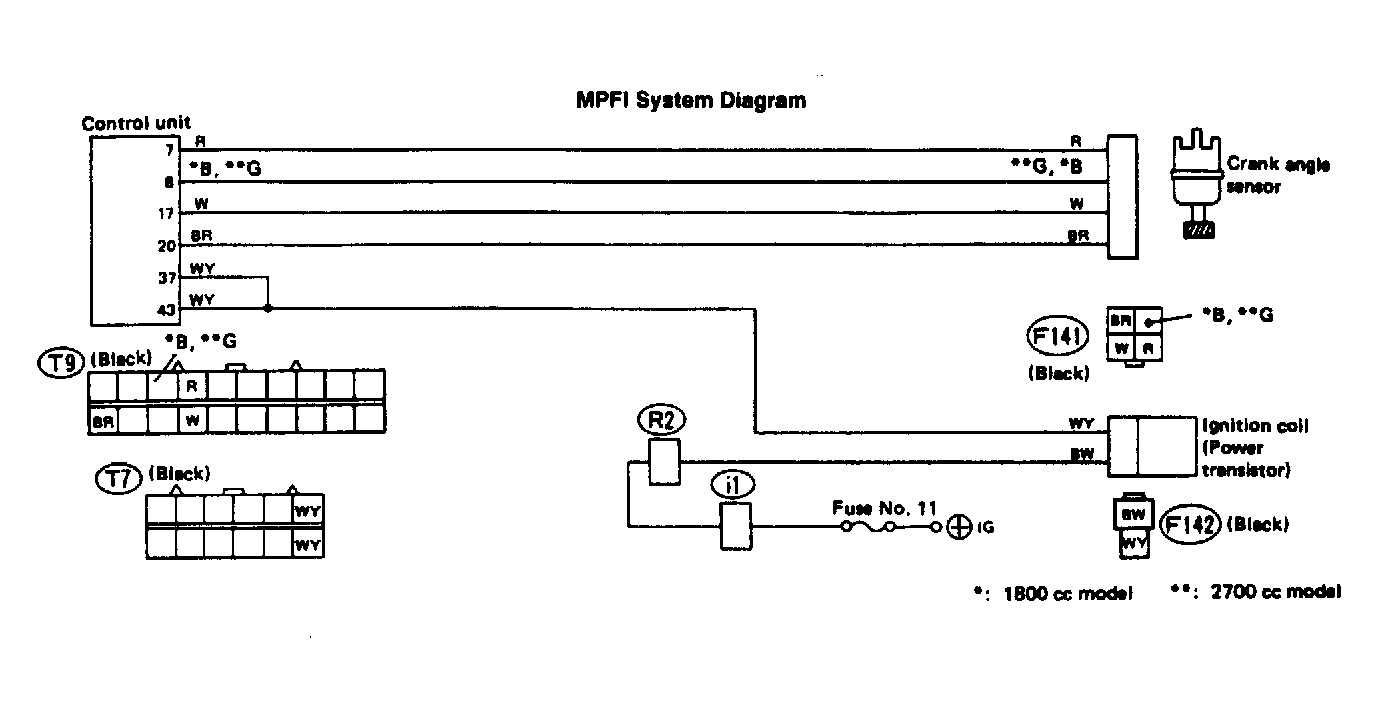

LOYALE, XT & XT6 Ignition Control System Tests
NOTE:
Terminal references in the following test chart apply only to Loyale PFI, XT and XT6. When testing Loyale TBI, refer to TERMINAL CONVERSION table for correct terminal reference.
TERMINAL CONVERSION
| Terminal Indicated In Test Chart | TBI Terminal |
|---|---|
| No. 7 Red | No. 19 Green/Black |
| No. 8 Black or Green | No. 21 Black/White |
| No. 17 White | No. 20 Green/Yellow |
| No. 20 Brown/Red | No. 35 Black |
| No. 37/43 White/Yellow | No. 52 White/Yellow |
