1991 Subaru XT AutomaticFACTORY OEM SERVICE PROCEDURE
3-Cylinder Ignition Timing: Justy

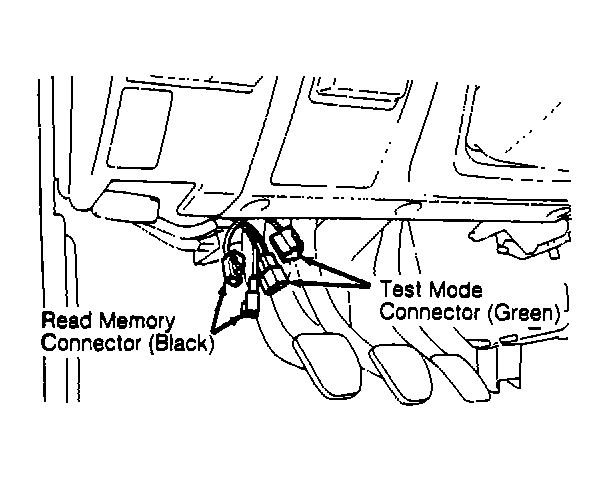

- Warm engine to normal operating temperature. Place transmission in Neutral and turn off all accessories. Disconnect test mode and read memory connectors. See Fig 1 .
- Start engine and check ignition timing. If necessary, loosen distributor hold-down bolt and adjust ignition timing by rotating distributor. Reconnect test mode and read memory connectors.
3-CYLINDER IGNITION TIMING
| Application | (1) Degrees BTDC @ RPM | ||
|---|---|---|---|
| M/T | 5 @ 800 | ||
| A/T | 5 @ 850 | ||
|
|||
