Enter specific test mode by connecting or disconnecting read memory and/or test mode connectors as shown in the RELATIONSHIP BETWEEN MODES & CONNECTORS table. Connectors are located behind left side of dash. See Fig 1 .
On Justy carbureted, observe O2 sensor monitor light, located in ECU. On all other models, observe either CHECK ENGINE or O2 sensor monitor light. Note trouble codes, if any. Long illumination periods of 1.2 seconds designate the tens digit in the numbered codes. Short illumination periods of .2 second designate the ones digit in the numbered codes.
Tens and one digits are separated by a .03-second interval of non illumination. Example: 3 long flashes (1.2 seconds each), followed by 5 short flashes (.02 second each) designate code 35.
Code is repeated after a break of 2 seconds, unless another code is present which will be displayed after the 2-second break. Once all codes have been displayed, sequence will repeat.

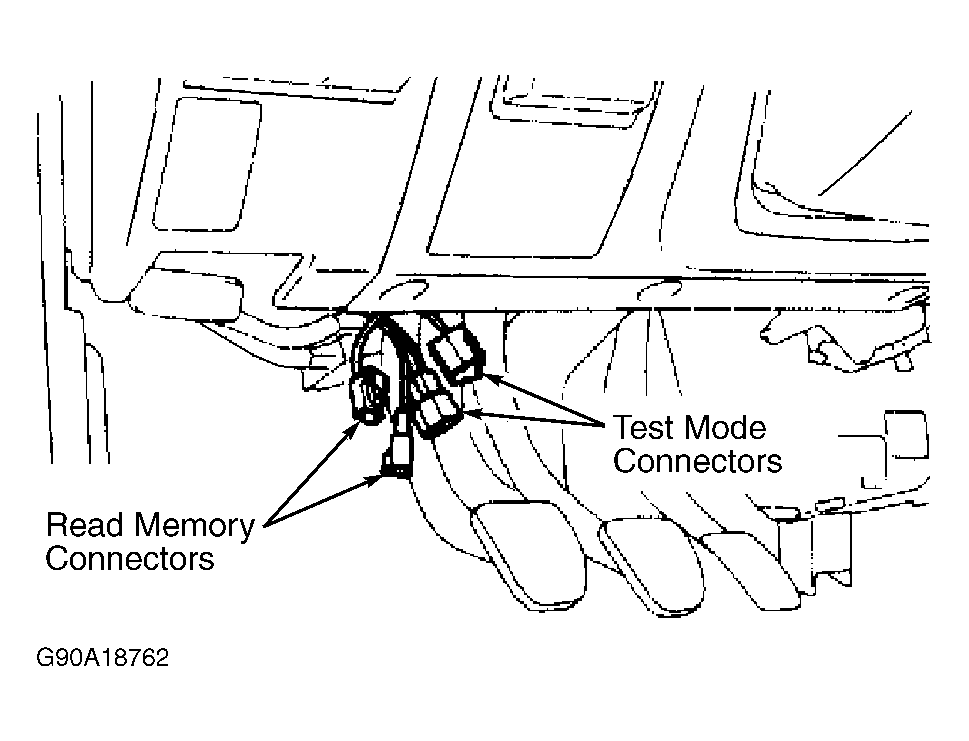

Fig 1: Location of Read Memory & Test Mode Connectors

Courtesy of SUBARU OF AMERICA, INC.

RELATIONSHIP BETWEEN MODES & CONNECTORS

Mode

Read Memory Connector

Test Mode Connector

U-CHECK ⁽¹⁾

Disconnected

READ MEMORY ⁽¹⁾

Connected

Disconnected

D-CHECK ⁽¹⁾

Disconnected

Connected

CLEAR MEMORY ⁽²⁾

Connected

⁽¹⁾	Key on, engine off.

⁽²⁾	Key on, engine running.
