1988 Subaru Justy DLFACTORY OEM SERVICE PROCEDURE

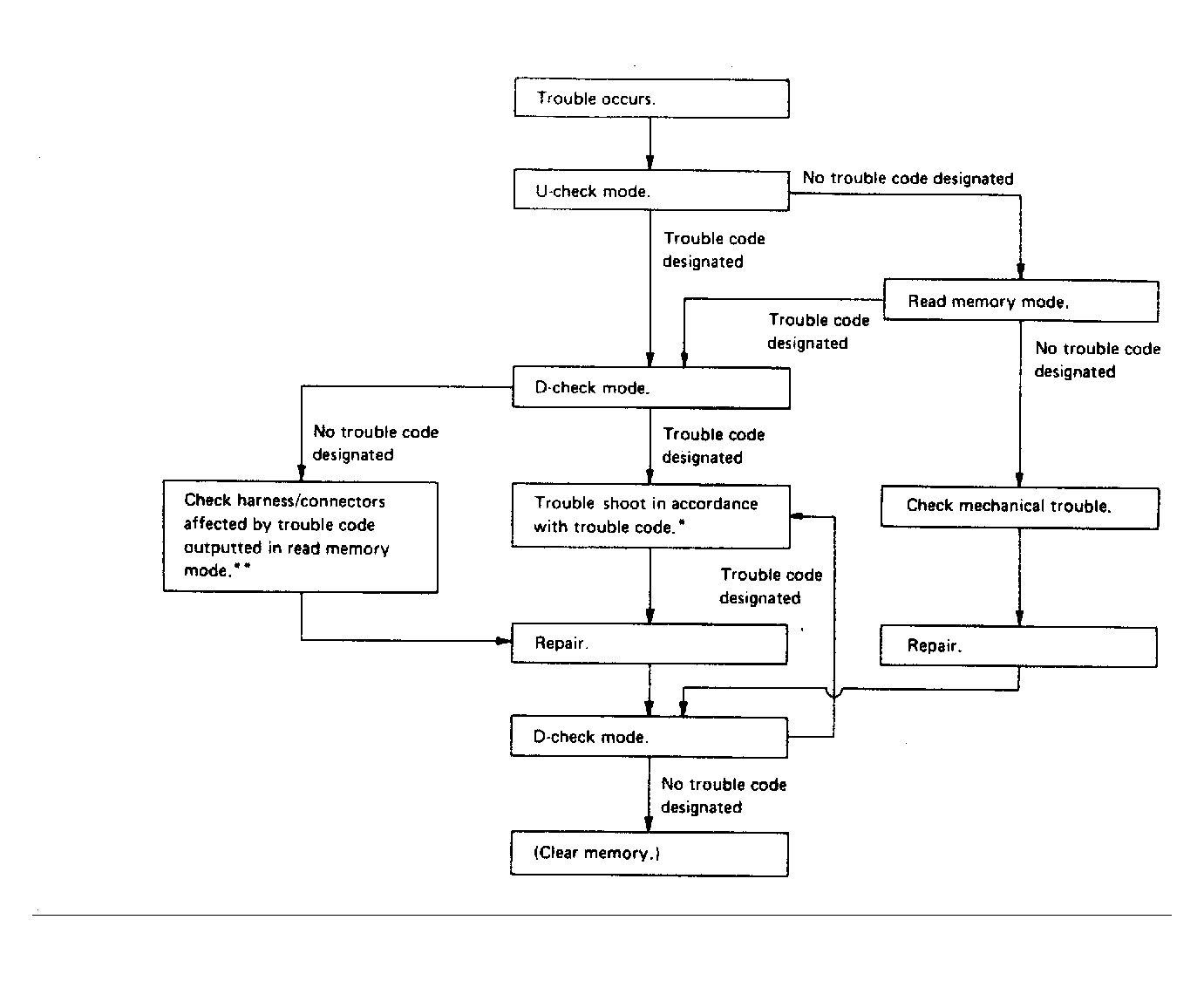

Clearing Trouble Codes
Trouble codes will be cleared from ECM memory only after malfunction has been repaired. Always perform diagnostic test after any repair to make sure that no other malfunction exists and that repairs solved original problem.
ECM TROUBLE CODE LIST
| Trouble Code | Component Affected |
|---|---|
| 11 | Ignition Pulse System (Engine Off) |
| 12 | Back-Up System |
| 14 | Duty Solenoid Valve System |
| 15 | Coasting Fuel-Cut System |
| 21 | Thermosensor System |
| 22 | VLC Solenoid Valve System |
| 23 | Pressure Sensor |
| 24 | Idle-Up Solenoid Valve |
| 25 | FCV Solenoid Valve Control |
| 32 | O2 Sensor |
| 33 | Car Speed Sensor System |
| 35 | Purge Control Solenoid |
| 41 | Main System Feedback System |
| 52 | Clutch Switch System |
| 62 | Idle-Up System (Clearance Light & Rear Defogger) |
| 63 | Idle-Up System (Heater Fan & Radiator Fan) |
WIRE COLOR ABBREVIATION CHART
| Abbreviation | Color |
|---|---|
| B | Black |
| Br | Brown |
| G | Green |
| Gr | Gray |
| L | Blue |
| Lg | Light Green |
| P | Pink |
| R | Red |
| W | White |
| Y | Yellow |
