Federal 4WD & Fuel Injected Turbo Models

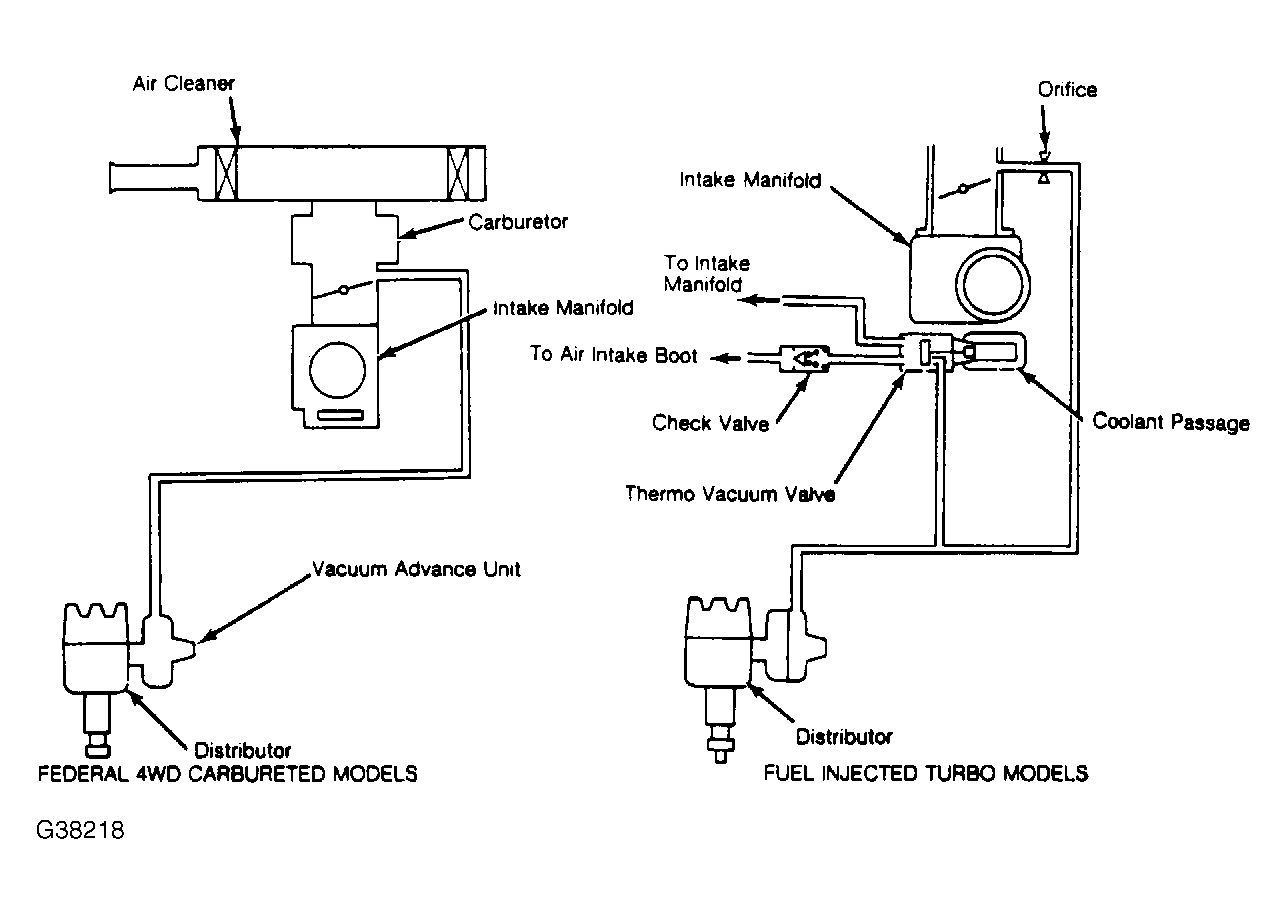

These vehicle are equipped with a single diaphragm advance unit. Vacuum pressure produced in the advance port is applied to the advance control unit in relation to opening angle of the throttle valve in order to provide an advance angle. See Fig 1 .
