Throttle Switch

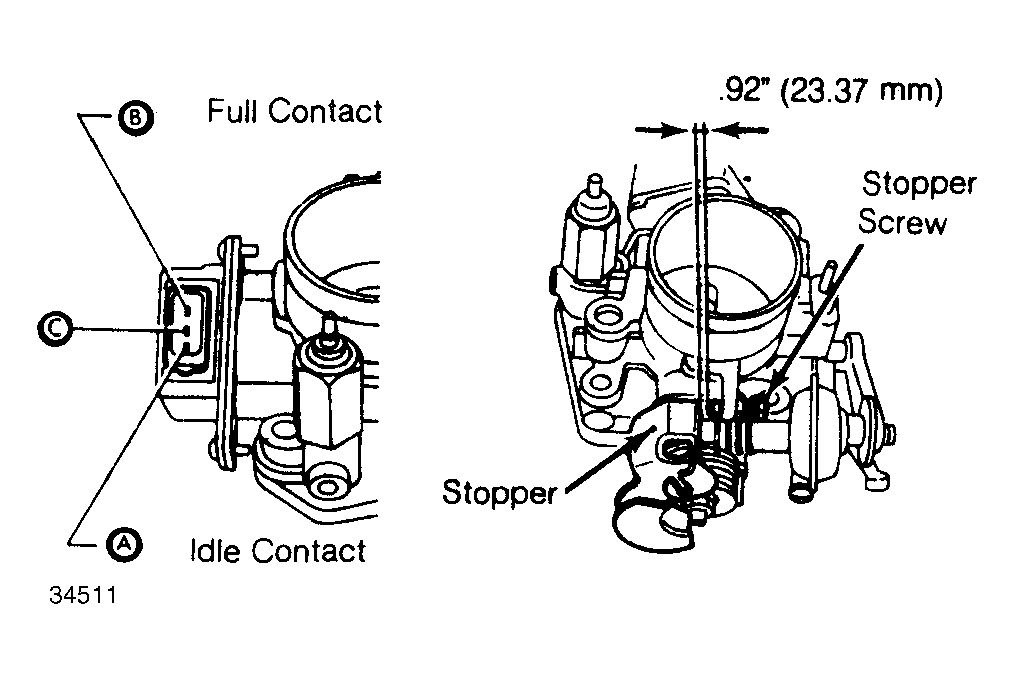

Loosen throttle switch mounting screws. Insert a .92" (23.37 mm) feeler gauge between stopper and stopper screw. See Fig 1 . Connect ohmmeter between terminals "A" and "C". Adjust switch position so ohmmeter reading changes from 0 to infinity with feeler gauge in position.
