Remove/Install Injection System Control Unit - AR07.08-P-7008SR
ENGINE 281 in MODEL 453
Shown on model 453.0
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Perform initial startup of ME-SFI [ME] control unit (N3/10) | When replacing the ME-SFI [ME] control unit (N3/10). | |
| AD00.00-P-2000-06SR | |||
| 2 | Switch off ignition and remove transmitter key | ||
| 3 | Remove right paneling in cargo area | Engine 281 in model 453.4 | AR68.30-P-4700SRC |
| Engine 281 in model 453.0 | AR68.30-P-4800SR | ||
| Engine 281 in model 453.3 | AR68.30-P-4800SRA | ||

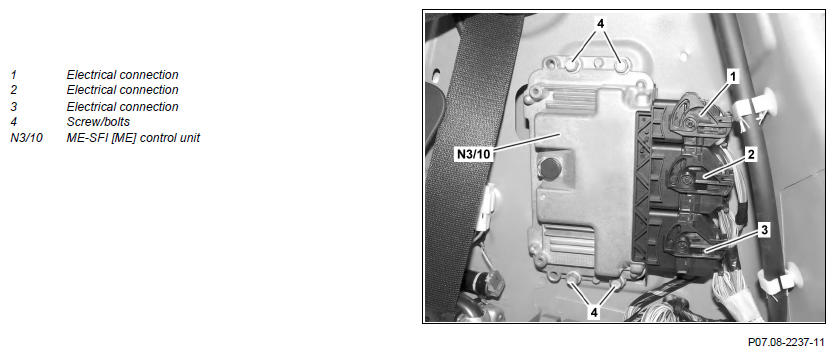

| 4 | Release and disconnect electrical connection (1) | ||
| 5 | Release and disconnect electrical connection (2) | ||
| 6 | Release and disconnect electrical connection (3) | ||
| 7 | Remove screw/bolts (4) and remove from ME-SFI [ME] control unit (N3/10) | ||
| 8 | Install in the reverse order |
