2012 Smart Fortwo Passion, 2D ConvertibleFACTORY OEM SERVICE PROCEDURE
Remove/install knock sensor - AR15.12-P-2185MCU
ENGINE 132.910 in MODEL 451.3/4
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Raise vehicle with vehicle lift | ||

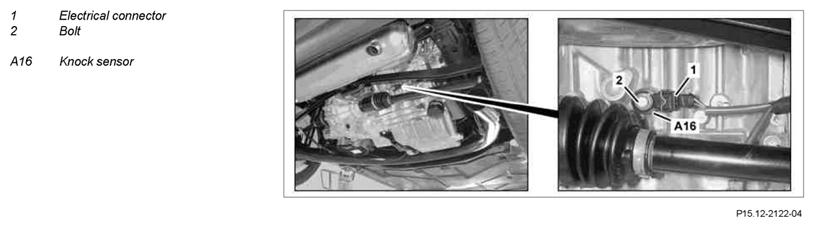

| 2 | Disconnect electrical connector (1) at knock sensor (A16) | ||
| 3 | Unscrew screw (2) and remove knock sensor (A16) | *BA15.12-P-1001-01G | |
| 4 | Install in the reverse order | ||
| 5 | Read out fault memory, erase if necessary | When installing new a knock sensor (A16). | |
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04MCC |
ECI IGNITION SYSTEM
| Number | Designation | ENGINE 132.9 | |
|---|---|---|---|
| BA15.12-P-1001-01G | Bolt, knock sensor to crankcase | Nm | 20 |
