2012 Smart Fortwo Passion, 2D ConvertibleFACTORY OEM SERVICE PROCEDURE
Repair of windshield - AR67.10-P-1600MCC
MODEL 451.3/4, 454.0

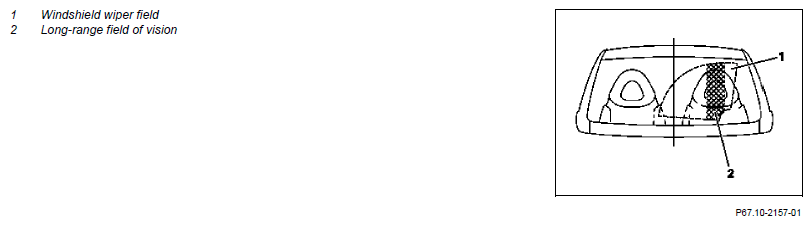

| Notes on stone impact repair on laminated glass windows | AH67.10-P-0002-01MCC | ||
| The following tolls are required for stone impact repair on windshield | Stone impact repair tool |
||
| 1 | Prepare repair for windshield | AR67.10-P-1600-01MCC | |
| 2 | Repair windshield | AR67.10-P-1600-02MCC | |
| 3 | Finish windshield repair | AR67.10-P-1600-03MCC |
