2013 Scion xD Standard TransFACTORY OEM SERVICE PROCEDURE
VSC Off Switch: Inspection: Inspection

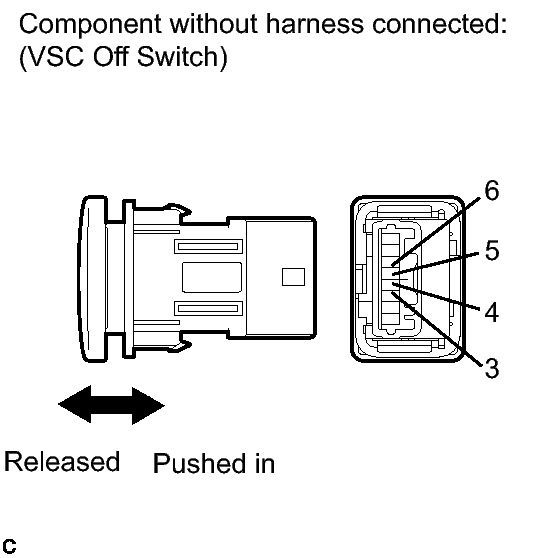

- INSPECT VSC OFF SWITCHΒ
- Measure the resistance according to the value(s) in the table below.
Courtesy of Β© TOYOTA, LICENSE AGREEMENT TMS1002
Standard resistance
Tester Connection Switch Condition Specified Condition 3 - 6 Released 10 kΞ© or higher 3 - 6 Pushed in Below 1 Ξ© If the result is not as specified, replace the VSC off switch.
- Check illumination operation.
OK
Tester Connection Switch Condition Specified Condition 4 - 5 Battery's positive (+) lead connected to terminal 5 and negative (-) lead to terminal 4 LED illuminates If the result is not as specified, replace the VSC off switch.
- Measure the resistance according to the value(s) in the table below.
