2013 Scion xD Automatic TransFACTORY OEM SERVICE PROCEDURE
Vehicle Identification And Serial Numbers
- VEHICLE IDENTIFICATION NUMBER
- The vehicle identification number is stamped on the vehicle identification number plate and on the certification label, as shown in the illustrations.

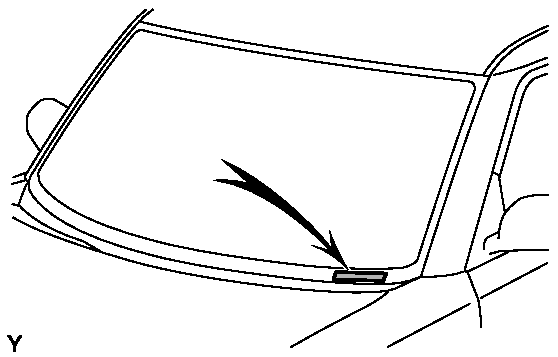

- Vehicle Identification Number Plate

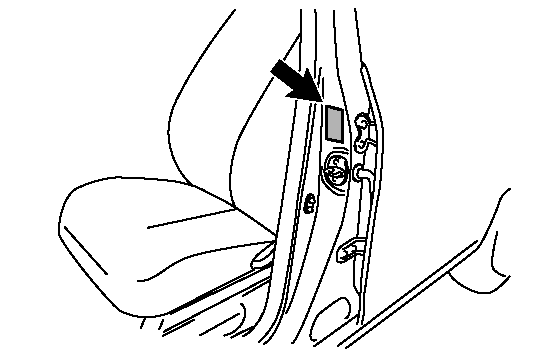

- Certification Label
- The vehicle identification number is stamped on the vehicle identification number plate and on the certification label, as shown in the illustrations.
- ENGINE SERIAL NUMBER AND TRANSAXLE SERIAL NUMBER
- The engine serial number is stamped on the cylinder block of the engine and the transaxle serial number is stamped on the housing as shown in the illustrations.

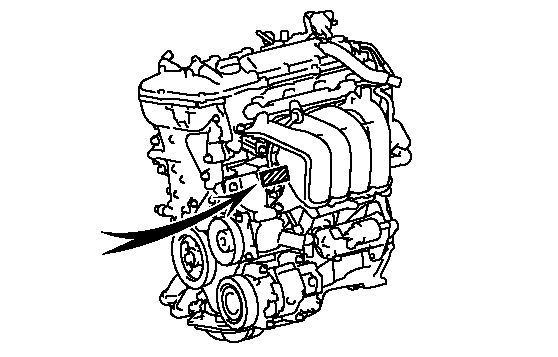

- Engine Serial Number

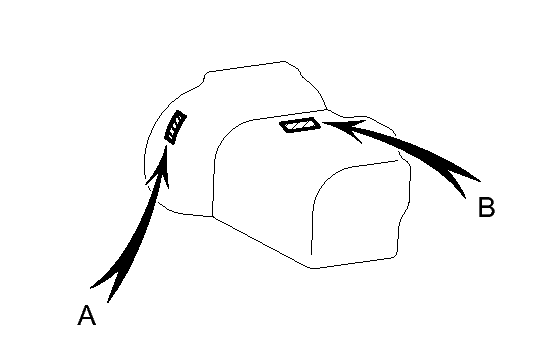

- Transaxle Serial Number
A
C50
B
U341E
- The engine serial number is stamped on the cylinder block of the engine and the transaxle serial number is stamped on the housing as shown in the illustrations.
