2013 Scion xB Automatic TransFACTORY OEM SERVICE PROCEDURE

Vehicle Identification And Serial Numbers

  1. VEHICLE IDENTIFICATION NUMBER
    1. The vehicle identification number is stamped on the vehicle body and on the certification label as shown in the illustrations.

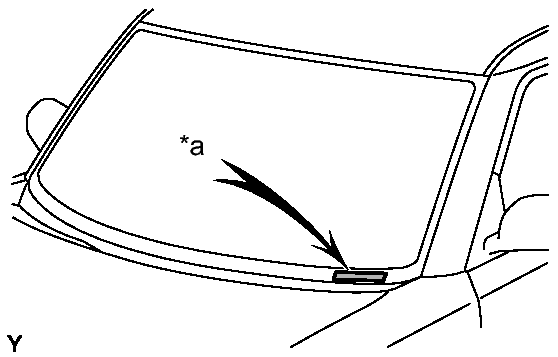

      Fig 1: Identifying Vehicle Identification Number (VIN) Location
      GTY392742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Vehicle Identification Number

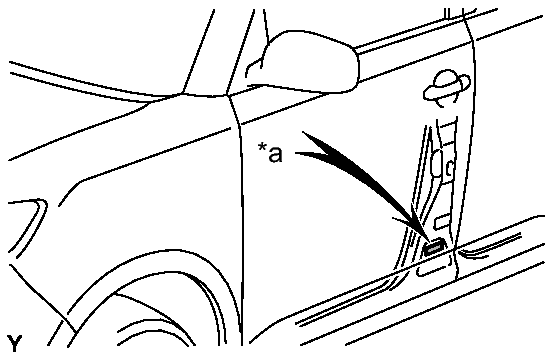

      Fig 2: Identifying Certification Label Location
      GTY388839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Certification Label
  2. ENGINE SERIAL NUMBER AND TRANSAXLE SERIAL NUMBER
    1. The engine serial number is stamped on the cylinder block of the engine and the transaxle serial number is stamped on the housing as shown in the illustrations.

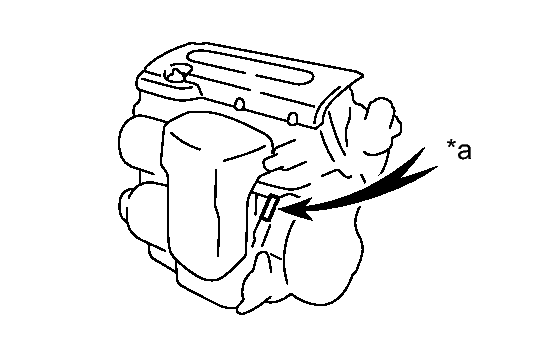

      Fig 3: Identifying Engine Serial Number
      GTY391882Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Engine Serial Number

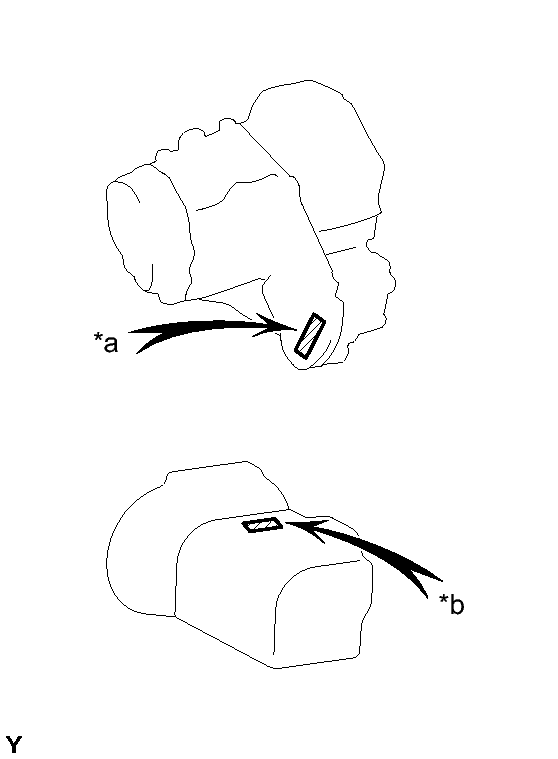

      Fig 4: Identifying Transaxle Serial Number
      GTY392479Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Transaxle Serial Number (E351)
      *b Transaxle Serial Number (U241E)
