VSC Off Switch: Inspection: Inspection
- INSPECT VSC OFF SWITCHΒ
- Measure the resistance according to the value(s) in the table below.STANDARD RESISTANCE
Tester Connection Switch Condition Specified Condition 3 - 6 Pressed Below 1 Ξ© Not pressed 10 kΞ© or higher Courtesy of Β© TOYOTA, LICENSE AGREEMENT TMS1002

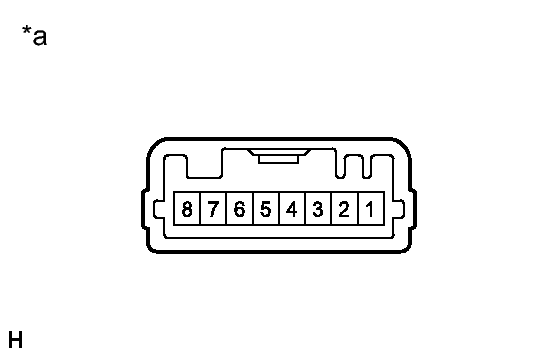

TEXT IN ILLUSTRATION*a Component without harness connected
(VSC OFF Switch)If the result is not as specified, replace the VSC OFF switch.
- Measure the resistance according to the value(s) in the table below.
