2011 Scion xB AutomaticFACTORY OEM SERVICE PROCEDURE

Automatic Transaxle Assembly: Components: Illustration

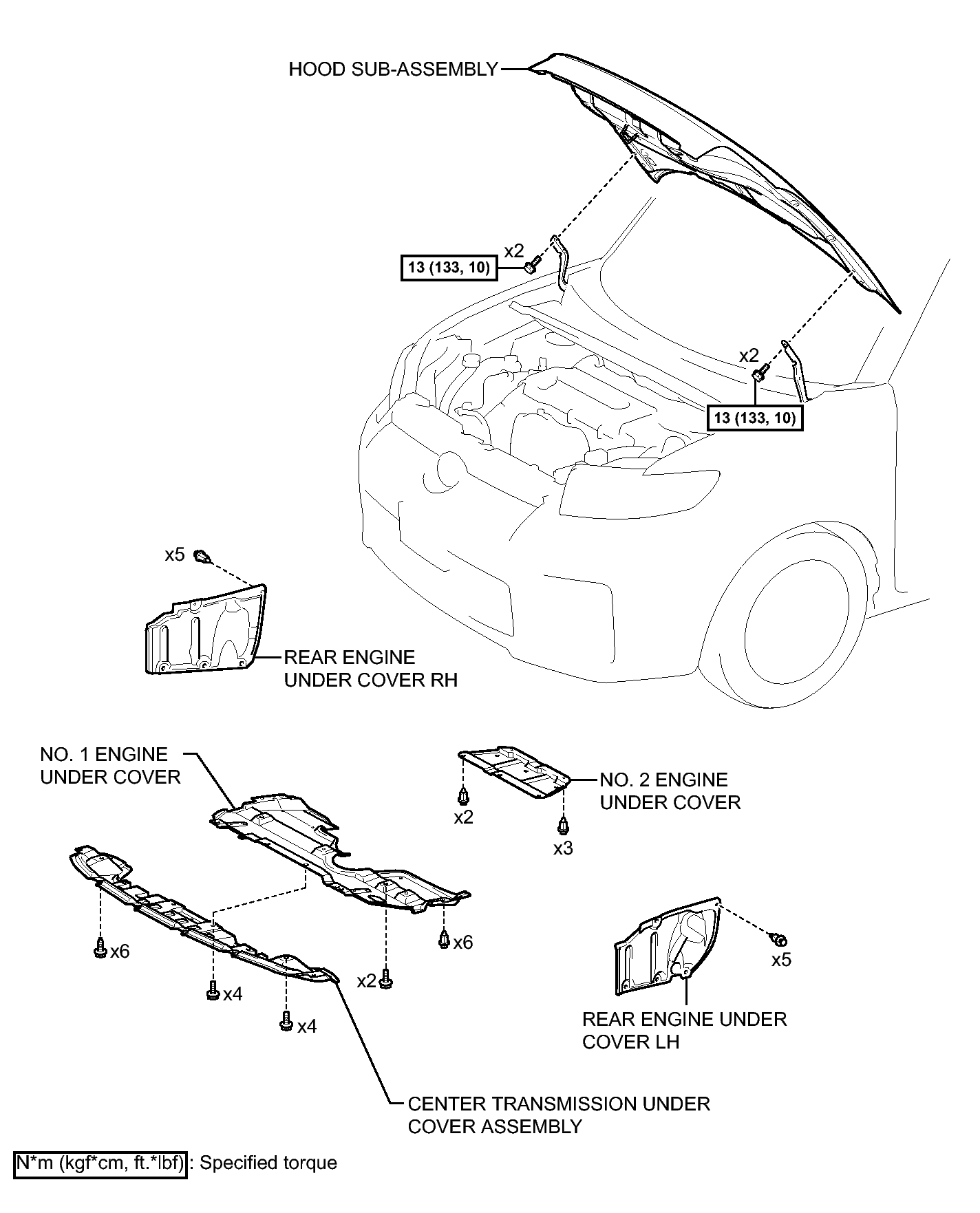

Fig 1: Identifying Automatic Transaxle Assembly Replacement Components And Torque Specifications (1 Of 6)
GTY312288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

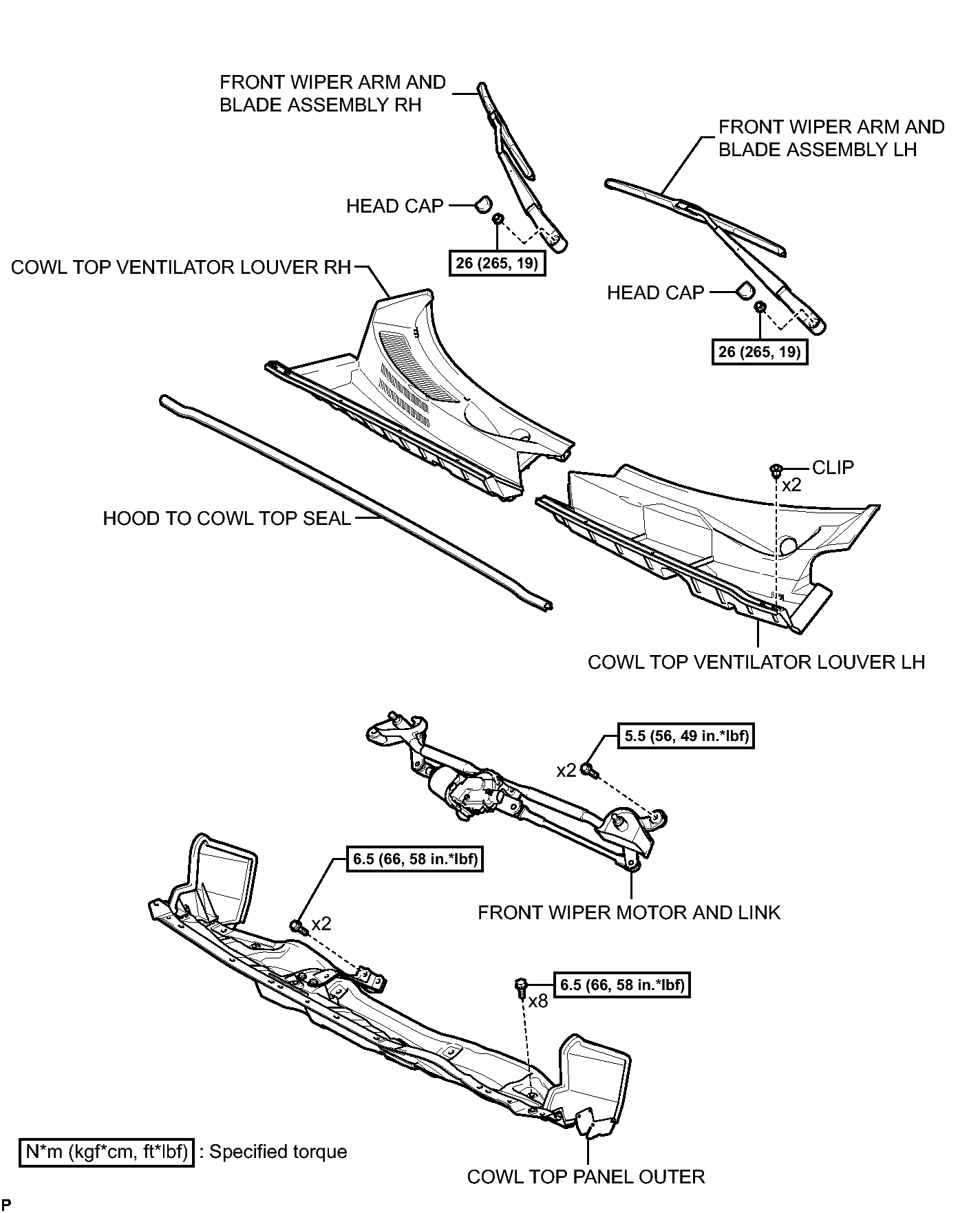

Fig 1: Identifying Automatic Transaxle Assembly Replacement Components And Torque Specifications (2 Of 6)
GTY160963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

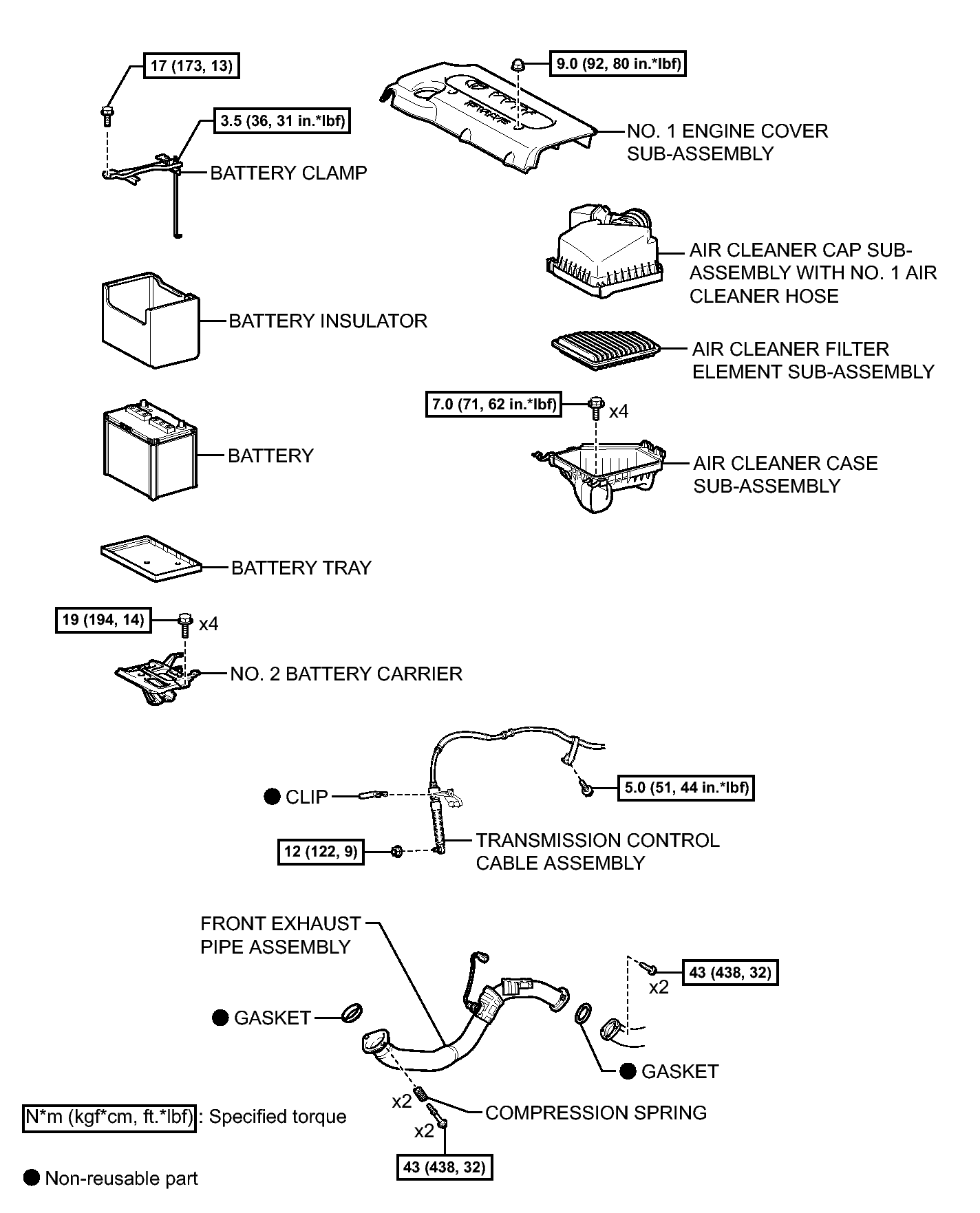

Fig 1: Identifying Automatic Transaxle Assembly Replacement Components And Torque Specifications (3 Of 6)
GTY314426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

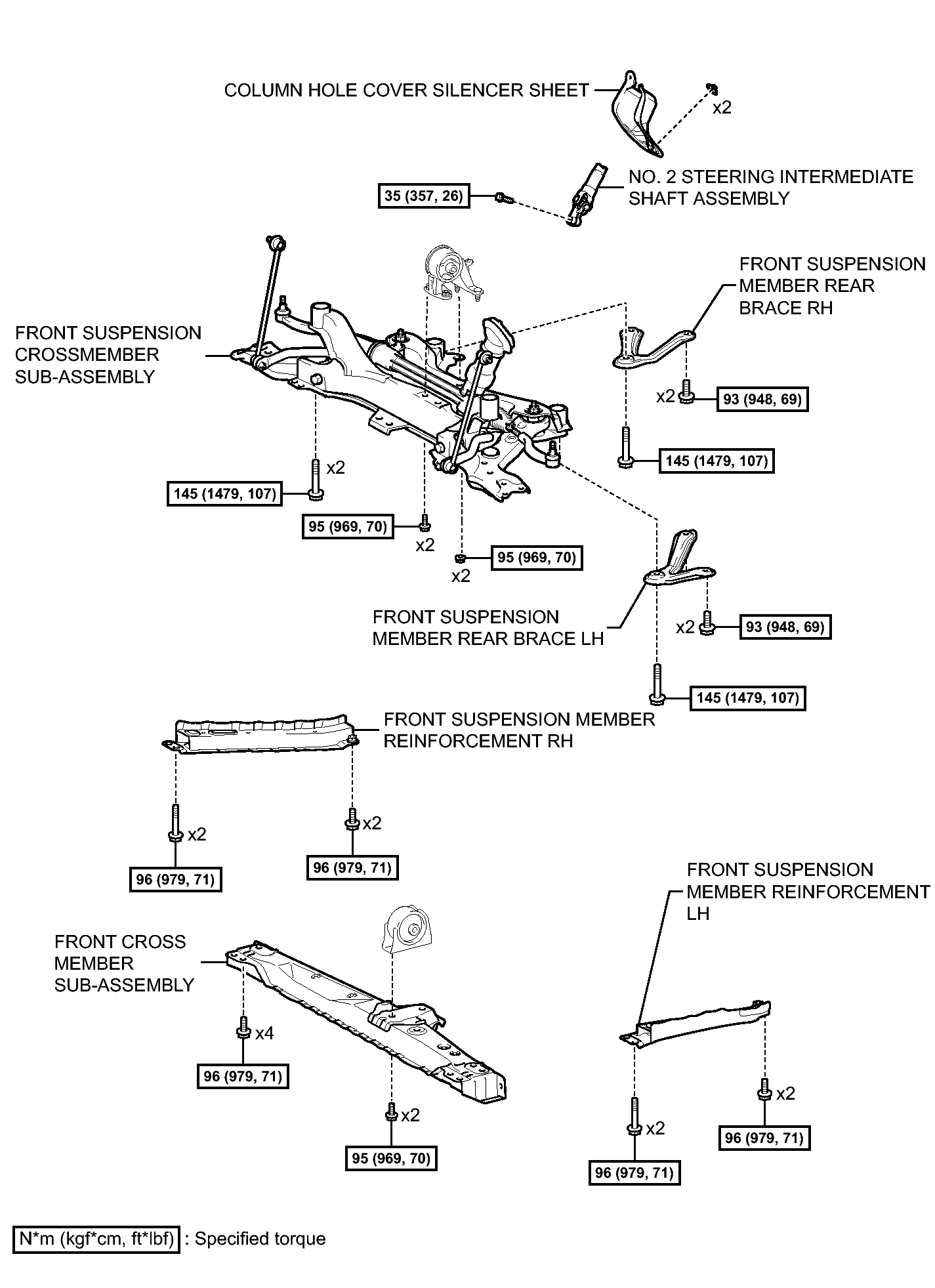

Fig 1: Identifying Automatic Transaxle Assembly Replacement Components And Torque Specifications (4 Of 6)
GTY158280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

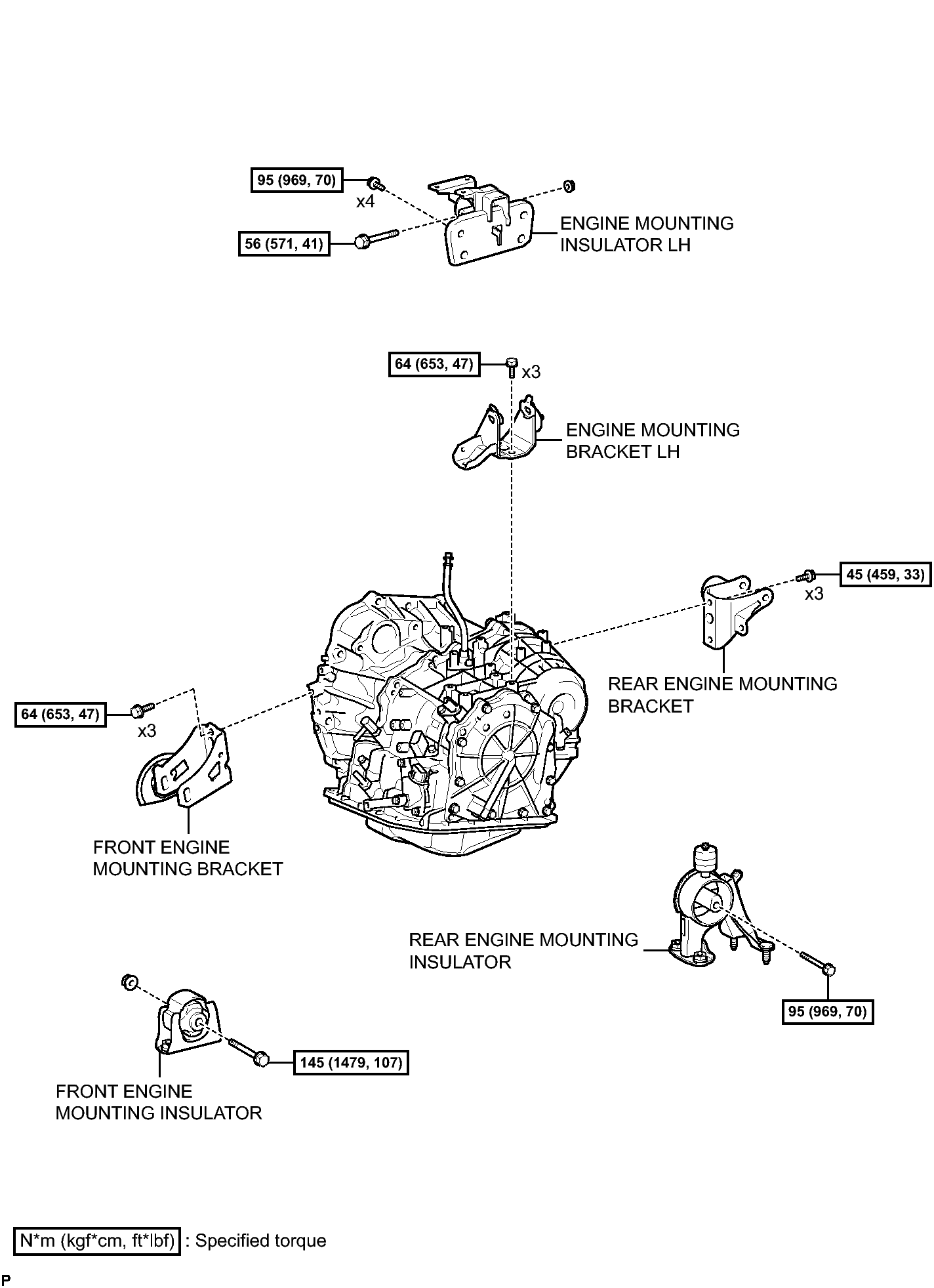

Fig 1: Identifying Automatic Transaxle Assembly Replacement Components And Torque Specifications (5 Of 6)
GTY158085Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

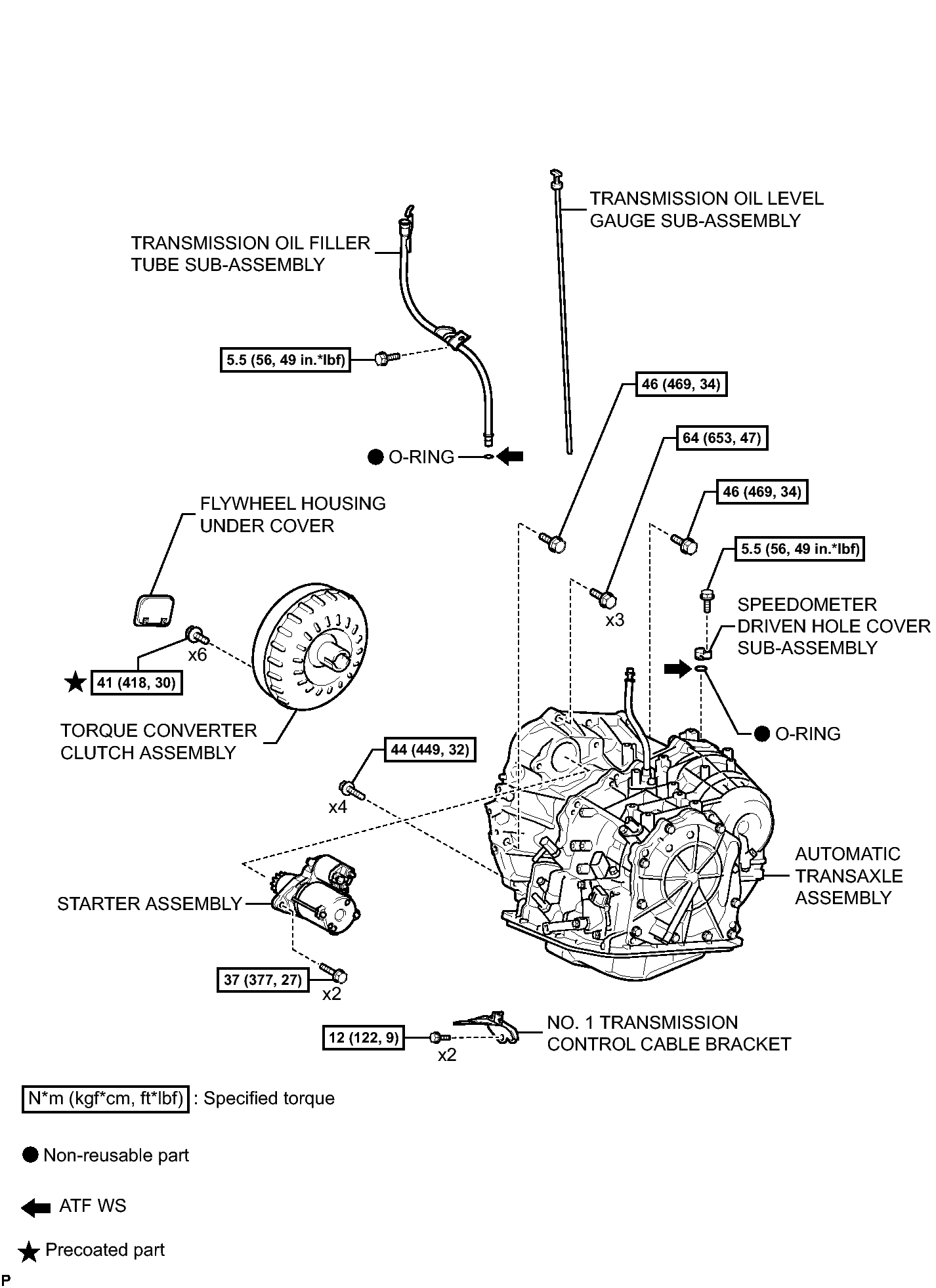

Fig 1: Identifying Automatic Transaxle Assembly Replacement Components And Torque Specifications (6 Of 6)
GTY314519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
