2011 Scion xB AutomaticFACTORY OEM SERVICE PROCEDURE

Knock Sensor: Removal: Removal

  1. DISCHARGE FUEL SYSTEM PRESSURE  . Refer to REMOVAL - Step 1
  2. DRAIN COOLANT  . Refer to REPLACEMENT - Step 1
  3. REMOVE WINDSHIELD WIPER ARM COVER  . Refer to REMOVAL - Step 1
  4. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH  . Refer to REMOVAL - Step 2
  5. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH  . Refer to REMOVAL - Step 3
  6. REMOVE HOOD TO COWL TOP SEAL  . Refer to REMOVAL - Step 4
  7. REMOVE COWL TOP VENTILATOR LOUVER RH  . Refer to REMOVAL - Step 5
  8. REMOVE COWL TOP VENTILATOR LOUVER LH  . Refer to REMOVAL - Step 6
  9. REMOVE FRONT WIPER MOTOR AND LINK  . Refer to REMOVAL - Step 7
  10. REMOVE OUTER COWL TOP PANEL  Refer to 8
  11. REMOVE NO. 1 ENGINE COVER  Refer to 2
  12. REMOVE AIR CLEANER CAP SUB-ASSEMBLY WITH NO. 1 AIR CLEANER HOSE  Refer to 3
  13. REMOVE THROTTLE BODY ASSEMBLY  Refer to 4
  14. REMOVE FUEL TUBE SUB-ASSEMBLY  . Refer to REMOVAL - Step 13
  15. REMOVE FUEL DELIVERY PIPE SUB-ASSEMBLY WITH FUEL TUBE SUB-ASSEMBLY  . Refer to REMOVAL - Step 14
  16. REMOVE INTAKE MANIFOLD

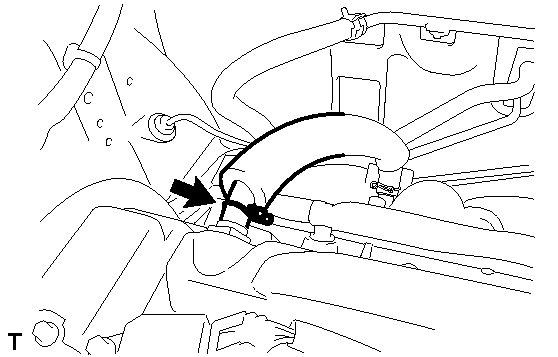

    Fig 1: Identifying Ventilation Hose Clamp
    GTY160880Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the ventilation hose.
    2. Disconnect the union to check valve hose.

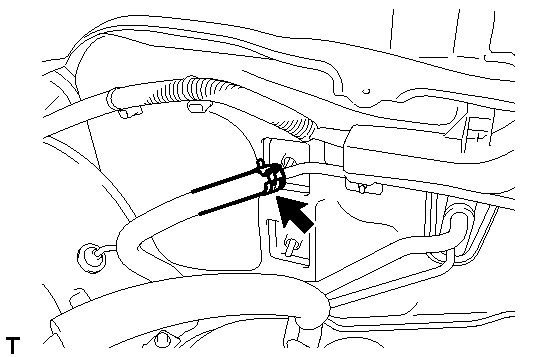

      Fig 2: Identifying Check Valve Hose Clamp
      GTY160881Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Separate the wire harness clamp from the intake manifold.
    4. Remove the 5 bolts, 2 nuts and intake manifold.

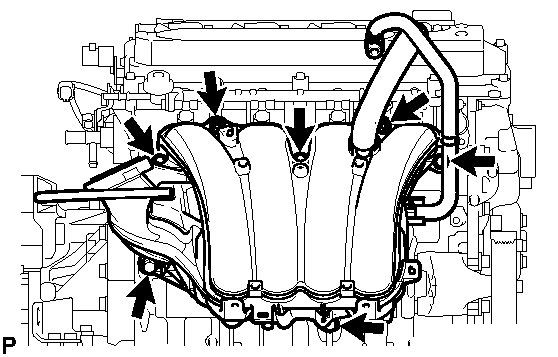

      Fig 3: Identifying Intake Manifold Bolts And Nuts
      GTY312452Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the intake manifold gasket.

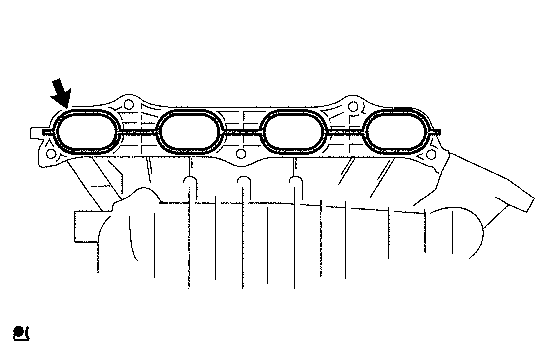

      Fig 4: Identifying Intake Manifold Gasket
      GTY161847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE NO. 1 INTAKE MANIFOLD INSULATOR

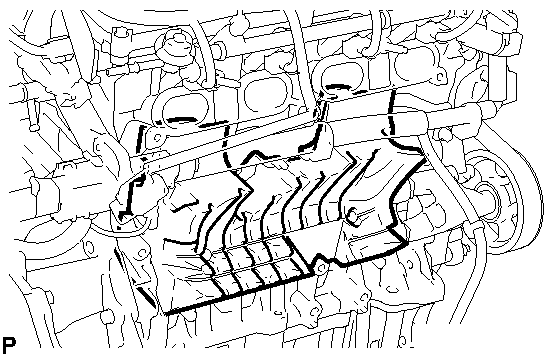

    Fig 5: Identifying Intake Manifold Insulator
    GTY160882Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the No. 1 intake manifold insulator.
  18. REMOVE KNOCK SENSOR

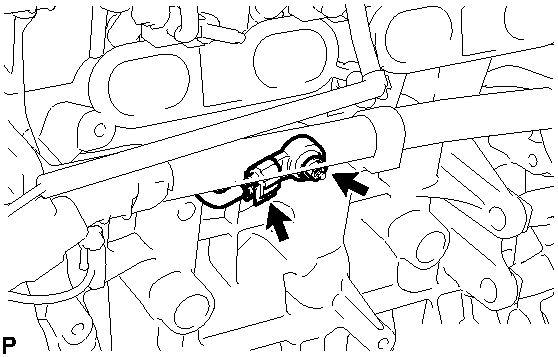

    Fig 6: Identifying Knock Sensor Connector And Nut
    GTY165737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the sensor connector.
    2. Remove the nut and knock sensor.
