2010 Scion xB AutomaticFACTORY OEM SERVICE PROCEDURE

Camshaft Oil Control Valve: Removal: Removal

REMOVE WINDSHIELD WIPER ARM COVER . Refer to REMOVAL - Step 1
REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH . Refer to REMOVAL - Step 2
REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH . Refer to REMOVAL - Step 3
REMOVE HOOD TO COWL TOP SEAL . Refer to REMOVAL - Step 4
REMOVE COWL TOP VENTILATOR LOUVER RH . Refer to REMOVAL - Step 5
REMOVE COWL TOP VENTILATOR LOUVER LH . Refer to REMOVAL - Step 6
REMOVE FRONT WIPER MOTOR AND LINK . Refer to REMOVAL - Step 7
REMOVE OUTER COWL TOP PANEL

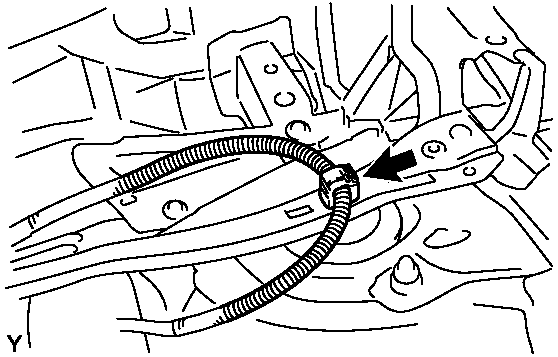

Fig 1: View Of Wire Harness
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Separate the wire harness.
2. Remove the 10 bolts and remove the cowl top panel outer.

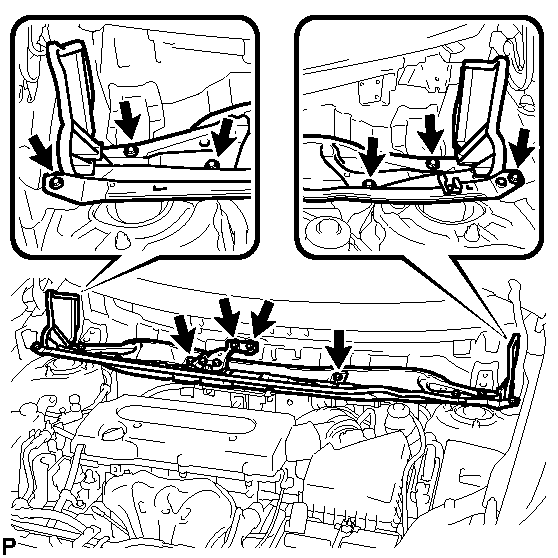

  Fig 2: View Of Bolts And Outer Cowl Top Panel
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY See step 2
REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY

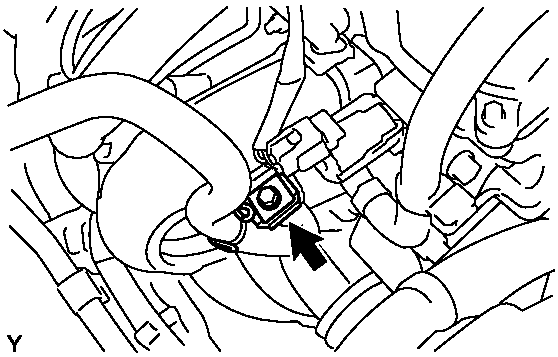

Fig 3: View Of Vacuum Hose Clamp
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Remove the bolt and remove the vacuum hose clamp.
2. Disconnect the oil control valve connector.

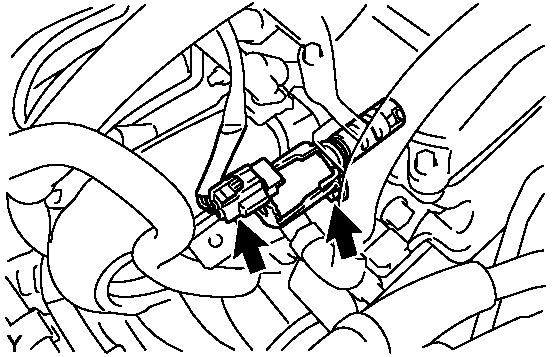

  Fig 4: View Of Camshaft Timing Oil Control Valve Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the bolt and oil control valve.
