2010 Scion tC AutomaticFACTORY OEM SERVICE PROCEDURE

On-Vehicle Inspection

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

  2. INSPECT CIRCUIT OPENING RELAY
    1. Measure the resistance between the terminals.

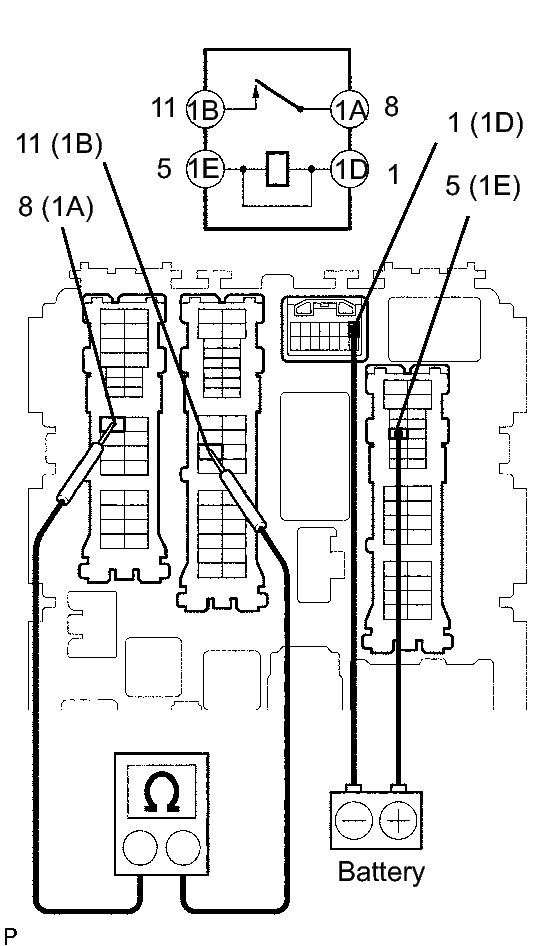

      Fig 1: Identifying Resistance Between Terminals
      GTY161659Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance

      Tester Connection Specified Condition
      1B (11) - 1A (8) 10 kΩ or higher
      1B (11) - 1A(8) Below 1 Ω
      (when battery voltage is applied to terminals 1E (5) and 1D (1))

      If the result is not as specified, replace the instrument panel junction block.

  3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  4. PERFORM INITIALIZATION
    1. Perform initialization. Refer to INITIALIZATION .
      NOTE:

      Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery
