Terminals Of Ecu

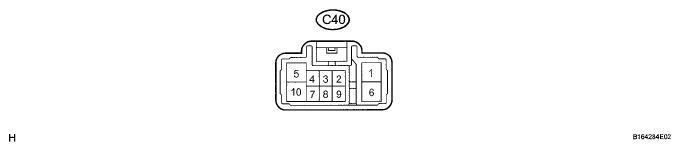

- CHECK HEATER CONTROL
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Measure the voltage and resistance according to the value(s) in the table below.
Standard voltage:
TERMINALS VOLTAGE REFERENCETerminal No. (Symbols) Wiring Color Terminal Description Condition Specified Condition C40-2 (RDEF) - C40-5 (E) B - W-B Rear defogger signal Ignition switch ON, Rear defogger switch OFF 11 to 14 V Ignition switch ON, Rear defogger switch ON Below 1 V C40-3 (IG+) - C40-5 (E) Y - W-B Power source Ignition switch ON 11 to 14 V Ignition switch OFF Below 1 V Standard resistance:
TERMINALS RESISTANCE REFERENCETerminal No. (Symbols) Wiring Color Terminal Description Condition Specified Condition C40-5 (E) - Body ground W-B - Body ground Ground Always Below 1 Ω If the result is not as specified, there may be a malfunction in the wire harness.
- Measure the voltage and resistance according to the value(s) in the table below.

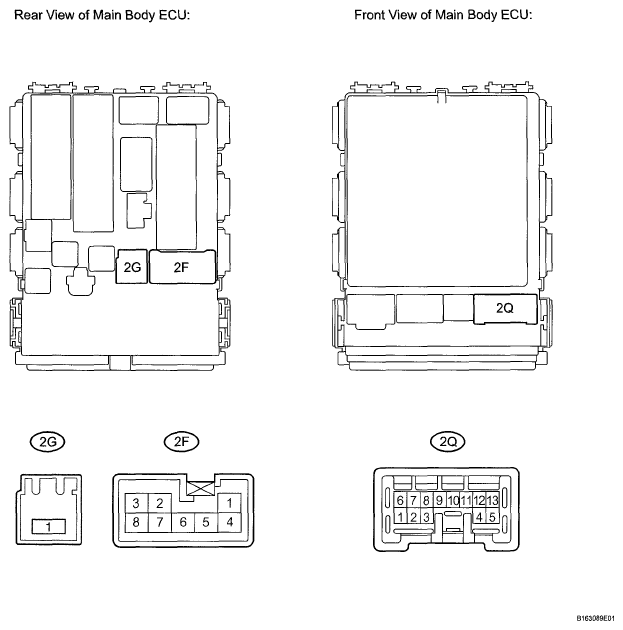

- CHECK MAIN BODY ECU
- Measure the voltage according to the value(s) in the table below.
Standard voltage:
TERMINALS VOLTAGE REFERENCETerminal No. (Symbols) Wiring Color Terminal Description Condition Specified Condition 2G-1 - Body ground W - Body ground Power source Always 11 to 14 V 2Q-12 - Body ground B - Body ground DEF Relay operation signal Ignition switch ON, Rear defogger switch OFF 11 to 14 V Ignition switch ON, Rear defogger switch ON Below 1 V 2F-2 - Body ground B - Body ground Defogger wire operation signal Ignition switch ON, Rear defogger switch OFF Below 1 V Ignition switch ON, Rear defogger switch ON 11 to 14 V If the result is not as specified, there may be a malfunction in the wire harness or main body ECU.
- Measure the voltage according to the value(s) in the table below.
