INSTALL KNOCK SENSOR
1. Install the sensor with the nut.
  Torque: 20 N*m (205 kgf*cm, 15 ft.*lbf)

  NOTE: Make sure that the knock sensor is in the correct direction.
2. Connect the sensor connector.
Fig 1: Locating Nut And Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INTAKE MANIFOLD INSULATOR
1. Install the intake manifold insulator onto the cylinder block.
Fig 2: Locating Intake Manifold Insulator
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INTAKE MANIFOLD
1. Install a new gasket into the intake manifold.

  Fig 3: Identifying New Gasket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the intake manifold with the 5 bolts and 2 nuts.
  Torque: 30 N*m (305 kgf*cm, 22 ft.*lbf)
3. Fit the union to check valve hose into the vacuum hose clamp.
4. Install the wire harness clamp.
5. Connect the camshaft timing oil control valve connector.

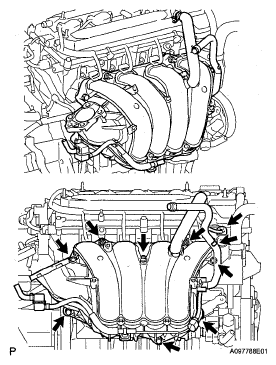

  Fig 4: Locating Bolts, Nuts And Intake Manifold
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Connect the union to check valve hose to the brake booster.
  NOTE: Make sure that the paint mark and hose clamp are at the correct angle.
