2008 Scion xD AutomaticFACTORY OEM SERVICE PROCEDURE

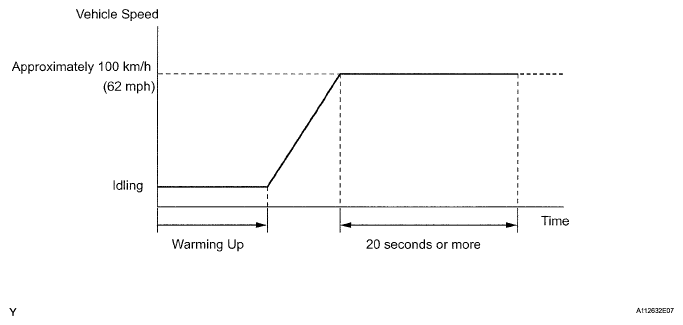

Confirmation Driving Pattern
HINT:
Performing this confirmation pattern will activate the mass air flow performance monitor.
- Connect a Techstream to the DLC3.
- Turn the ignition switch to ON.
- Turn the tester ON.
- Clear DTCs (See DTC CHECK / CLEAR ).
- Start the engine, and warm it up until the engine coolant temperature reaches 70°C (158°F) or higher.
- Drive the vehicle at approximately 100 km/h (62 mph) for 20 seconds or more.
- Select the following menu items: Powertrain / Engine and ECT / Trouble Codes / Pending; then check if any DTCs (any pending DTCs) are set.
