Engine Coolant Temperature Sensor: Inspection

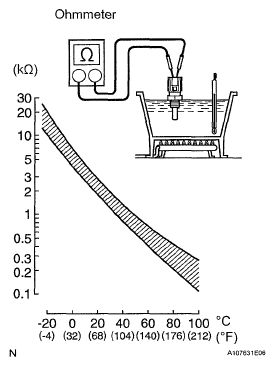

- INSPECT ENGINE COOLANT TEMPERATURE SENSOR
- Measure the resistance according to the value(s) in the table below.
Standard resistance
RESISTANCE SPECIFICATIONCondition Specified Condition Approximately 20°C (68°F) 2.32 k to 2.59 kΩ Approximately 80°C (176°F) 0.310 k to 0.326 kΩ NOTE: When checking the engine coolant temperature sensor in water, keep the terminals dry. After the check, wipe the sensor dry.If the resistance is not as specified, replace the engine coolant temperature sensor.
- Measure the resistance according to the value(s) in the table below.
