Mass Air Flow Meter: Inspection
- INSPECT MASS AIR FLOW METER
- Measure the voltage to check the mass air flow sensor.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Apply battery voltage across terminals 1 (+B) and 2 (E2G).
- Using a voltmeter, connect the positive (+) tester probe to terminal 3 (VG), and negative (-) tester probe to terminal 2 (E2G).
- Blow air into the mass air flow meter, and then check that the voltage fluctuates.
If the voltage does not fluctuate, replace the mass air flow meter.

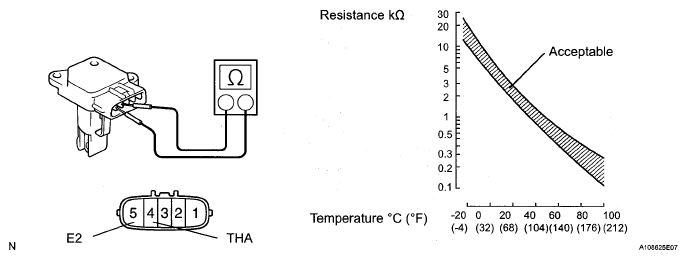

- Measure the resistance to check the intake air temperature sensor.
- Using an ohmmeter, measure the resistance between the terminals 4 (THA) and 5 (E2).
Standard resistance
RESISTANCE SPECIFIED CONDITIONSTester Connection Specified Condition 4 (THA) - 5 (E2) 13.6 to 18.4 kΩ at -20°C (-4°F) 4 (THA) - 5 (E2) 2.21 to 2.69 kΩ at 20°C (68°F) 4 (THA) - 5 (E2) 0.493 to 0.667 kΩ at 60°C (140°F) If the result is not as specified, replace the mass air flow meter.
- Using an ohmmeter, measure the resistance between the terminals 4 (THA) and 5 (E2).
- Measure the voltage to check the mass air flow sensor.
