Throttle Position Sensor: Inspection
- INSPECT THROTTLE POSITION SENSOR

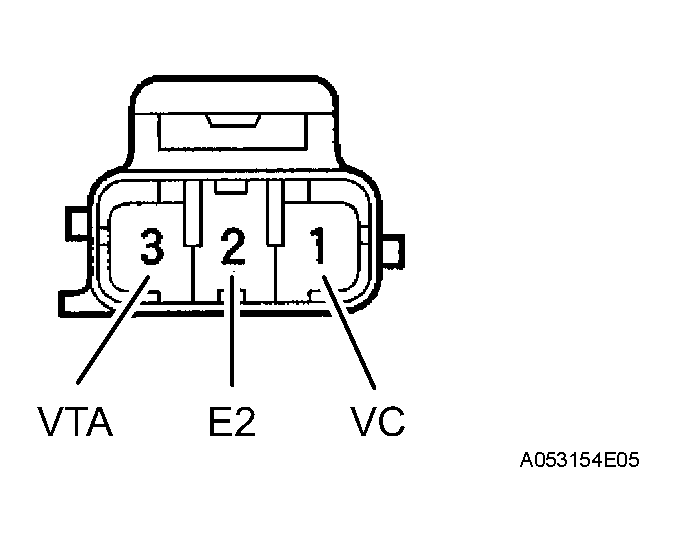

- Measure the resistance of the sensor.
Standard resistance
TESTER CONNECTION - SPECIFIED CONDITIONSTester Connection Throttle Valve Position Specified Condition 1 (VC) - 2 (E2) - 2.5 to 6.0 kΩ 3 (VTA) - 2 (E2) Fully closed 0.2 to 11.0 kΩ 3 (VTA) - 2 (E2) Fully open 2.0 to 16.0 kΩ If the resistance is not as specified, replace the throttle position sensor.
- Measure the resistance of the sensor.
