Knock Sensor: Installation

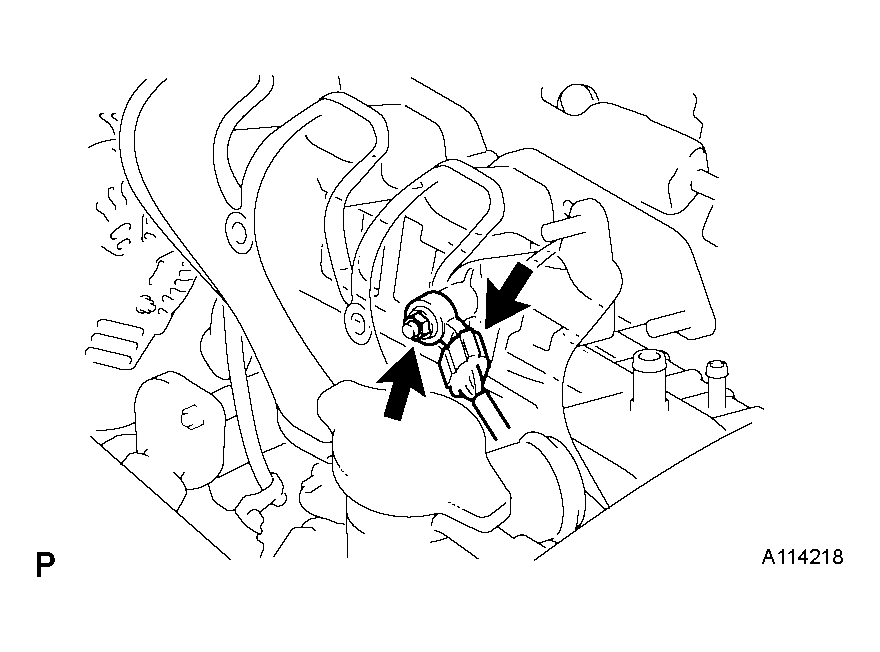

- INSTALL KNOCK SENSOR
- Install the knock sensor with the nut.
Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)
- Connect the sensor connector.
- Install the knock sensor with the nut.
- INSTALL STARTER ASSEMBLY (See INSTALLATION )
- INSTALL ENGINE UNDER COVER RH (See INSTALLATION )
- INSTALL ENGINE UNDER COVER LH (See INSTALLATION )
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
