2006 Scion xB AutomaticFACTORY OEM SERVICE PROCEDURE

Engine Coolant Temperature Sensor: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE AIR CLEANER ASSEMBLY (See  REMOVAL   )
  3. DISCONNECT ENGINE WIRE
    1. Disconnect the 2 clamps of the engine wire.

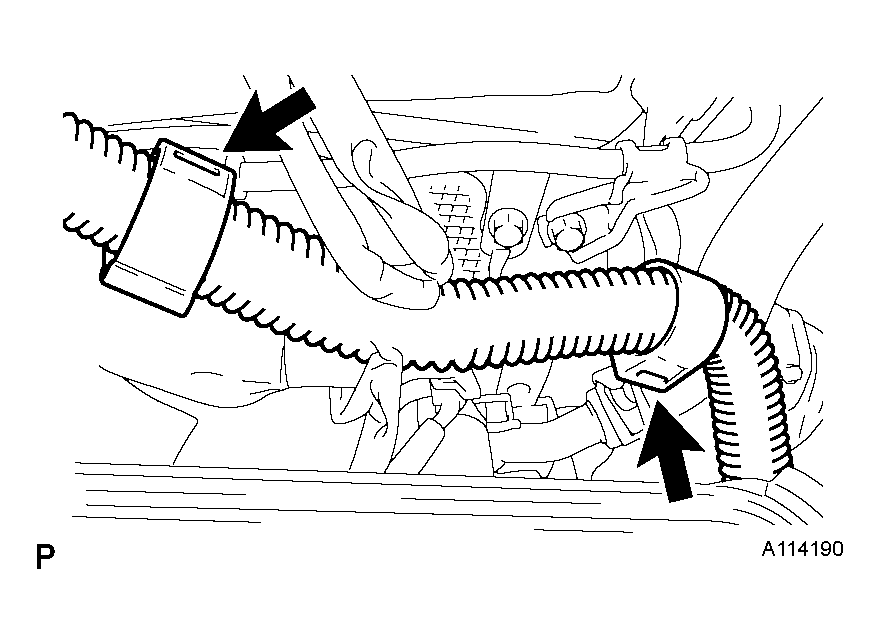

      Fig 1: Disconnecting 2 Clamps Of Engine Wire
      G04225735Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE ENGINE COOLANT TEMPERATURE SENSOR
    1. Disconnect the sensor connector.

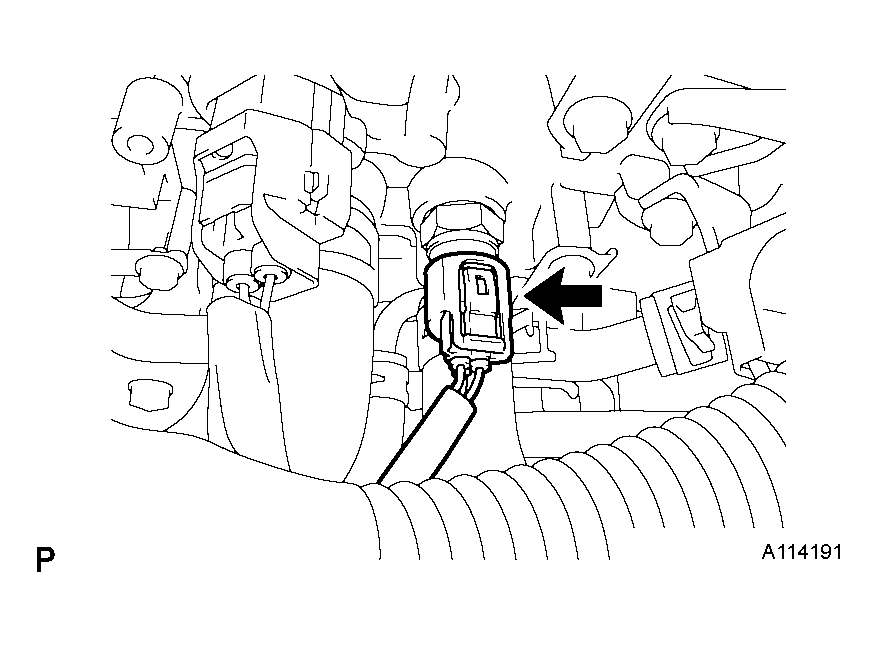

      Fig 2: Disconnecting Sensor Connector
      G04225736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the sensor and gasket.

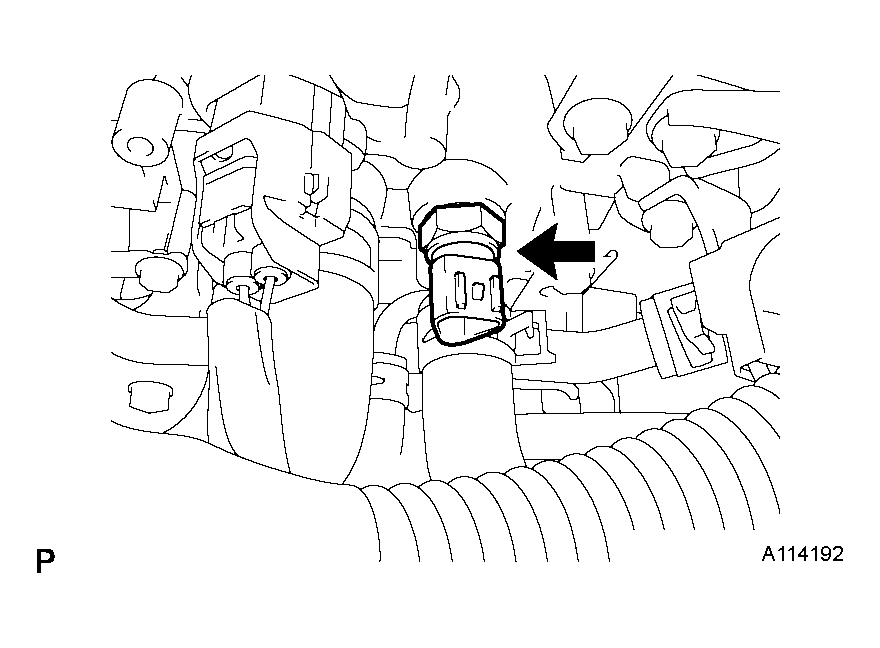

      Fig 3: Removing Sensor And Gasket
      G04225737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
