Camshaft Timing Oil Control Valve Assembly: Installation
- INSTALL CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY
- Apply a light coat of engine oil to a new O-ring.
- Install the O-ring to the oil control valve.
- Install the oil control valve with the bolt.
Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)
- Connect the oil control valve connector.

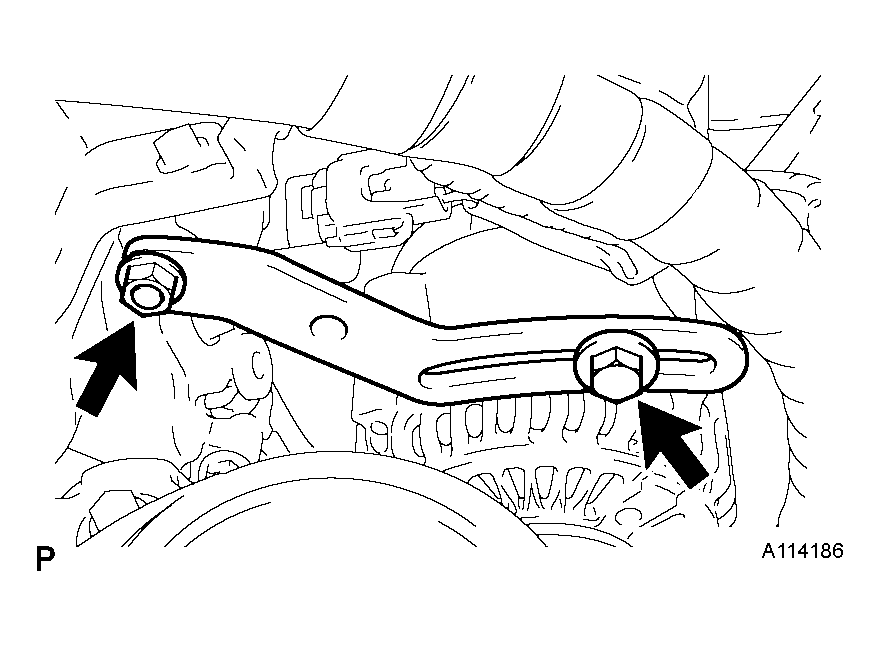

- INSTALL FAN BELT ADJUSTING BAR
- Temporarily install the adjusting bar with the bolt and nut.
- Adjust the drive belt tension (see INSTALLATION ).
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
