Camshaft Position Sensor: Installation
- INSTALL CAMSHAFT POSITION SENSOR

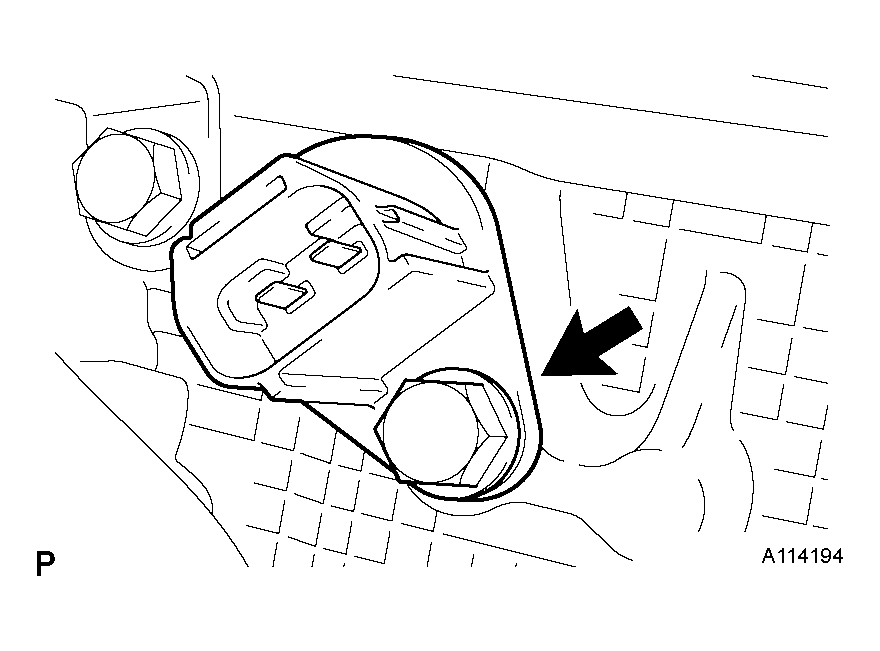

- Install the sensor with the bolt.
Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

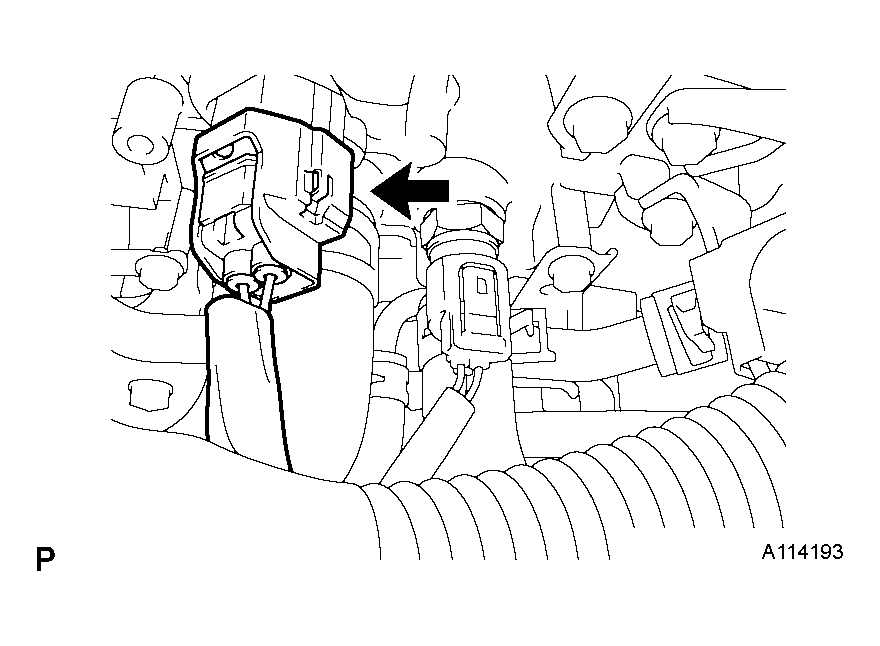

- Connect the sensor connector.
- Install the sensor with the bolt.
- CONNECT ENGINE WIRE

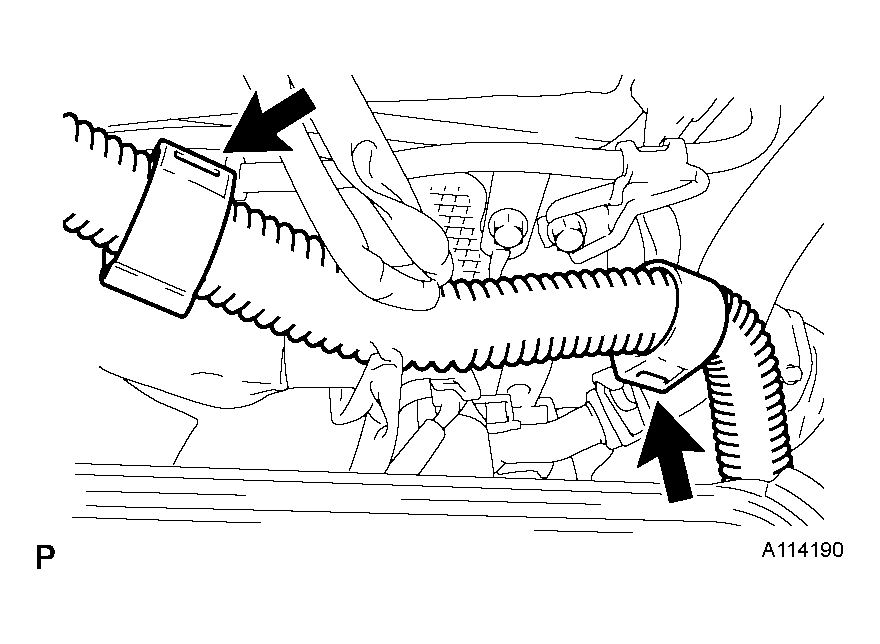

- Connect the 2 clamps of the engine wire.
- INSTALL AIR CLEANER ASSEMBLY (See INSTALLATION )
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
