Inspection Procedure

1. Turn the ignition switch ON.
2. Measure the voltage between the terminals of the ECM connectors.

   Standard voltage

   TESTER CONNECTION SPECIFIED CONDITION CHART



   Tester Connection	Specified Condition
   +B (E6-1) - E1 (E3-3)	9 to 14 V

OK : PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

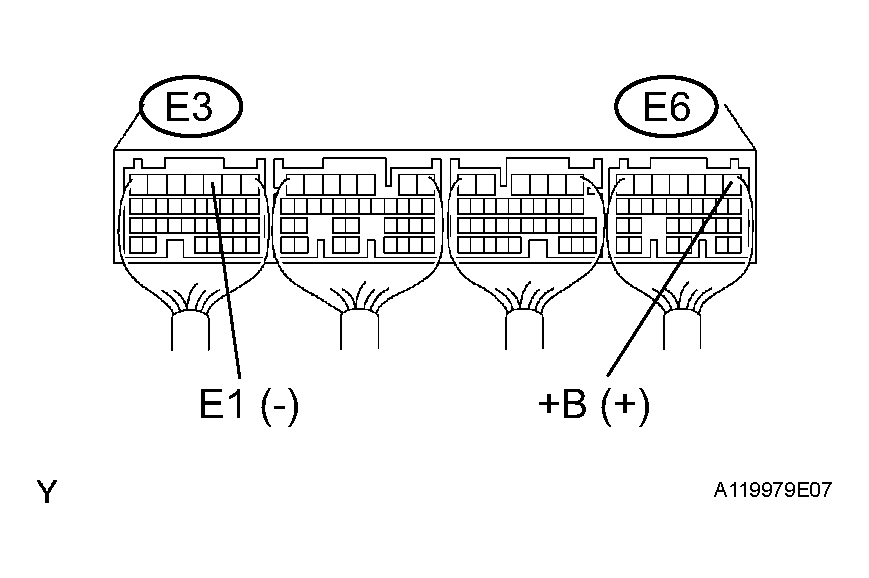

Fig 1: Inspecting ECM (+B Voltage)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG : GO TO NEXT STEP

1. Disconnect the negative (-) battery cable.
2. Disconnect the E3 ECM connector.
3. Measure the resistance of the wire harness side connector.

   Standard resistance (Check for open)

   TESTER CONNECTION SPECIFIED CONDITION CHART



   Tester Connection	Specified Condition
   E1 (E3-3) - Body ground	Below 1 Ω

NG : REPAIR OR REPLACE HARNESS OR CONNECTOR

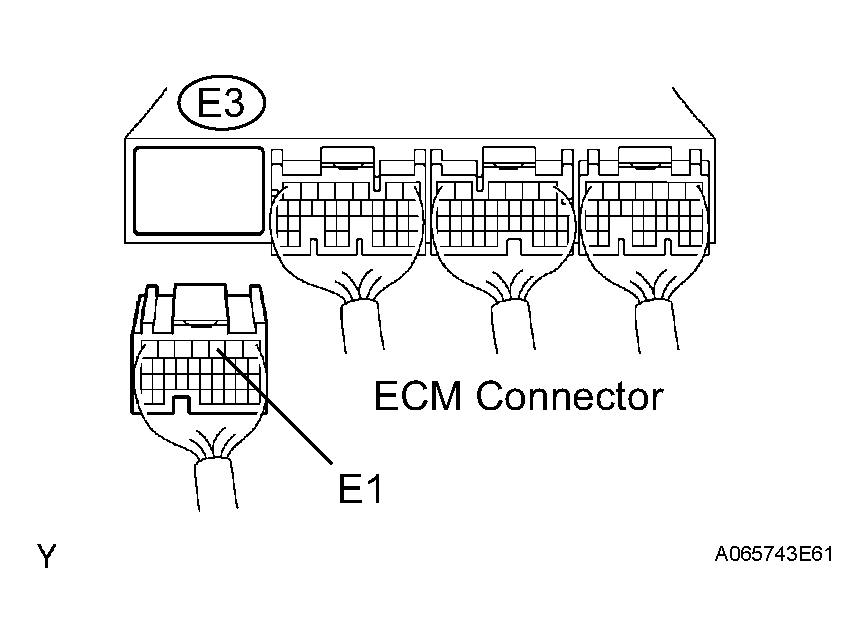

Fig 2: Disconnecting E3 ECM Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : GO TO NEXT STEP

1. Turn the ignition switch ON.
2. Measure the voltage of the ECM connectors.

   Standard voltage

   TESTER CONNECTION SPECIFIED CONDITION CHART



   Tester Connection	Specified Condition
   IGSW (E6-9) - E1 (E3-3)	9 to 14 V

OK : Go to step   6

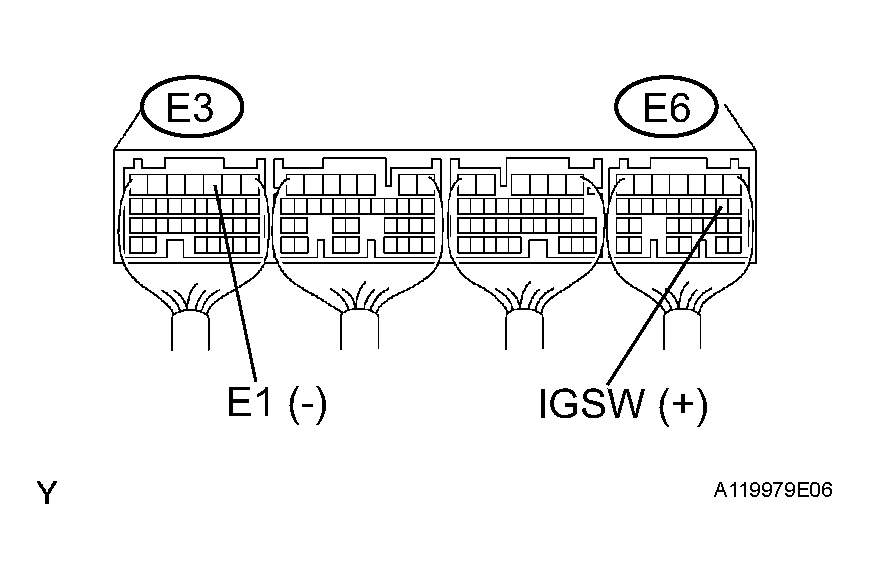

Fig 3: Inspecting ECM (IGSW Voltage)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG : GO TO NEXT STEP

1. Remove the AM2 fuse from the engine room relay block.
2. Measure the resistance of the AM2 fuse.

   Standard resistance: Below 1 Ω

NG : CHECK FOR SHORT IN ALL HARNESSES AND COMPONENTS CONNECTED TO FUSE

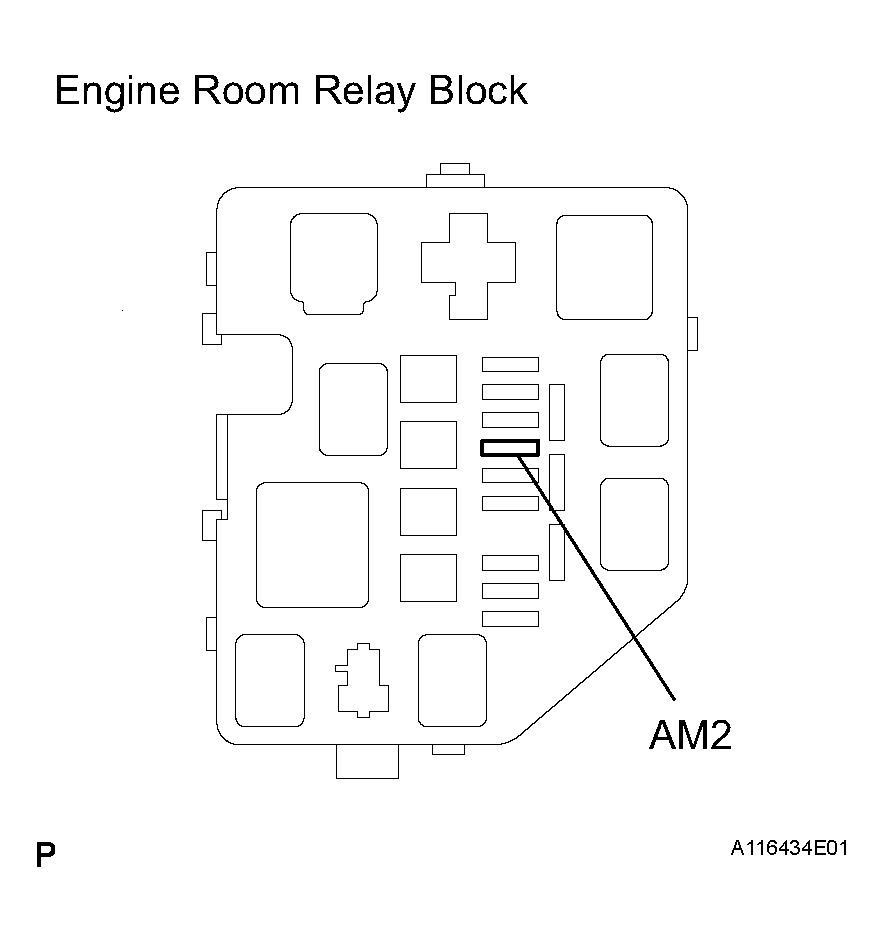

Fig 4: Removing AM2 Fuse From Engine Room Relay Block

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : GO TO NEXT STEP

1. Disconnect the I10 ignition switch connector.
2. Measure the resistance of the ignition switch.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION CHART



   Ignition Switch Position	Tester Connection	Specified Condition
   LOCK	All Terminals	10 kΩ or higher
   ON	AM2 (5) - IG2 (6)	Below 1 Ω

NG : REPLACE IGNITION SWITCH ASSEMBLY

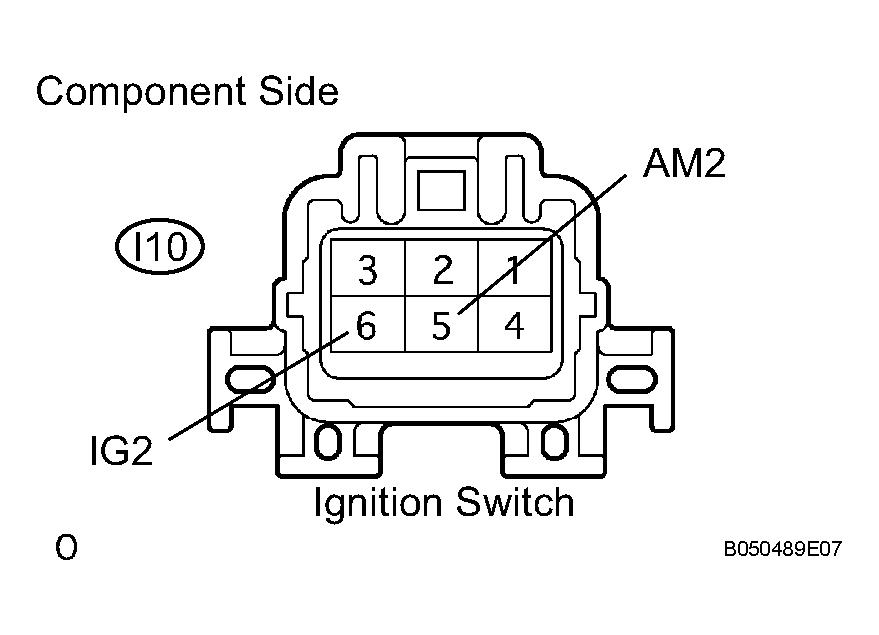

Fig 5: Disconnecting I10 Ignition Switch Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : CHECK HARNESS OR CONNECTOR (BATTERY - IGNITION SWITCH, IGNITION SWITCH - ECM)

1. Turn the ignition switch ON.
2. Measure the voltage of the ECM connectors.

   Standard voltage

   TESTER CONNECTION SPECIFIED CONDITION CHART



   Tester Connection	Specified Condition
   MREL (E6-8) - E1 (E3-3)	9 to 14 V

NG : REPLACE ECM

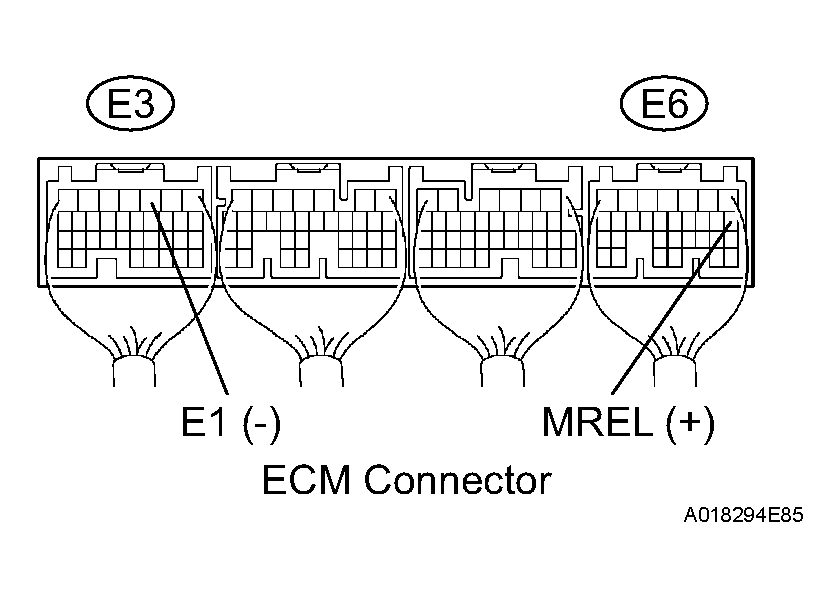

Fig 6: Inspecting ECM (MREL Voltage)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : GO TO NEXT STEP

1. Remove the EFI fuse from the engine room relay block.
2. Measure the resistance of the EFI fuse.

   Standard resistance: Below 1 Ω

NG : CHECK FOR SHORT IN ALL HARNESSES AND COMPONENTS CONNECTED TO FUSE

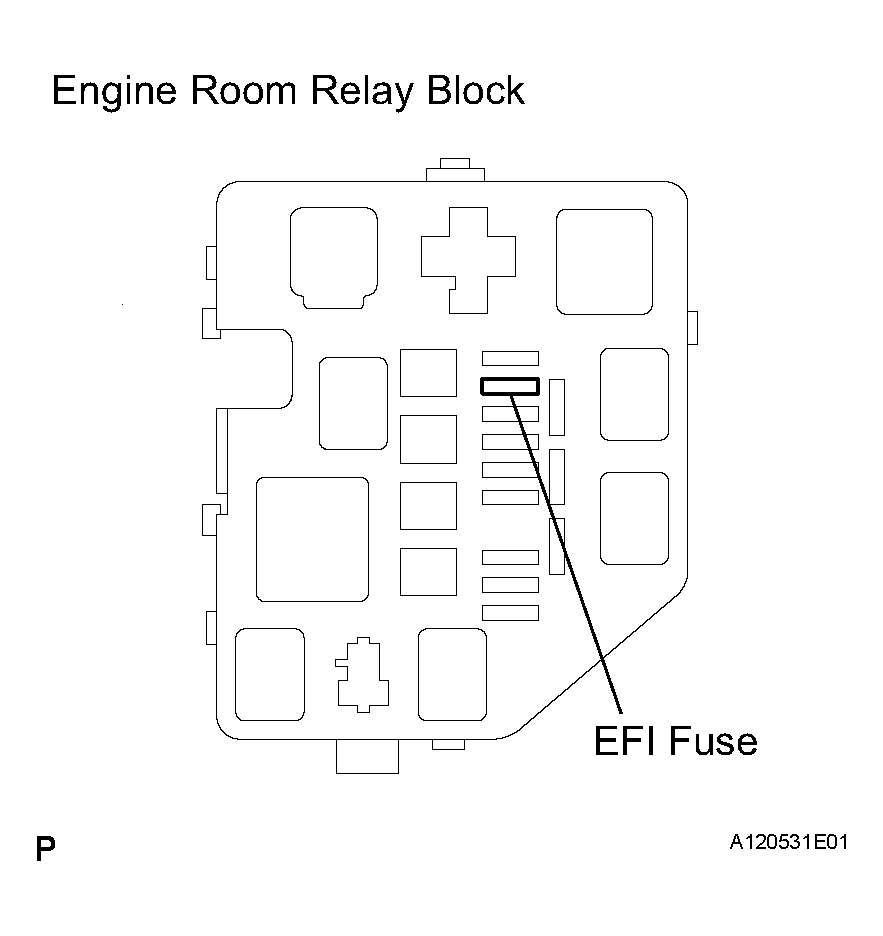

Fig 7: Removing EFI Fuse From Engine Room Relay Block

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : GO TO NEXT STEP

1. Remove the EFI relay from the engine room relay block.
2. Measure the resistance of the EFI fuse.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION CHART



   Tester Connection	Specified Condition
   3 - 5	10 kΩ or higher
   3 - 5	Below 1 Ω (When battery voltage is applied to terminals 1 and 2)

NG : REPLACE EFI RELAY

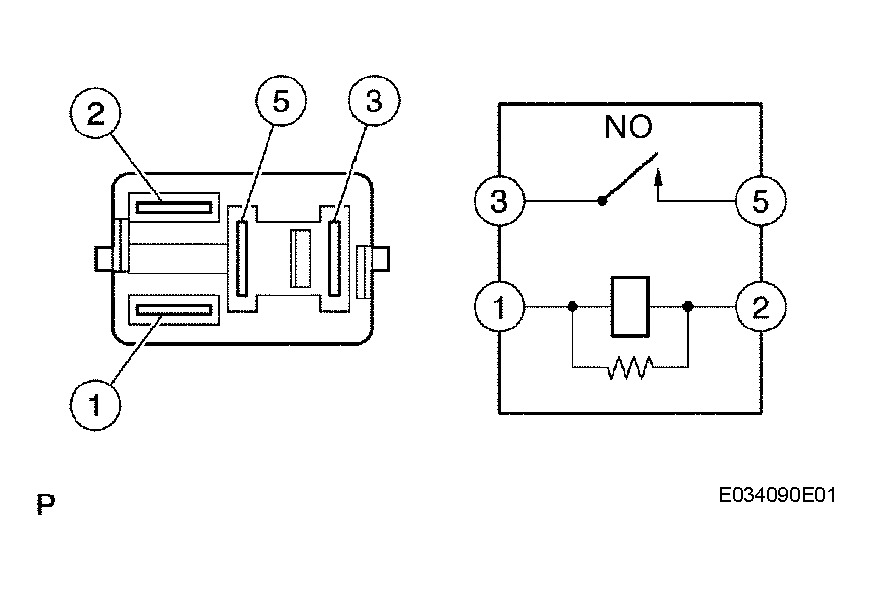

Fig 8: Inspecting EFI Relay

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : GO TO NEXT STEP

1. Check the harness and connector between the EFI relay and ECM.
   1. Remove the EFI relay from the engine room relay block.

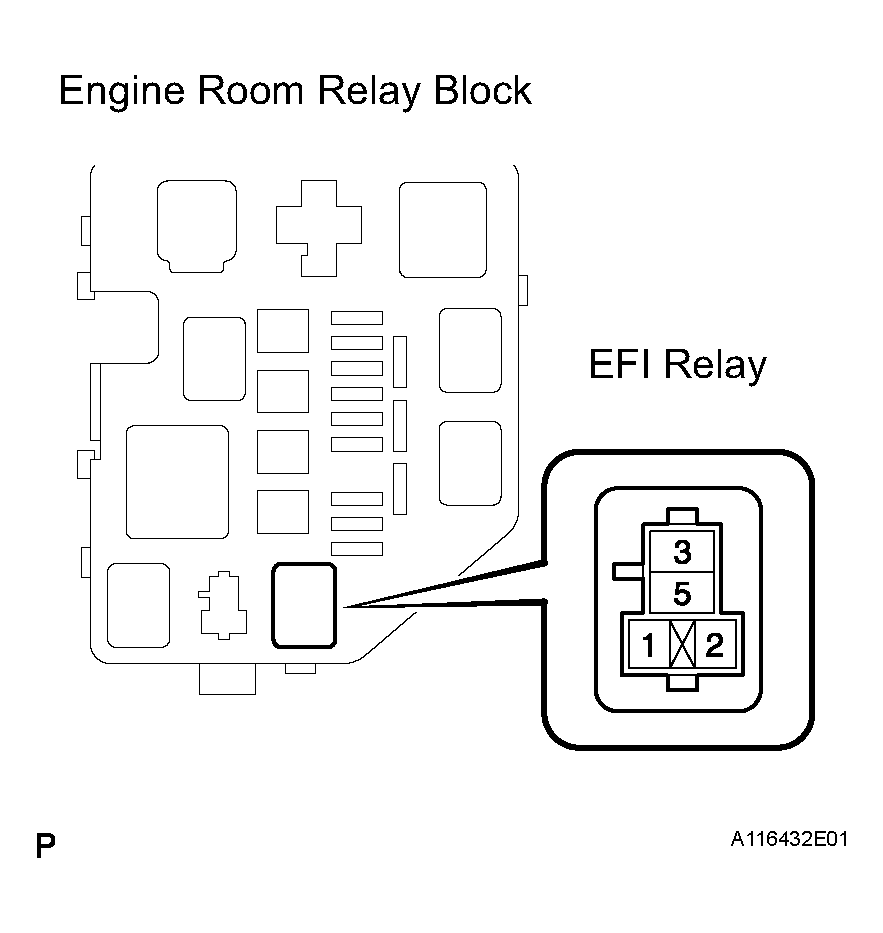

      Fig 9: Identifying EFI Relay And ECM Connector Terminals

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Disconnect the E6 ECM connector.
   3. Measure the resistance of the wire harness side connectors.

      Standard resistance (Check for open)

      TESTER CONNECTION SPECIFIED CONDITION CHART



      Tester Connections	Specified Conditions
      Engine room relay block (EFI relay terminal 2) - MREL (E6-8)	Below 1 Ω
      Engine room relay block (EFI relay terminal 3) - +B (E6-1)	Below 1 Ω

      Standard resistance (Check for short)

      TESTER CONNECTION SPECIFIED CONDITION CHART



      Tester Connections	Specified Conditions
      Engine room relay block (EFI relay terminal 2) or MREL (E6-8) - Body ground	10 kΩ or higher
      Engine room relay block (EFI relay terminal 3) or +B (E6-1) - Body ground	10 kΩ or higher

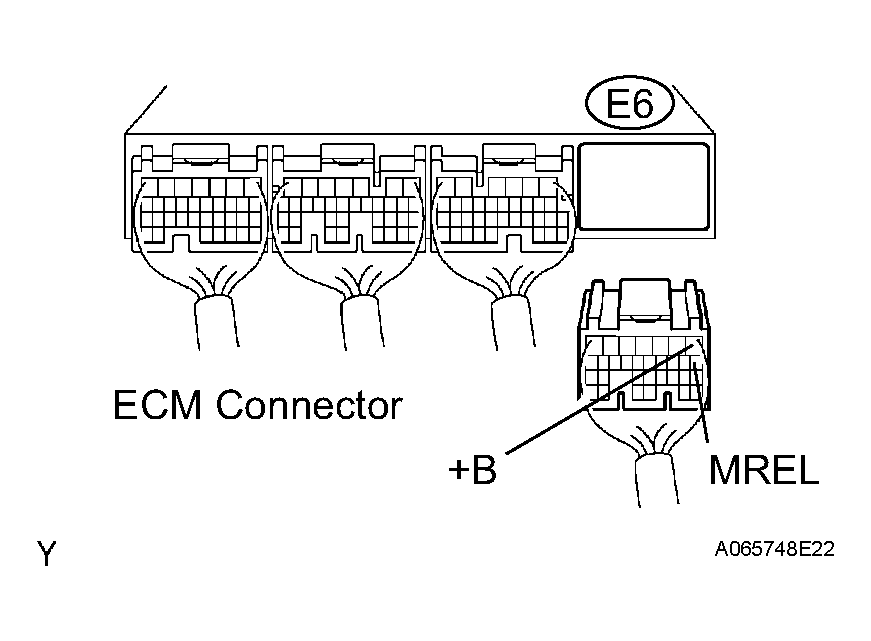

      Fig 10: Disconnecting E6 ECM Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check the harness and connector between the EFI relay and body ground.
   1. Remove the EFI relay from the engine room relay block.
   2. Measure the resistance of the wire harness side connector.

      Standard resistance (Check for open)

      TESTER CONNECTION SPECIFIED CONDITION CHART



      Tester Connection	Specified condition
      Engine room relay block (EFI relay terminal 1) - Body ground	Below 1 Ω

NG : REPAIR OR REPLACE HARNESS OR CONNECTOR

OK : CHECK AND REPLACE HARNESS OR CONNECTOR (TERMINAL 5 OF EFI RELAY - BATTERY POSITIVE TERMINAL)
