2006 Scion xA AutomaticFACTORY OEM SERVICE PROCEDURE
Knock Sensor: Removal
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
- REMOVE ENGINE UNDER COVER LH (See REMOVAL )
- REMOVE ENGINE UNDER COVER RH (See REMOVAL )
- REMOVE STARTER ASSEMBLY (See REMOVAL )

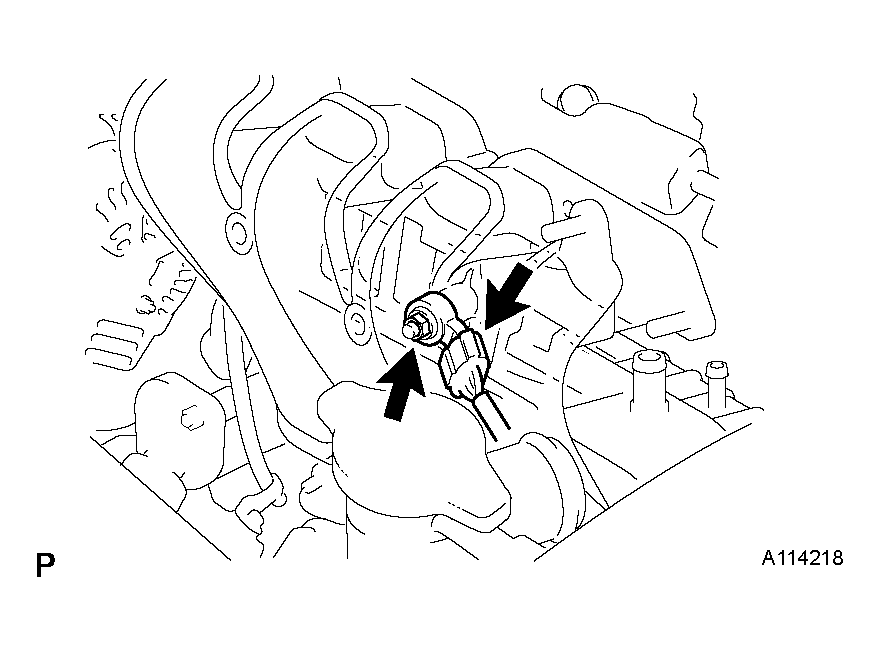

- REMOVE KNOCK SENSOR
- Disconnect the sensor connector.
- Remove the nut and sensor.
