2006 Scion xA AutomaticFACTORY OEM SERVICE PROCEDURE

Camshaft Position Sensor: Inspection

INSPECT CAMSHAFT POSITION SENSOR

Measure the resistance of the sensor.

Standard resistance

TESTER CONNECTION SPECIFIED CONDITION CHART

Tester Connection	Condition	Specified Condition
1 - 2	Cold	1.630 to 2.740 Ω
1 - 2	Hot	2.065 to 3.225 Ω

If the result is not as specified, replace the camshaft position sensor.

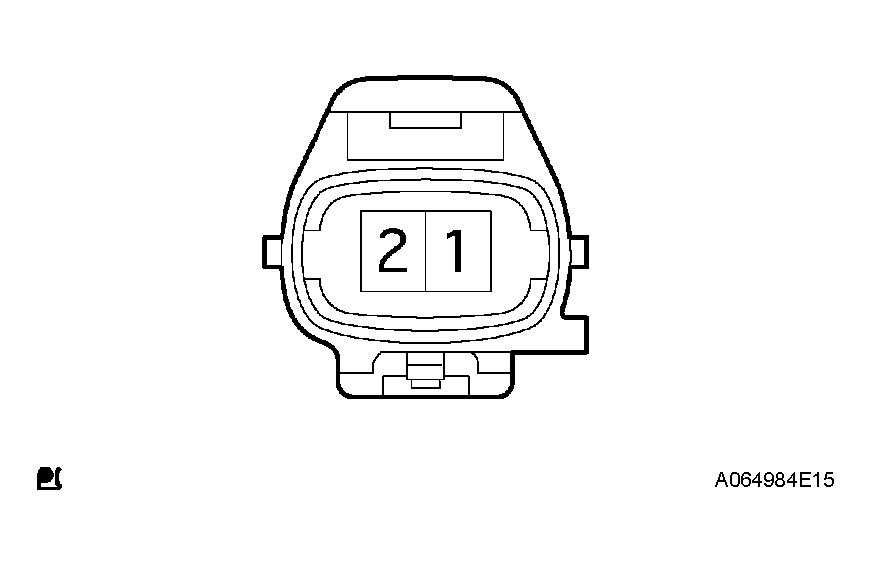

Fig 1: Identifying Camshaft Position Sensor Connector Terminals
