On-Vehicle Inspection

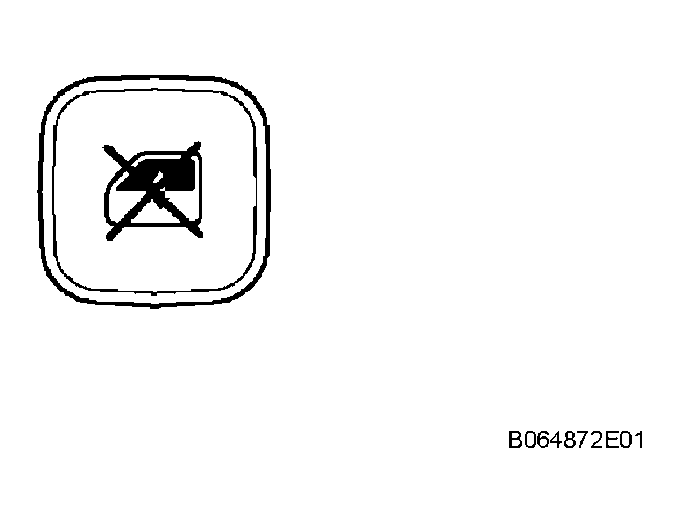

- CHECK POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY (WINDOW LOCK SWITCH)
- Check that operation of the power windows except the driver side power window is disabled when the window lock switch of the power window regulator master switch is pressed.
- Check that the power windows can operate when the window lock switch is pressed again.
- CHECK MANUAL UP / DOWN FUNCTION
- Check that the AUTO switch of the master switch can operate the driver side power window as follows:
OK:
MASTER SWITCH OPERATION DESCRIPTIONCondition Master Switch Switch Operation Power Window Ignition switch ON Driver side Pulled up UP (closes) Ignition switch ON Driver side Pushed halfway down DOWN (opens) - Check that each regulator switch can operate each power window as follows:
OK:
REGULATOR SWITCH OPERATION DESCRIPTIONCondition Regulator Switch Switch Operation Power Window - Ignition switch ON
- Window lock switch OFF
Passenger side Pulled up UP (closes) - Ignition switch ON
- Window lock switch OFF
Passenger side Pushed down DOWN (opens) - Ignition switch ON
- Window lock switch OFF
Rear LH Pulled up UP (closes) - Ignition switch ON
- Window lock switch OFF
Rear LH Pushed down DOWN (opens) - Ignition switch ON
- Window lock switch OFF
Rear RH Pulled up UP (closes) - Ignition switch ON
- Window lock switch OFF
Rear RH Pushed down DOWN (opens)
- Check that the AUTO switch of the master switch can operate the driver side power window as follows:
- CHECK AUTO DOWN FUNCTION
- CHECK REMOTE UP / DOWN FUNCTION
- Check that the power window regulator master switch can operate the power windows besides the driver side power window as follows:
OK:
MASTER SWITCH OPERATION DESCRIPTIONCondition Master Switch Switch Operation Power Window - Ignition switch ON
- Window lock switch OFF
Passenger side Pulled up UP (closes) - Ignition switch ON
- Window lock switch OFF
Passenger side Pushed down DOWN (opens) - Ignition switch ON
- Window lock switch OFF
Rear LH Pulled up UP (closes) - Ignition switch ON
- Window lock switch OFF
Rear LH Pushed down DOWN (opens) - Ignition switch ON
- Window lock switch OFF
Rear RH Pulled up UP (closes) - Ignition switch ON
- Window lock switch OFF
Rear RH Pushed down DOWN (opens)
- Check that the power window regulator master switch can operate the power windows besides the driver side power window as follows:
- CHECK PTC OPERATION
HINT:
PTC operation is a function that prevents overloading of the power window regulator by stopping the motor. PTC operation activates when the power window regulator switch is operated for a predetermined amount of time.
- Pull up and hold the power window regulator switch for more than 90 seconds. Then release the switch.
- Check that pressing the switch does not move the window.
- Wait until 60 seconds have passed since the switch was released in the first step. Check that pressing the switch results in normal window movement.
