Throttle Body: Installation
- INSTALL THROTTLE BODY

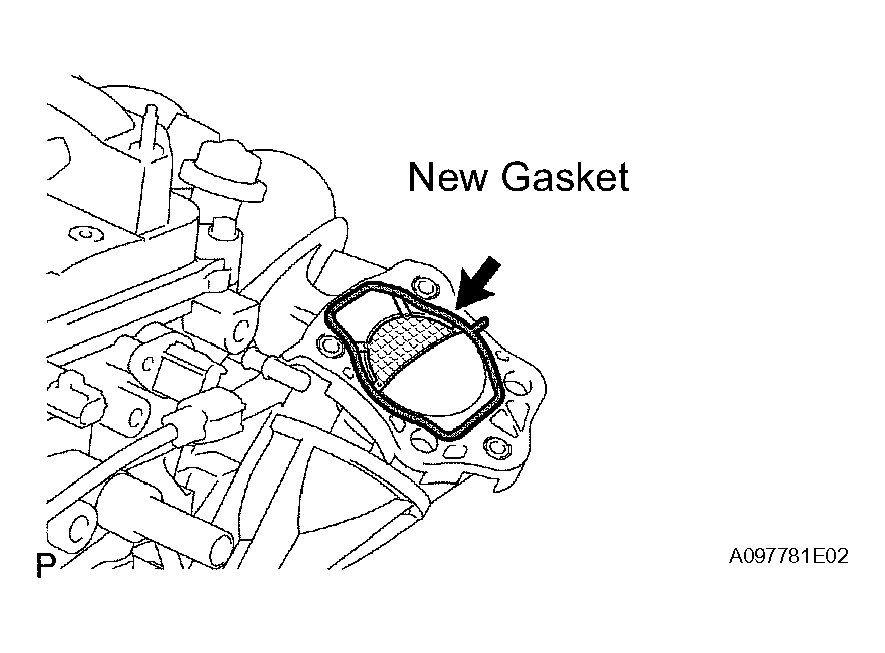

- Install a new gasket onto the intake manifold.

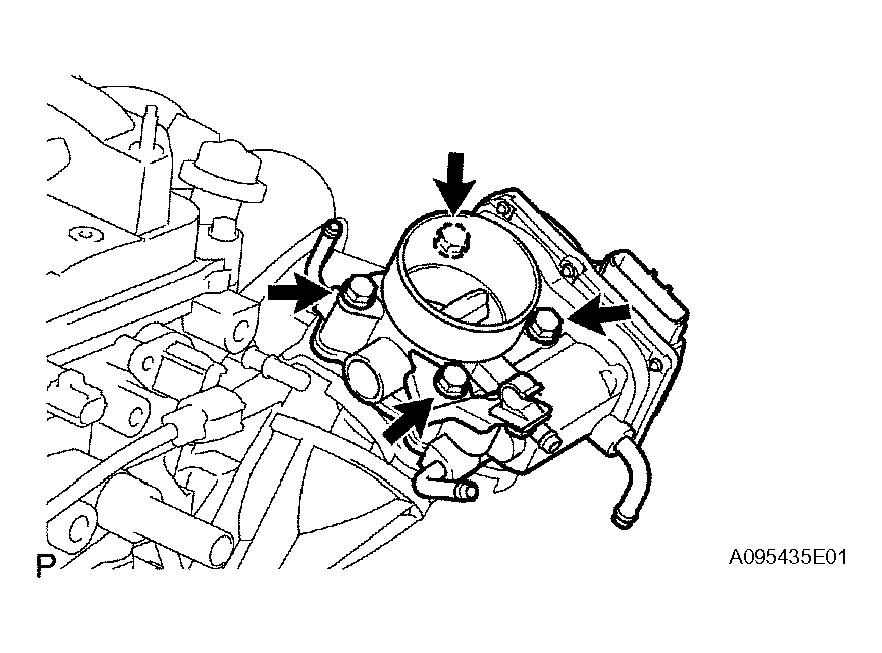

- Install the throttle body and fuel pipe clamp with the 4 bolts.
Torque: 30 N*m (305 kgf*cm, 22 in.*lbf)

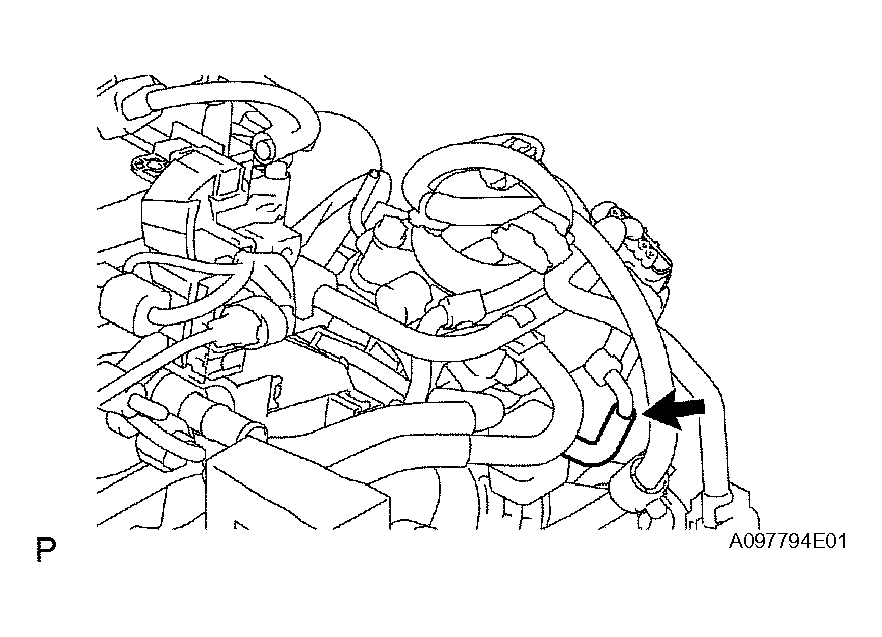

- Fit the fuel tube into the clamp.
- Install the wire harness clamp.

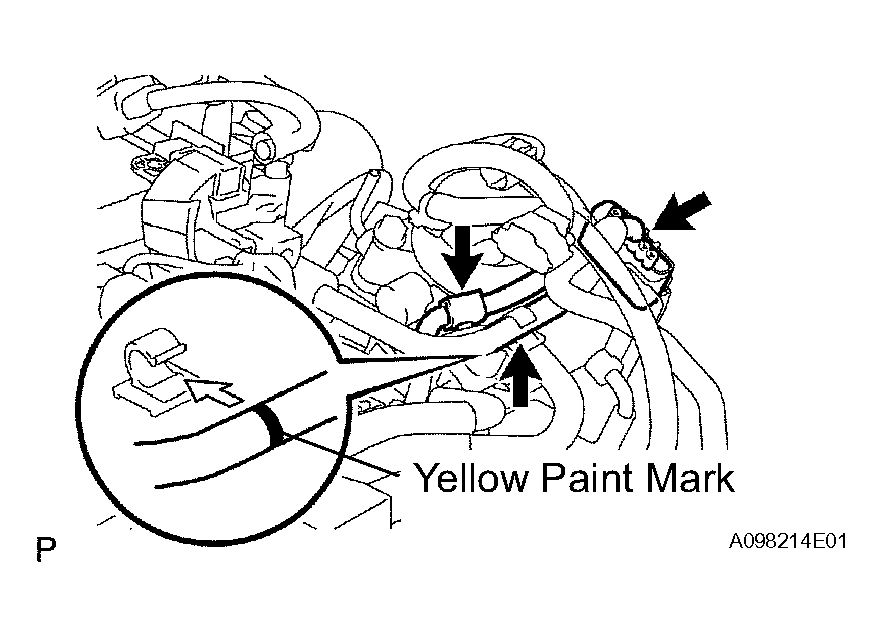

- Connect the throttle position sensor and control motor connector.
- Connect the No. 1 throttle body hose to the throttle body.
- Connect the No. 2 water by-pass hose to the throttle body.NOTE: Make sure that the paint mark and hose clamp are at the correct angle.
