Mass Air Flow Meter: Inspection
- INSPECT MASS AIR FLOW METER

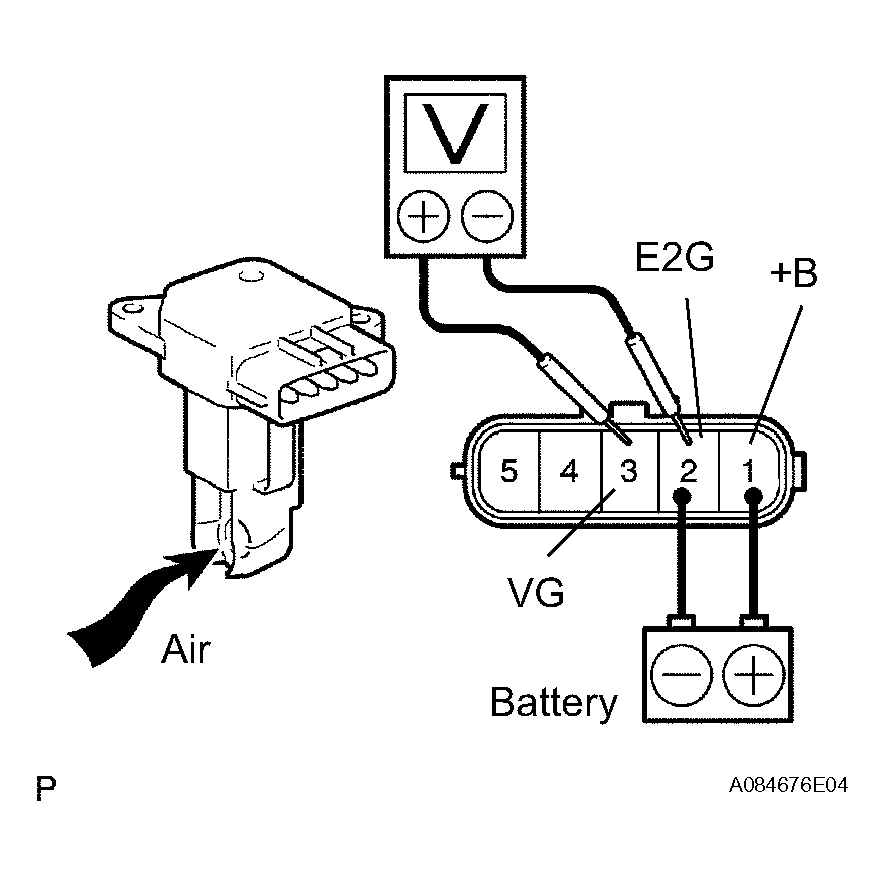

- Measure the voltage to check the mass air flow sensor.
- Apply battery voltage across terminals 1 (+B) and 2 (E2G).
- Using a voltmeter, connect the positive (+) tester probe to terminal 3 (VG), and negative (-) tester probe to terminal 2 (E2G).
- Blow air into the mass air flow meter, and then check that the voltage fluctuates.
If the voltage does not fluctuate, replace the mass air flow meter.
- Measure the resistance to check the intake air temperature sensor.
- Measure the voltage to check the mass air flow sensor.
