2006 Scion tC AutomaticFACTORY OEM SERVICE PROCEDURE

Knock Sensor: Removal

  1. DISCHARGE FUEL SYSTEM PRESSURE (See )
  2. DRAIN COOLANT (See  COOLANT  )
  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  4. REMOVE FRONT WIPER ARM HEAD CAP (See  REMOVAL  )
  5. REMOVE FRONT WIPER ARM LH (See  REMOVAL  )
  6. REMOVE FRONT WIPER ARM RH (See  REMOVAL  )
  7. REMOVE HOOD TO COWL TOP SEAL (See  REMOVAL  )
  8. REMOVE COWL TOP VENTILATOR LOUVER LH (See  REMOVAL  )
  9. REMOVE WIPER LINK (See  REMOVAL  )
  10. REMOVE COWL TOP PANEL OUTER
    1. Remove the wire harness clamp.

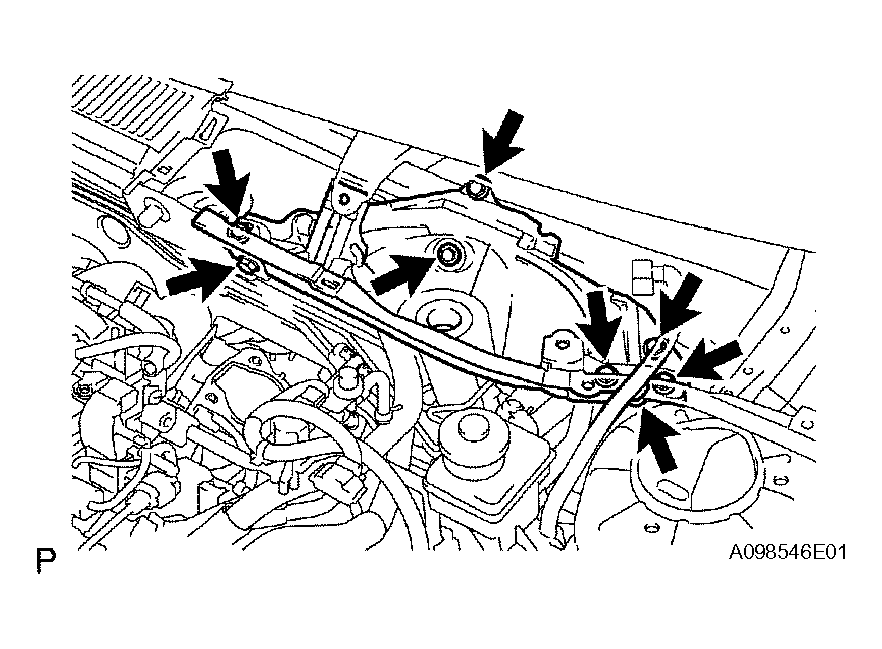

    2. Remove the 7 bolts and panel.
    Fig 1: Removing Bolts And Panel
    G04221383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE COWL BODY MOUNTING BRACKET LOWER LH

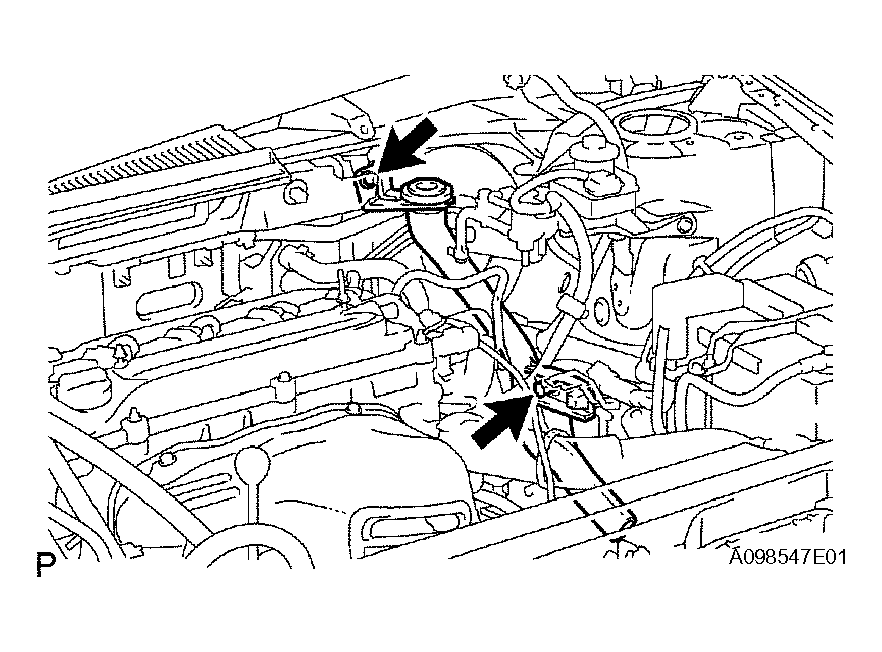

    1. Remove the bolt, clip and bracket.
  12. REMOVE ENGINE COVER (see  ON-VEHICLE INSPECTION  )
  13. REMOVE AIR CLEANER CAP (see  REMOVAL  )
  14. REMOVE THROTTLE BODY (see  REMOVAL  )
  15. REMOVE FUEL DELIVERY PIPE (See  REMOVAL  )
    Fig 2: Removing Bolt, Clip And Bracket
    G04221384Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE FUEL TUBE
    1. Remove the fuel tube clamp.

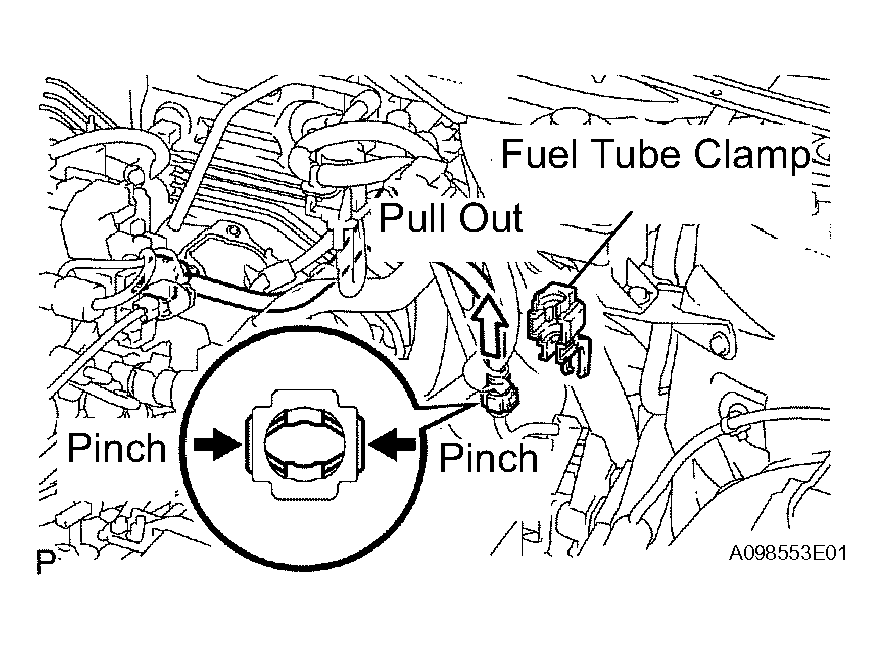

    2. Pinch the retainer as illustrated, and then pull the fuel tube connector out of the pipe.
    NOTE:
    • Remove any dirt and foreign objects on the fuel tube connector before performing this work.
      Fig 3: Removing Fuel Tube Clamp
      G04221385Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • When disconnecting the connector, do not damage the connector and pipe, and do not allow foreign matter to contact the connector and pipe. Damage or foreign matter may damage the O-ring that seals the pipe and lead to leaks.
    • Perform this work by hand. Do not use any tools.
    • Do not forcibly bend, twist or turn the nylon tube.
    • Protect the disconnected part by covering it with a plastic bag after disconnecting the fuel tube.
    • If the fuel tube connector and pipe are stuck, push and pull to release them.
