On-Vehicle Inspection
- REMOVE RELAY (Marking: IG1)
- Remove the IG1 relay from the instrument panel junction block.

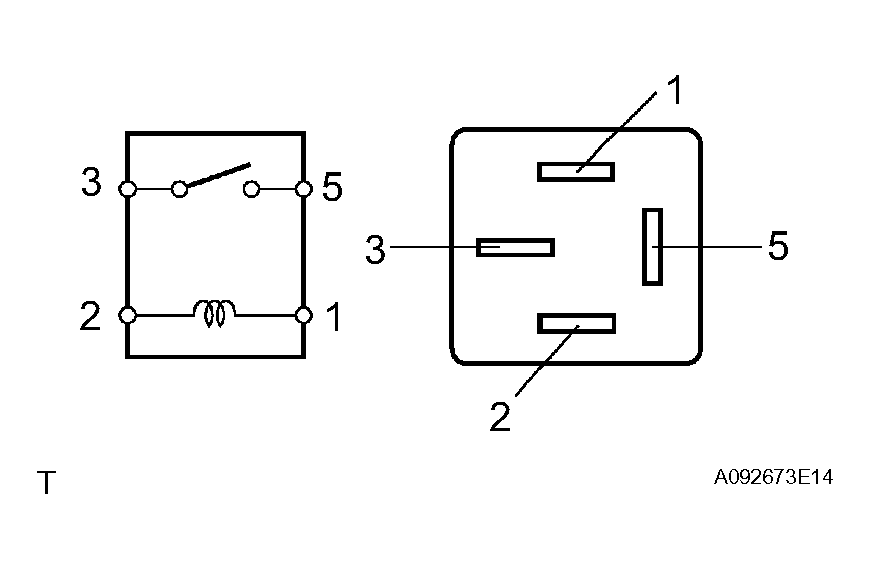

- INSPECT RELAY
- Measure the IG1 relay resistance.
Standard resistance
TESTER CONNECTION SPECIFIED CONDITION CHARTTester Connection Specified Condition 3 - 5 10 kΩ or higher 3 - 5 Below 1 Ω (when battery voltage is applied to terminals 1 and 2) If the result is not as specified, replace the relay.
- INSTALL RELAY
