Camshaft Timing Oil Control Valve Assembly: Inspection
- INSPECT CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY

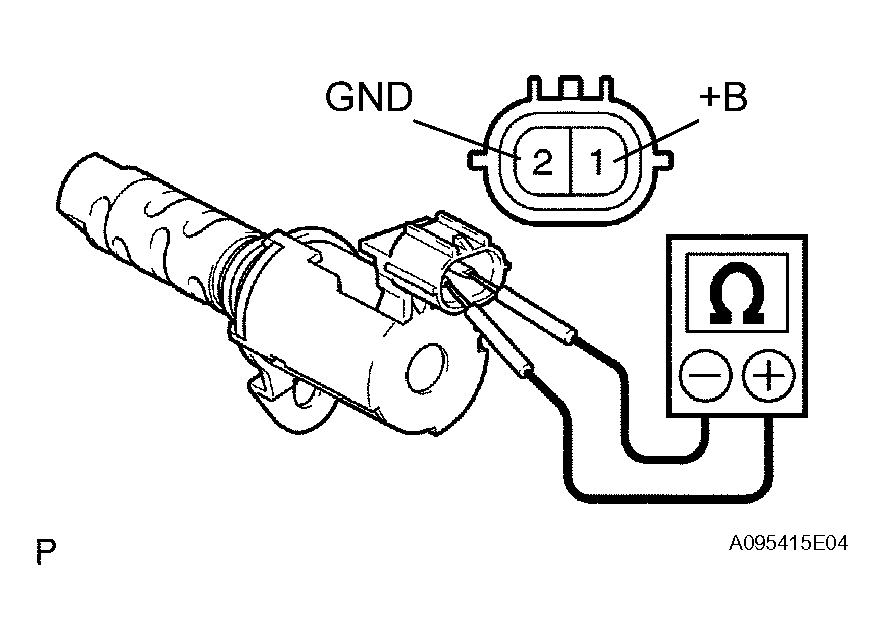

- Measure the resistance of the oil control valve.
Standard resistance
TESTER CONNECTION SPECIFIED CONDITION CHARTTester Connection Specified Condition 1 (+B) - 2 (GND) 6.9 to 7.9 Ω at 20°C (68°F) If the result is not as specified, replace the oil control valve assembly.
- Check the operation.

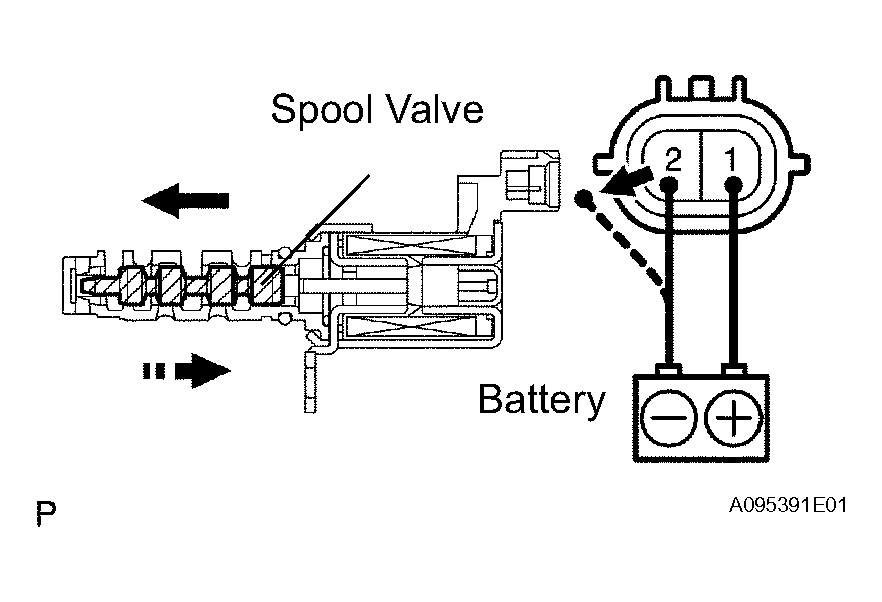

- Apply battery voltage across the terminals and check that the spool valve operates.
NOTE: Check that the spool valve is not stuck.HINT:
The spool valve may not return if foreign objects are caught in it. This may cause subtle pressure leaks to the advance side, and a DTC may be set.
