Terminals Of ECM
HINT:
The standard normal voltage between each pair of ECM terminals is shown in Fig 2 or Fig 3 . The appropriate conditions for checking each pair of terminals is also indicated.

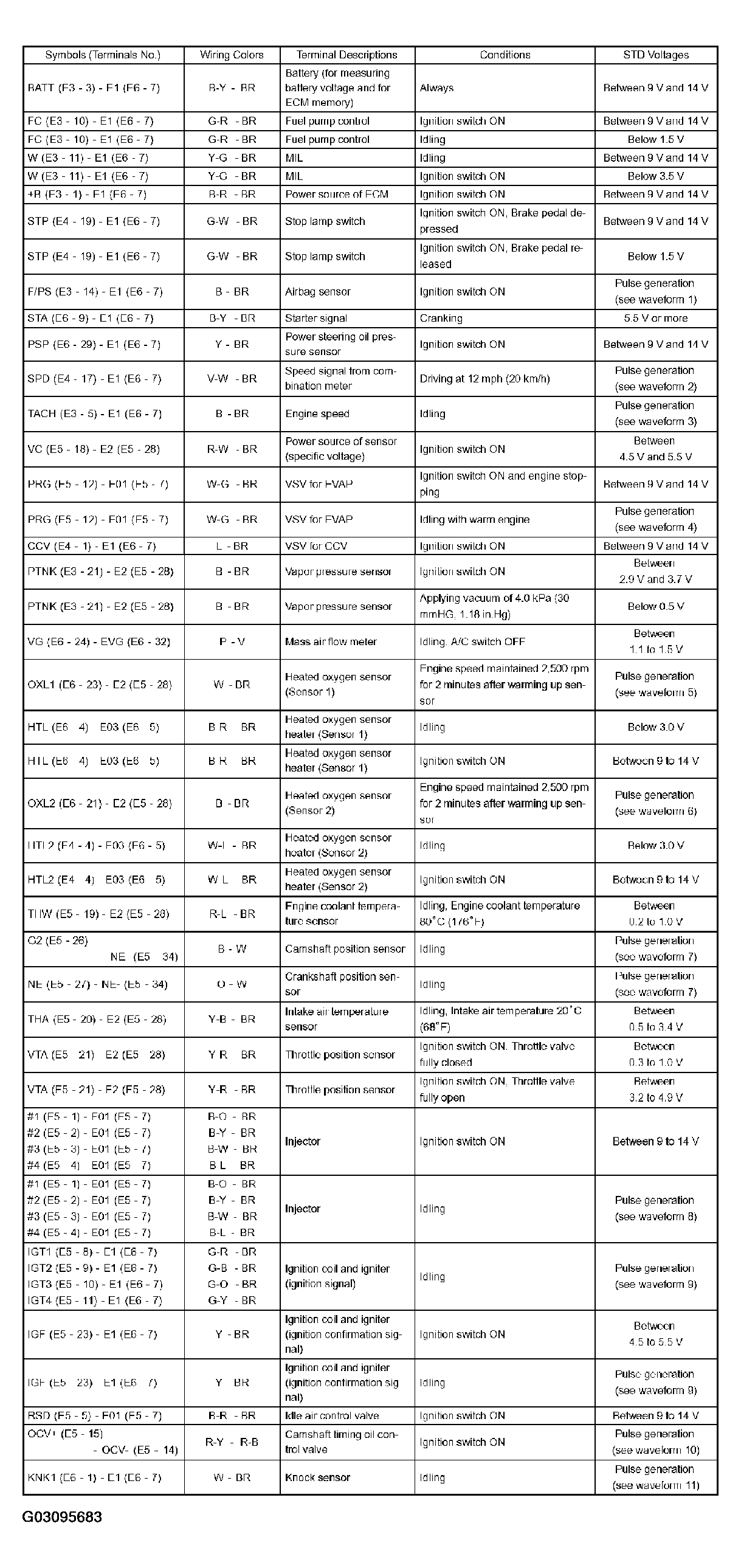

The result of checks should be compared with the standard normal voltage for that pair of terminals, displayed in the STD Voltage column.

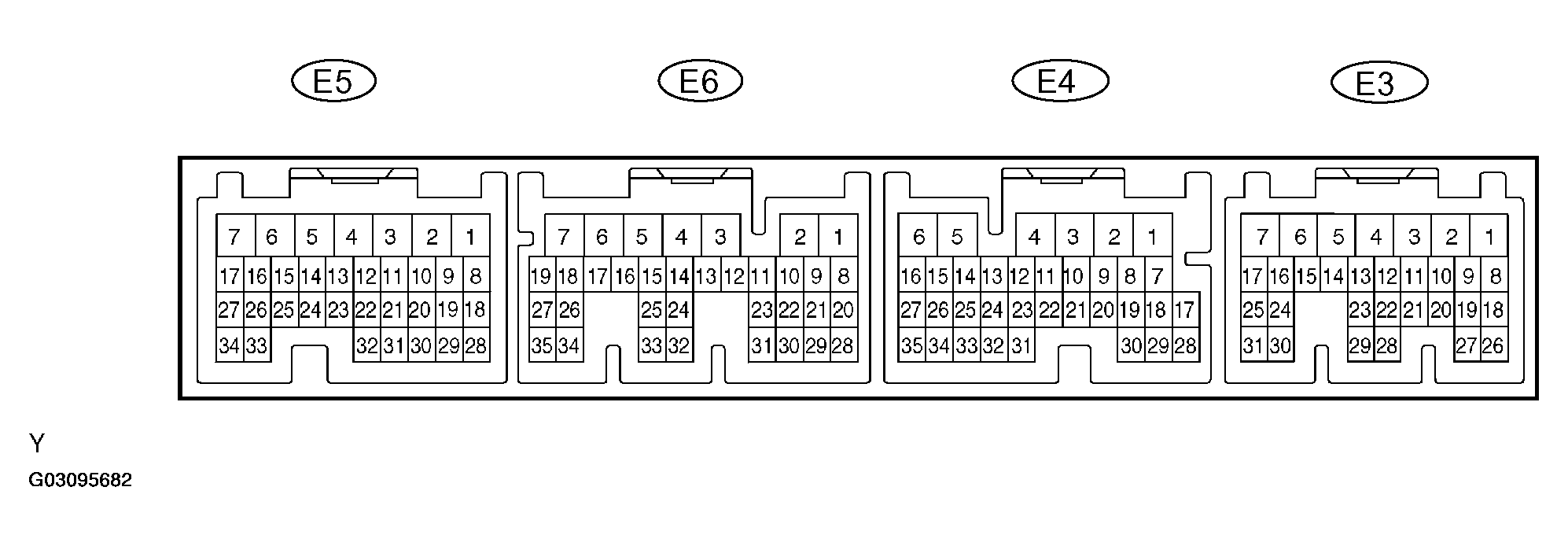

The illustration above can be used as a reference to identify the ECM terminal locations.
