Power Mirror Control System: Inspection
- INSPECT OUTER MIRROR SWITCH ASSY

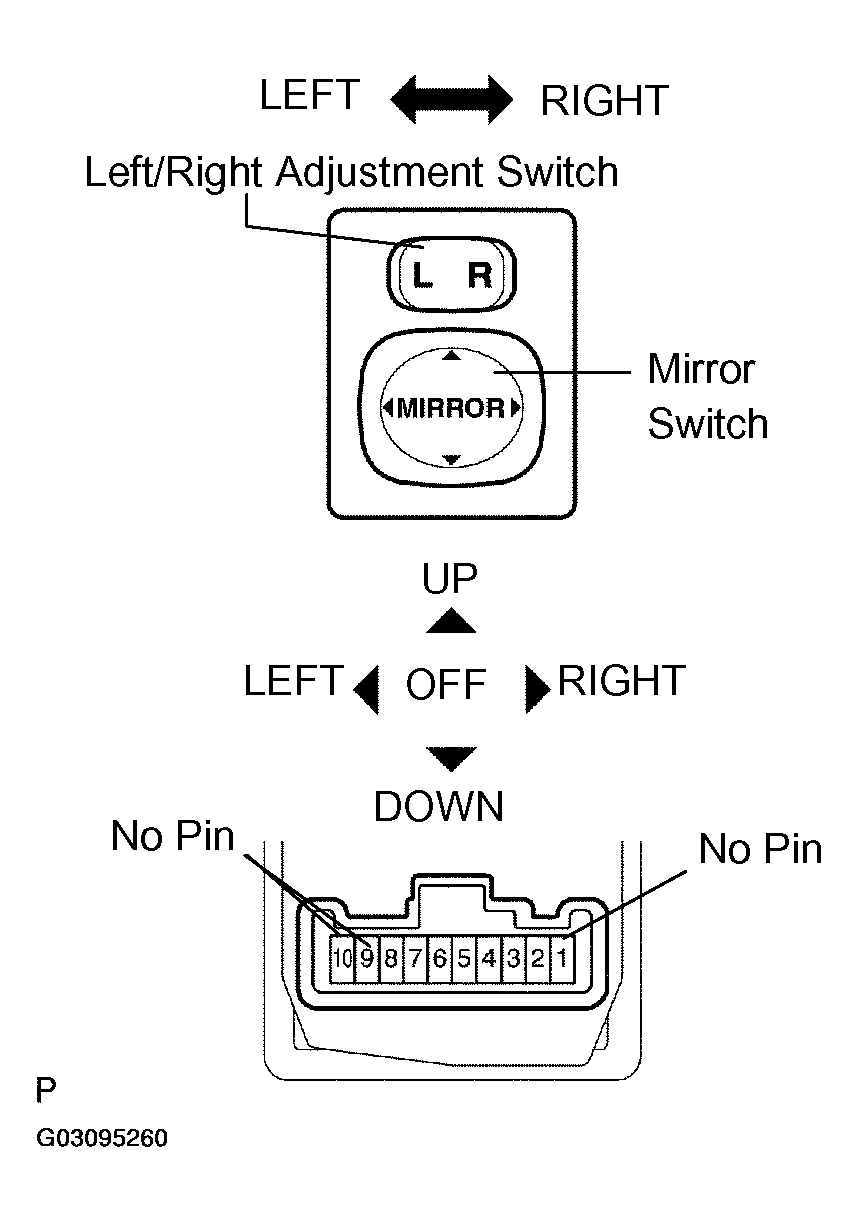

- The L side of the left/right adjustment switch:

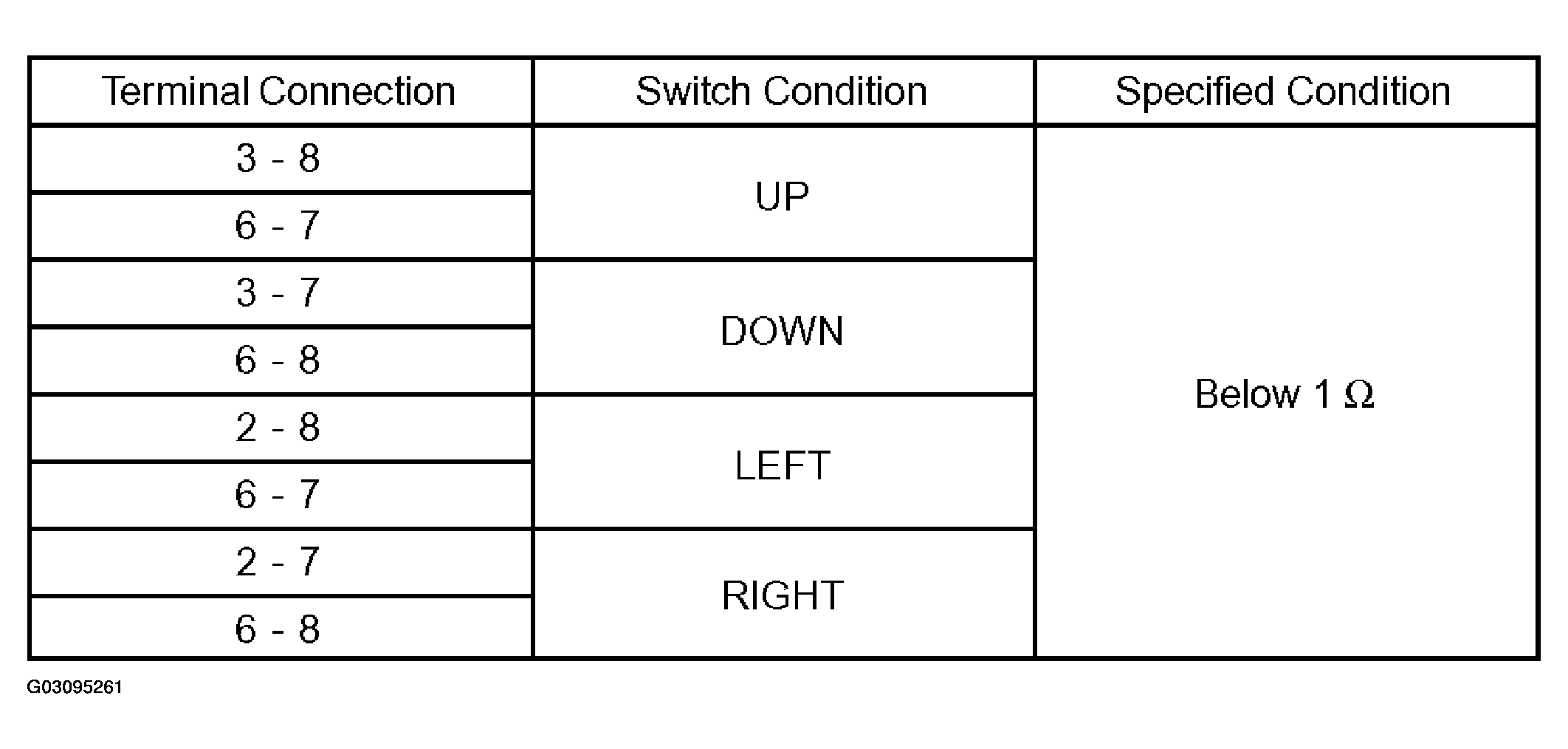

Measure the resistance of the switch.
Standard (Left side):
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If the result is not as specified, replace the switch assy.
- The R side of the left/right adjustment switch:

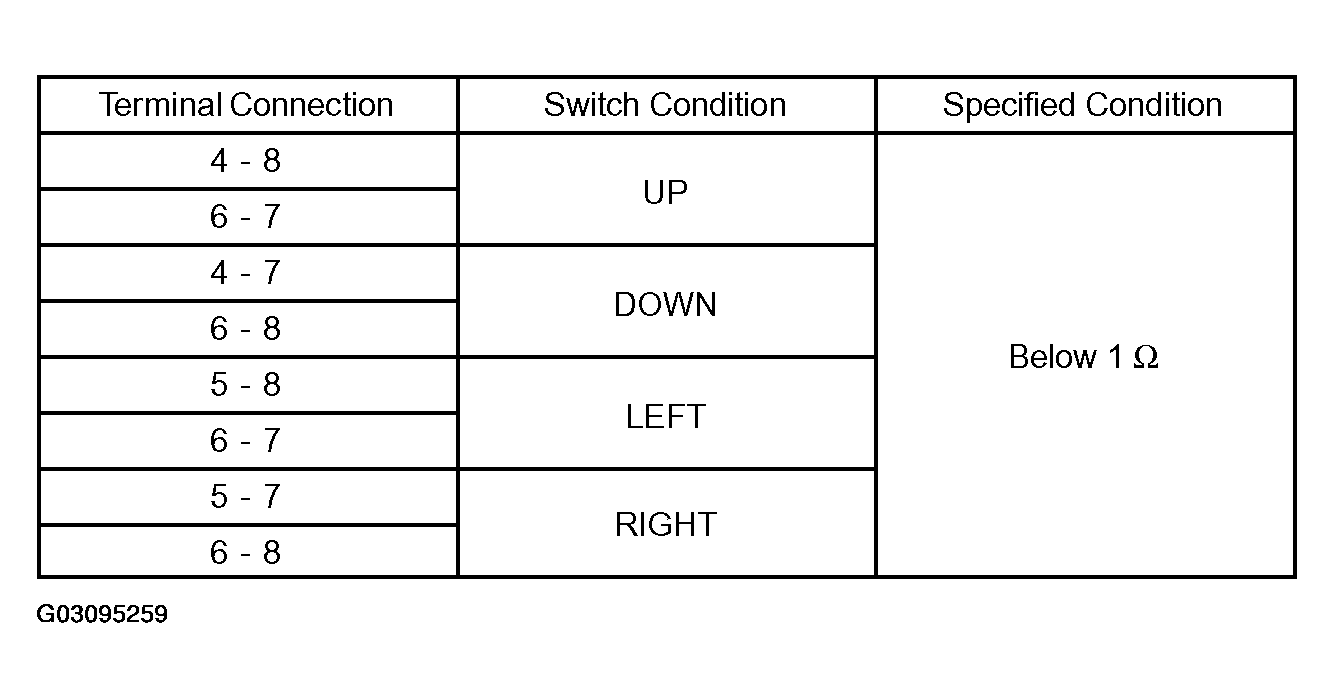

Measure the resistance of the switch.
Standard (Right side):
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If the result is not as specified, replace the switch assy.
- The L side of the left/right adjustment switch:
- INSPECT OUTER REAR VIEW MIRROR ASSY LH
- Disconnect the mirror connector.

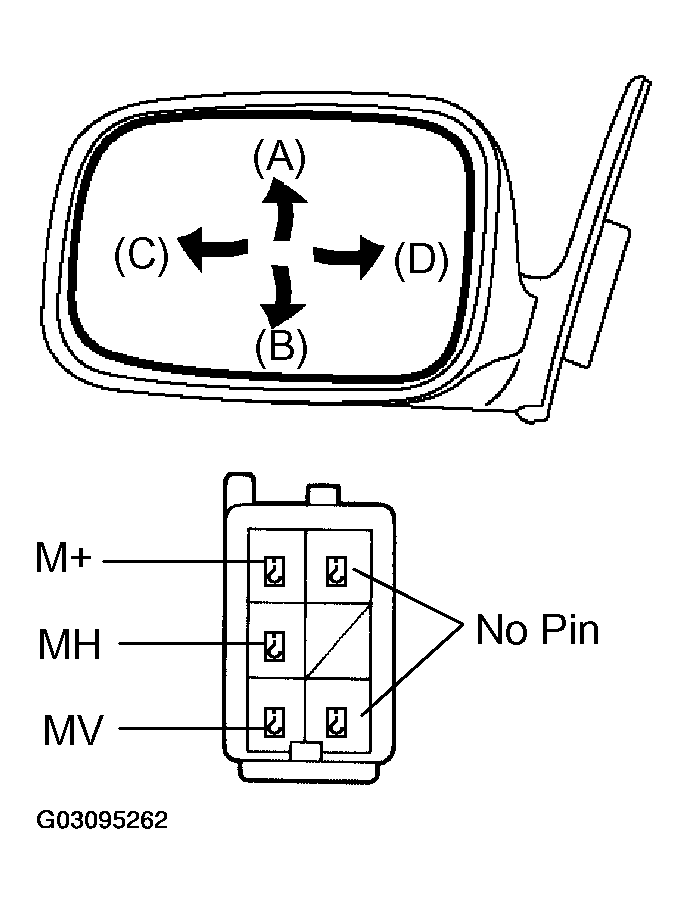

- Apply battery voltage to the mirror terminals and check operation of the mirror face, as shown in OUTER REAR VIEW MIRROR ASSY LH STANDARD SPECIFICATIONS and Fig 4.
Standard:
OUTER REAR VIEW MIRROR ASSY LH STANDARD SPECIFICATIONSMeasurement Condition Mirror Operation Battery positive (+) -> 5 (MV)
Battery negative (-) -> 3 (M+)Turns upward (A) Battery positive (+) -> 3 (M+)
Battery negative (-) -> 5 (MV)Turns downward (B) Battery positive (+) -> 3 (M+)
Battery negative (-) -> 1 (MH)Turns left (C) Battery positive (+) -> (MH)
Battery negative (-) -> 3 (M+)Turns right (D) If the result is not as specified, replace the mirror assy.
- INSPECT OUTER REAR VIEW MIRROR ASSY RH
- Disconnect the mirror connector.

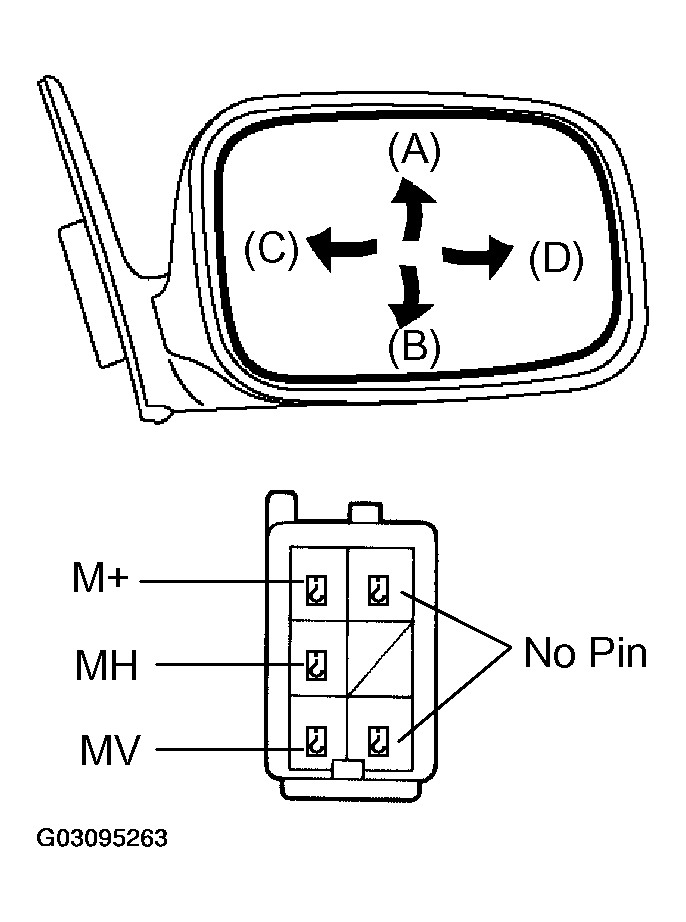

- Apply battery voltage to the mirror terminals and check operation of the mirror face, as shown in OUTER REAR VIEW MIRROR ASSY RH STANDARD SPECIFICATIONS and Fig 5.
Standard:
OUTER REAR VIEW MIRROR ASSY RH STANDARD SPECIFICATIONSMeasurement Condition Mirror Operation Battery positive (+) -> 5 (MV)
Battery negative (-) -> 3 (M+)Turns upward (A) Battery positive (+) -> 3 (M+)
Battery negative (-) -> 5 (MV)Turns downward (B) Battery positive (+) -> 1 (M+)
Battery negative (-) -> 3 (MH)Turns right (D) Battery positive (+) -> 3 (MH)
Battery negative (-) -> 1 (M+)Turns left (C) If the result is not as specified, replace the mirror assy.
