2005 Scion xB AutomaticFACTORY OEM SERVICE PROCEDURE

Power Window Control System: Inspection

POWER WINDOW SYSTEM CIRCUIT

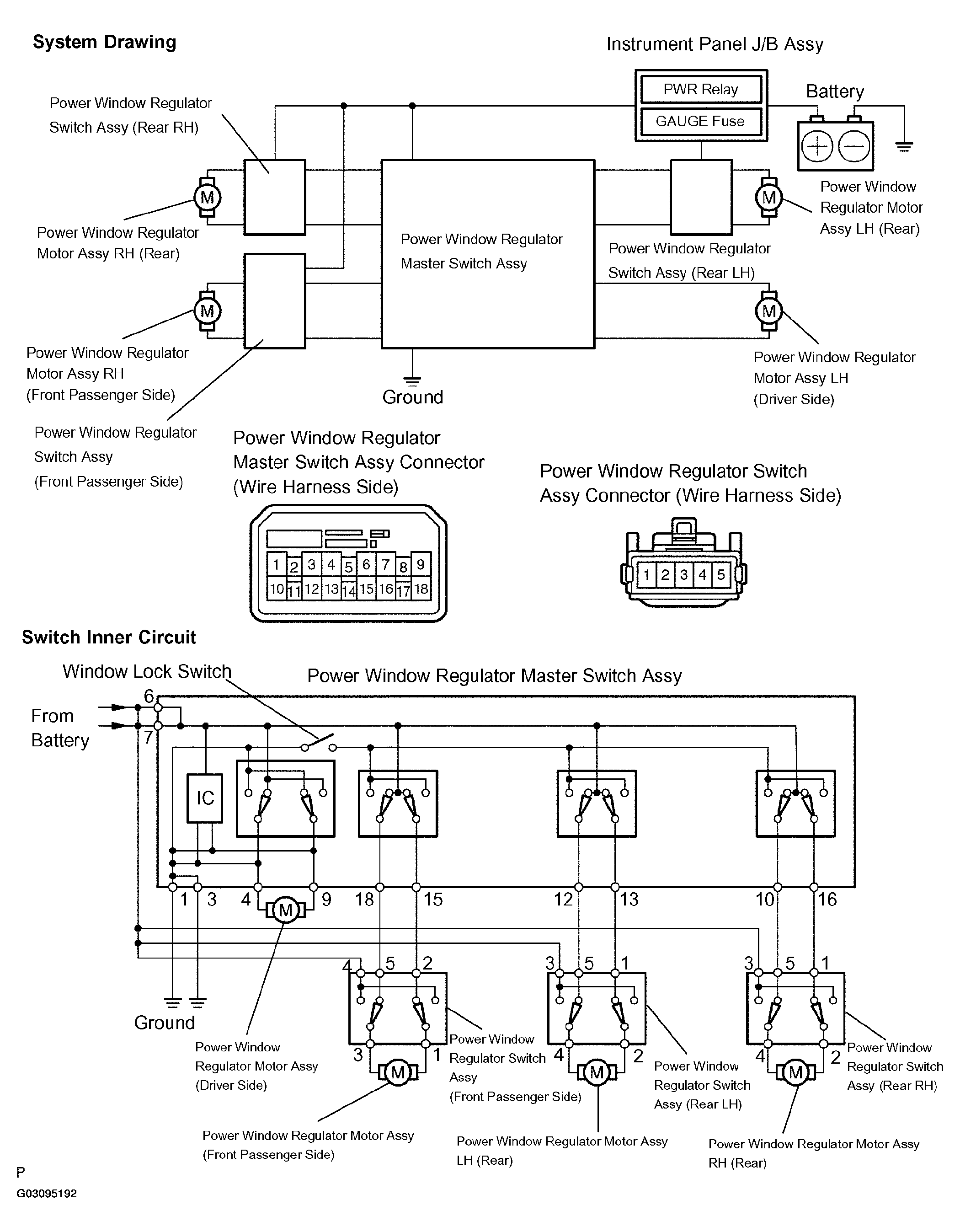

Fig 1: Power Window System Drawing And Switch Inner Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSY
1. Measure the resistance between each terminal of the connector when the switch is operated.

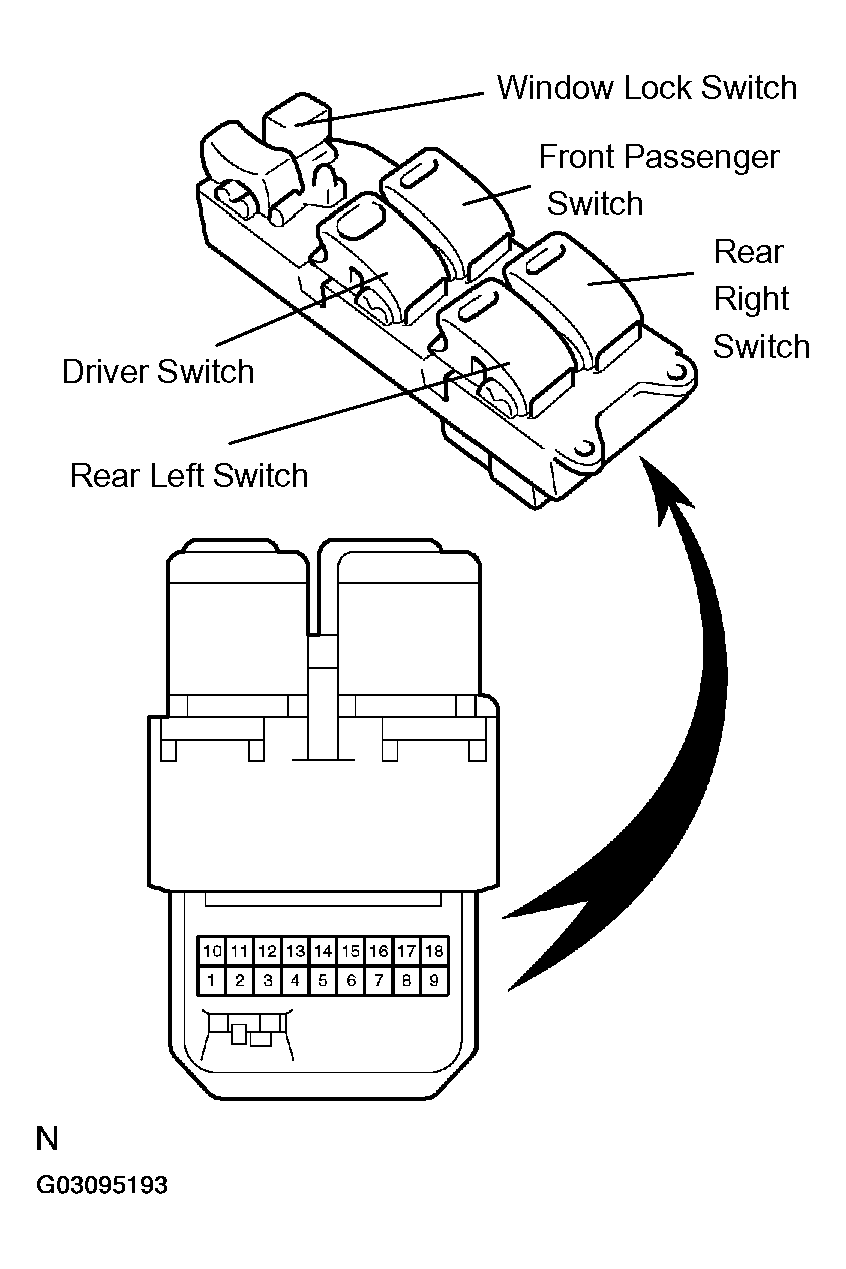

  Fig 2: Identifying Power Window Regulator Master Switch Assy Components
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Standard:

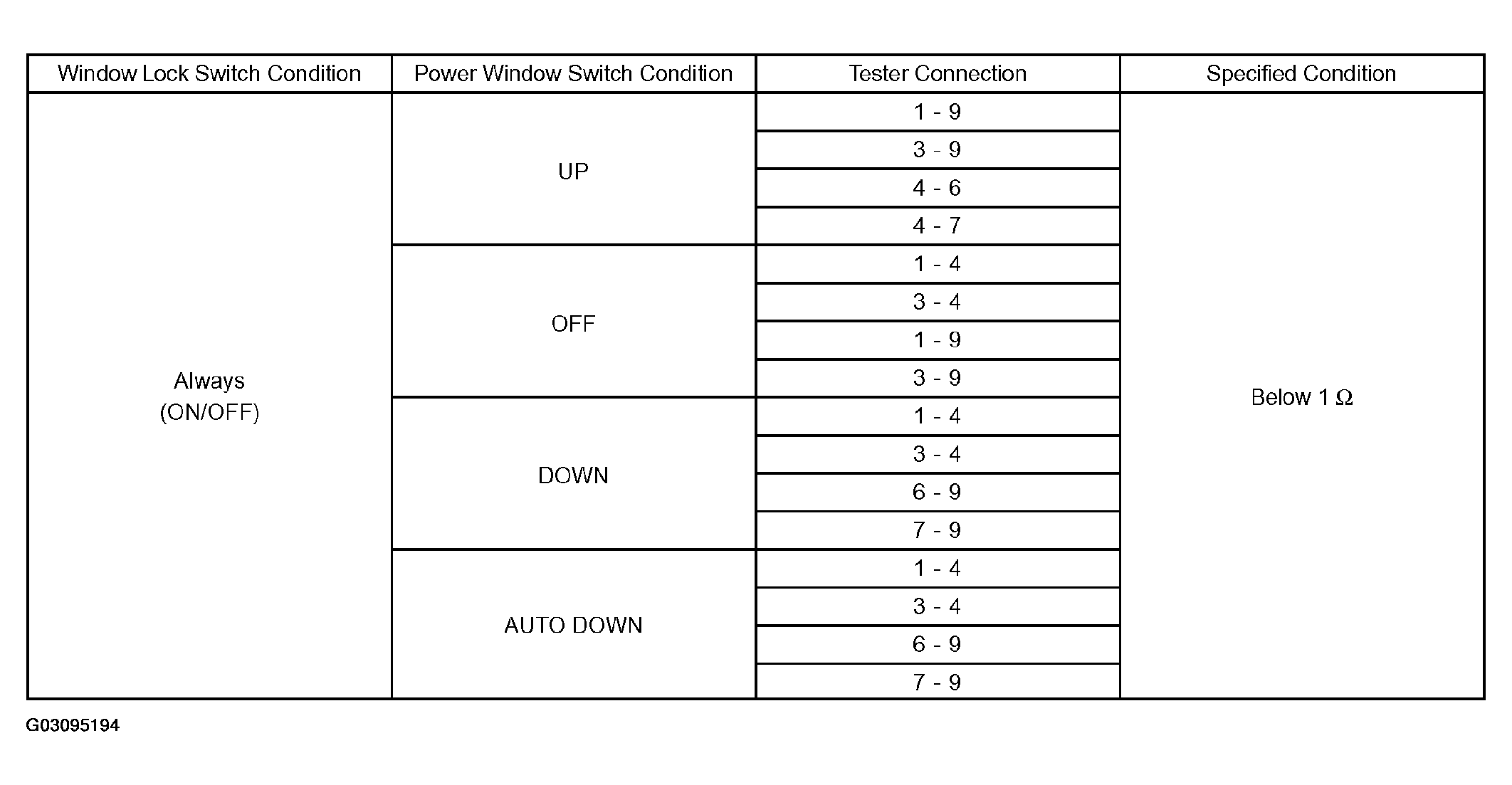

  Fig 3: Driver Switch Testing Conditions Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
