Ignition System: Inspection
- INSPECT SPARK PLUG

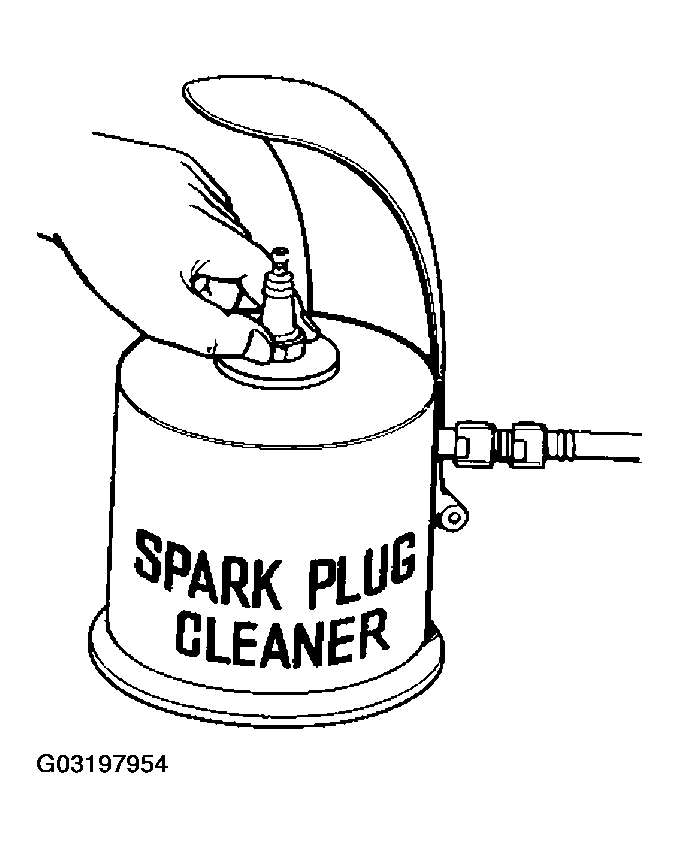

- Clean the spark plugs.
If the electrode has the traces of wet carbon, clean the electrode with a spark plug cleaner, then dry it.
Air pressure: Below 588 kPa (6 kg/cm 2 , 85 psi)
Duration: 20 seconds or less

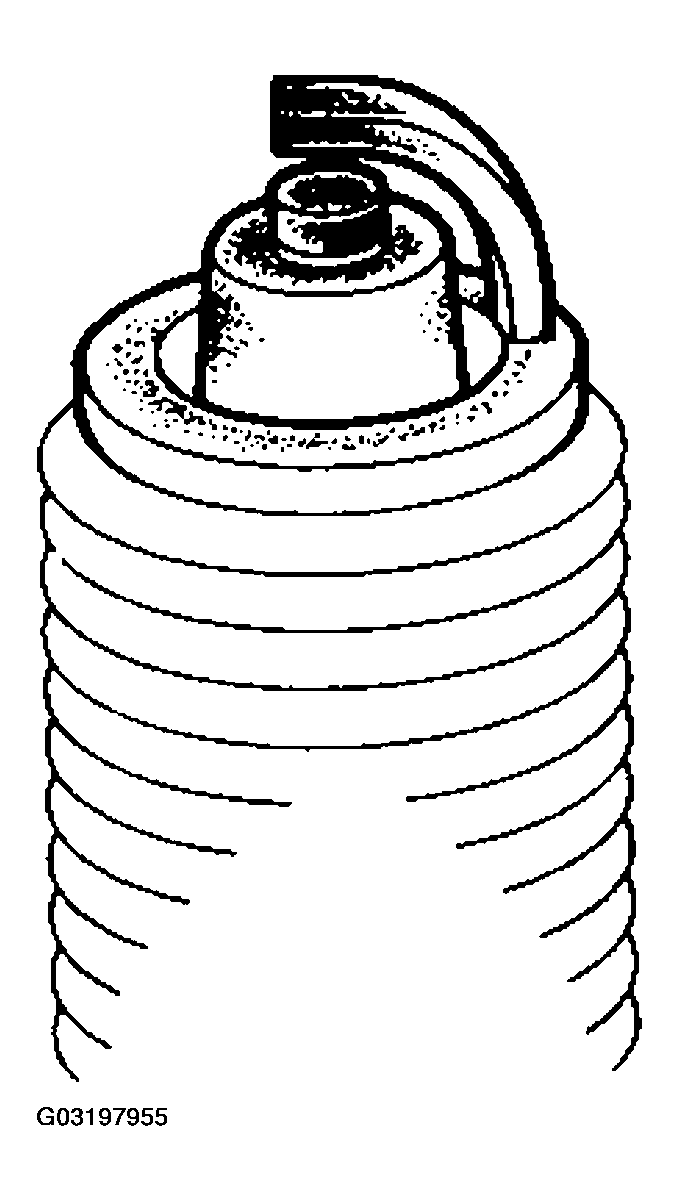

- Check the spark plug for any damage on its thread and insulator.
If there is damage, replace the spark plug.
Recommended spark plug:

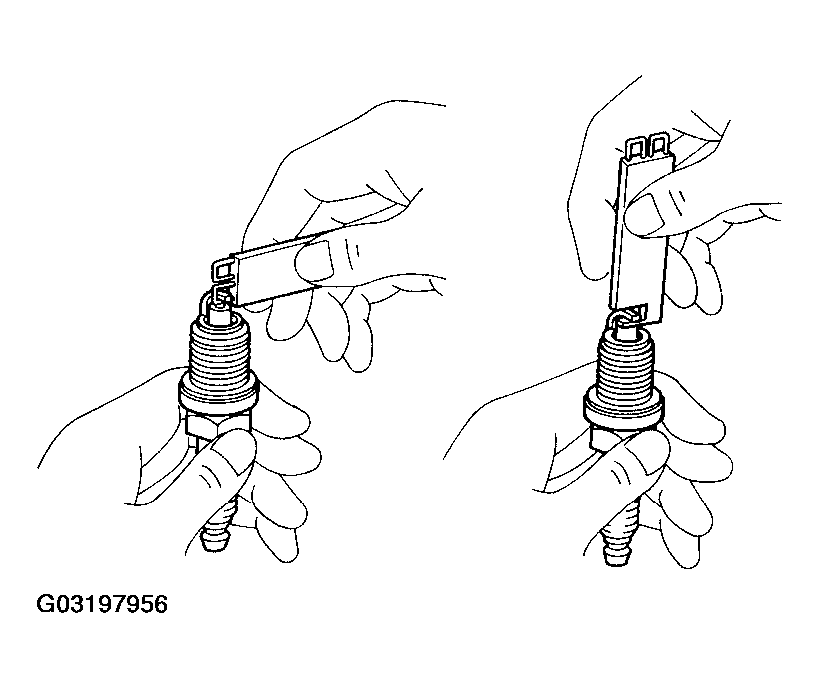

RECOMMENDED SPARK PLUGDENSO made K16R-U NGK made BKR5EYA - Inspect the electrode gap.
Electrode gap: 0.7 to 0.8 mm (0.028 to 0.031 in.)
- Clean the spark plugs.
- INSPECT CAMSHAFT POSITION SENSOR
- Using an ohmmeter, measure the resistance between the terminals.
RESISTANCE:
1630 to 2740 Ω at cold
2065 to 3225 Ω at hot
NOTE: "Cold" and "Hot" mean the temperature of the coils themselves. "Cold" is from - 10°C (14°F) to 50°C (122°F) and "Hot" is from 50°C (122°F) to 100°C (212°F).
- Using an ohmmeter, measure the resistance between the terminals.
- INSPECT CRANKSHAFT POSITION SENSOR
- Using an ohmmeter, measure the resistance between the terminals.
RESISTANCE:
985 to 1600 Ω at cold
1265 to 1890 Ω at hot
NOTE: "Cold" and "Hot" mean the temperature of the coils themselves. "Cold" is from - 10°C (14°F) to 50°C (122°F) and "Hot" is from 50°C (122°F) to 100°C (212°F).
- Using an ohmmeter, measure the resistance between the terminals.
