2005 Scion xA AutomaticFACTORY OEM SERVICE PROCEDURE

O2S Test Result

NOTE: The O2S Test Result is not applicable to the A/F sensor and HO2S heater. These test result are checked by the Monitor Status. Refer to CHECKING MONITOR STATUS .
  1. INTRODUCTION

    The O2S Test Result (Mode 5) allows the OBD scan tool to display the test value that was used to determine whether the heated oxygen sensor (HO2S) is functioning normally or not. A problem in the HO2S can be found by comparing the test value and malfunction criterion. The O2S test result information is included under "O2S TEST RESULT" in the HO2S-related DTC sections (DTC P0136).

    The ECM (PCM) monitors the HO2S. After the monitor, the ECM stores the test value. When the test value is inside the malfunction criterion, the HO2S is functioning normally. If the test value is outside the malfunction criterion, the HO2S is malfunctioning.

  2. PROCEDURE
    NOTE: Test value is cleared when the ignition switch is turned OFF.
    1. Connect the hand-held tester to the DLC3.
    2. Turn the ignition switch and hand-held tester.
    3. Clear the DTC.
    4. Run the vehicle in accordance with the HO2S monitor drive pattern. Refer to READINESS MONITOR DRIVE PATTERN .
    5. Select from the hand-held tester menus: DIAGNOSIS, ENHANCED OBDII, MONITOR INFO and MONITOR STATUS.
    6. Check that the HO2S monitor status (O2S MON) is either PASS or FAIL.
    7. Select from the hand-held tester menus: DIAGNOSIS, CARB OBDII and O2S TEST RESULT.
    8. Select the desired HO2S and press ENTER.

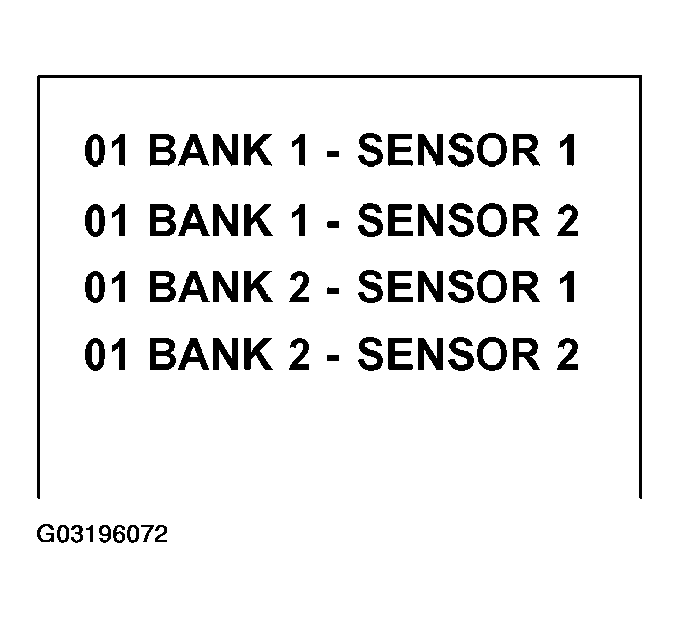

      Fig 1: Selecting HO2S Menu Screen
      G03196072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. The test value appears after the component name.
      NOTE: If this vehicle is equipped with the A/F sensor, the hand-held tester will display "NO PARAMETER TO DISPLAY" when "BANK 1 - SENSOR 1" or "BANK 2 - SENSOR 1 " is selected.
