Camshaft Position Sensor: Replacement
- REMOVE AIR CLEANER ASSY (See REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY )
- REMOVE CAMSHAFT POSITION SENSOR

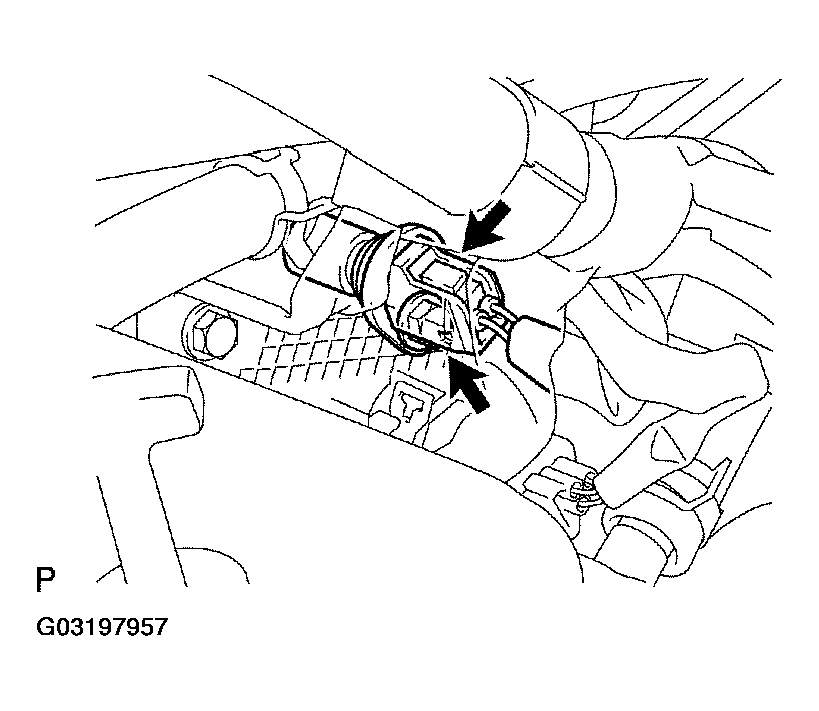

- Disconnect the camshaft position sensor connector.
- Remove the bolt and camshaft position sensor.
- INSTALL CAMSHAFT POSITION SENSOR
- Apply a light coat of engine oil to the O-ring on the camshaft position sensor.
- Install the camshaft position sensor with the bolt.
Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)
- Connect the camshaft position sensor connector.
- INSTALL AIR CLEANER ASSY (See REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY )
