Fuel System: Inspection
- INSPECT FUEL INJECTOR ASSYΒ
- Inspect the resistance.
- Using an ohmmeter, measure the resistance between the terminals.
Resistance: 13.4 to 14.2 Ξ©. at 20Β°C (68Β°F)Β
If the resistance is not as specified, replace the injector.
- Using an ohmmeter, measure the resistance between the terminals.
- Inspect the injector operation.CAUTION:
- Perform the test in a well-ventilated area and watch out for flames.

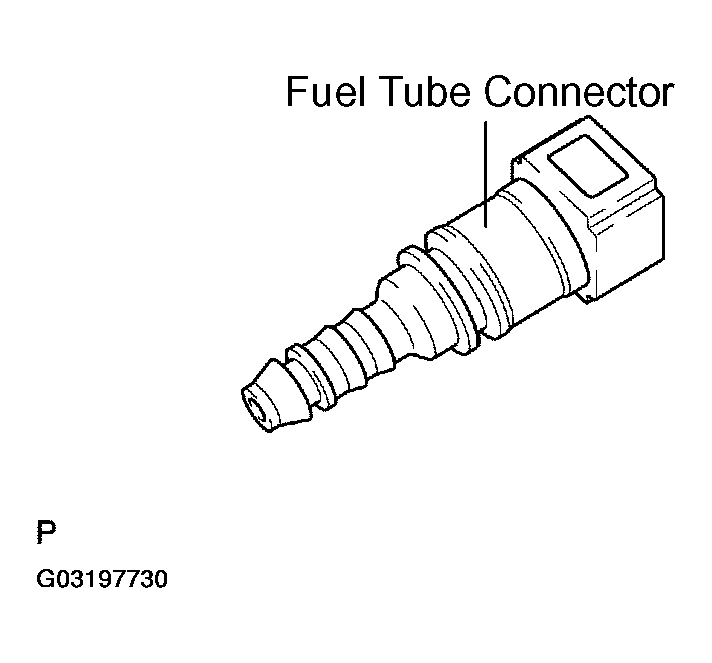

- Carefully handle the fuel tube connector.
- Pull out the connector from a new fuel tube.
HINT:
Part No. 23901-21060
- Connect SST and the fuel tube connector to the fuel pipe.
SST 09268-41047 (95336-08070).
CAUTION: After taking the precaution, connect the fuel tube connected (quick type).
- Inspect the resistance.
