Inner Rear View Mirror ASSY: Replacement
HINT: The installation procedures are the removal procedure in reverse order.
- REMOVE INNER REAR VIEW MIRROR ASSY

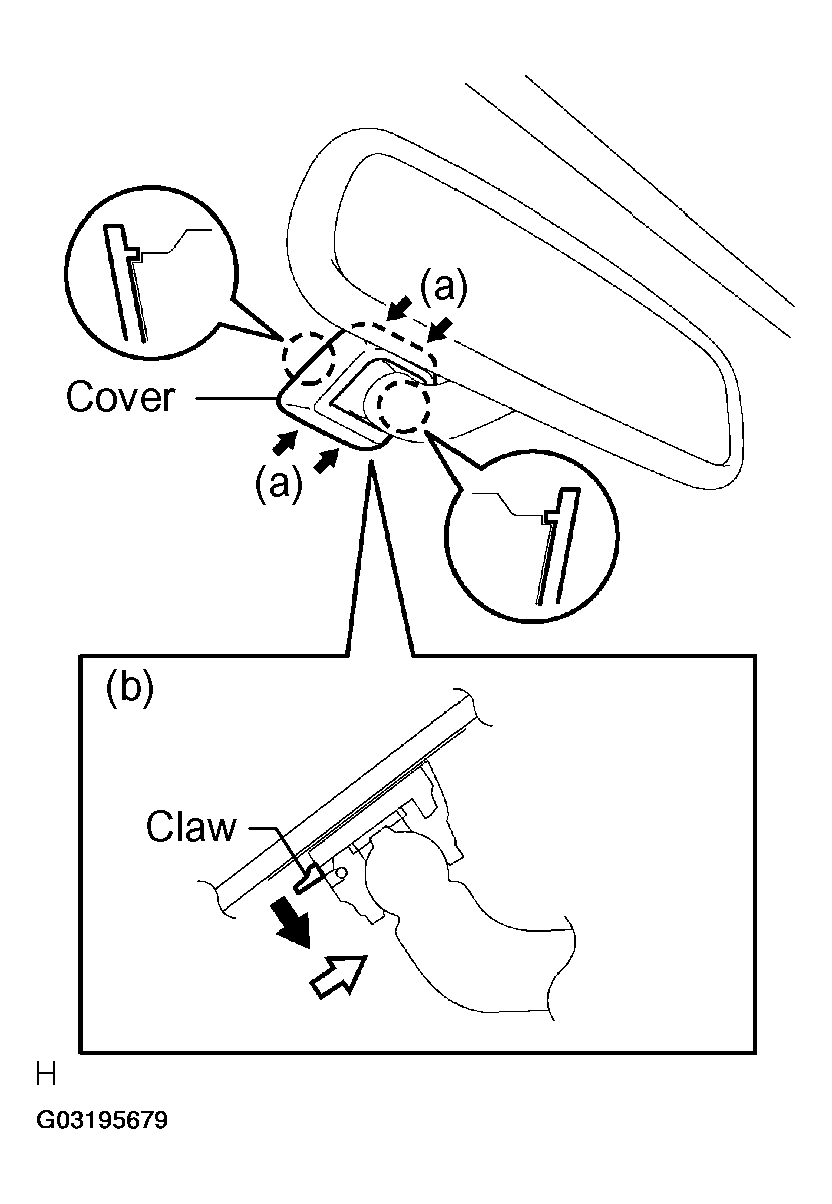

- Push the cover in the direction indicated by the arrows and remove it.
- While holding down the claw in the direction of the black arrow, slide the inner rear view mirror assy in the direction of the arrow and remove it.
