Back Door Glass: Replacement
HINT: The installation procedures are the removal procedures in reverse order. However, only installation procedures requiring additional information are included.
- REMOVE BACK DOOR GLASS

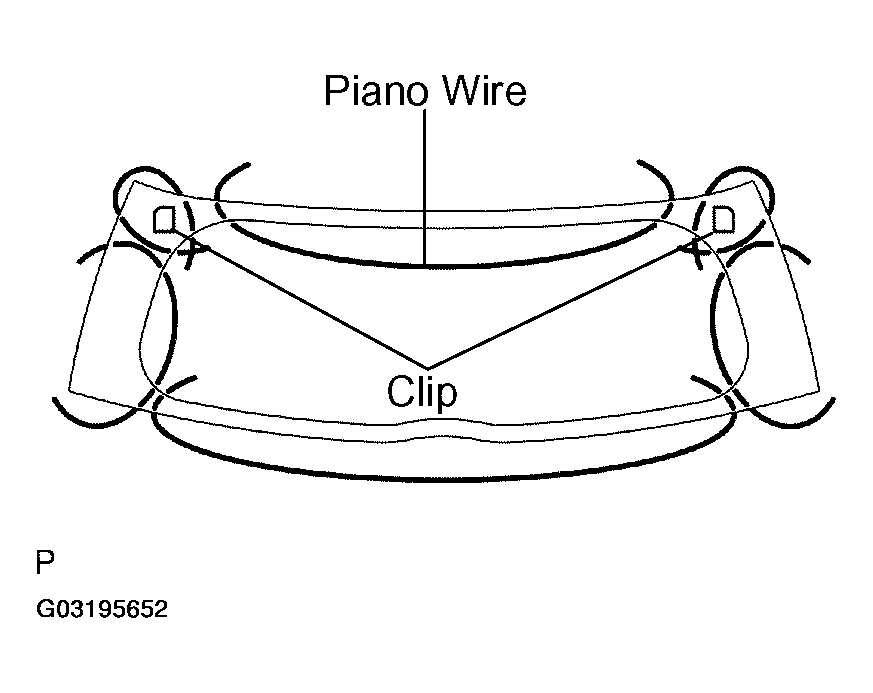

- From the interior, insert piano wines between the vehicle body and glass, as shown in the illustration.
- Tie objects that can serve as handles (for example, wooden blocks) to all wire ends.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
HINT: Apply protective tape to the outer surface of the vehicle to prevent its surface from being scratched.
NOTE: When separating the glass from the vehicle, take care not to damage the paint and interior/exterior ornaments. - Cut through the adhesive by pulling the piano wire around the glass.NOTE: If the back door glass will be reused, be careful not to damage the clip attached to the glass when you cut off the adhesive.
