2005 Scion tC AutomaticFACTORY OEM SERVICE PROCEDURE

Engine Coolant Temperature Sensor (2AZ-FE): Replacement

NOTE: When disconnecting the battery terminal, initialize the following system after the terminal is reconnected.

SYSTEM SPECIFICATIONS

System	Refer To
Power window control system	INITIALIZATION
Sliding roof system	INITIALIZATION

DRAIN ENGINE COOLANT (see ENGINE COOLANT (2AZ-FE) )
DISCONNECT BATTERY NEGATIVE TERMINAL
REMOVE ENGINE COOLANT TEMPERATURE SENSOR
1. Disconnect the engine coolant temperature sensor connector.
2. Using SST, remove the engine coolant temperature sensor and gasket.
  1. SST 09817-33190

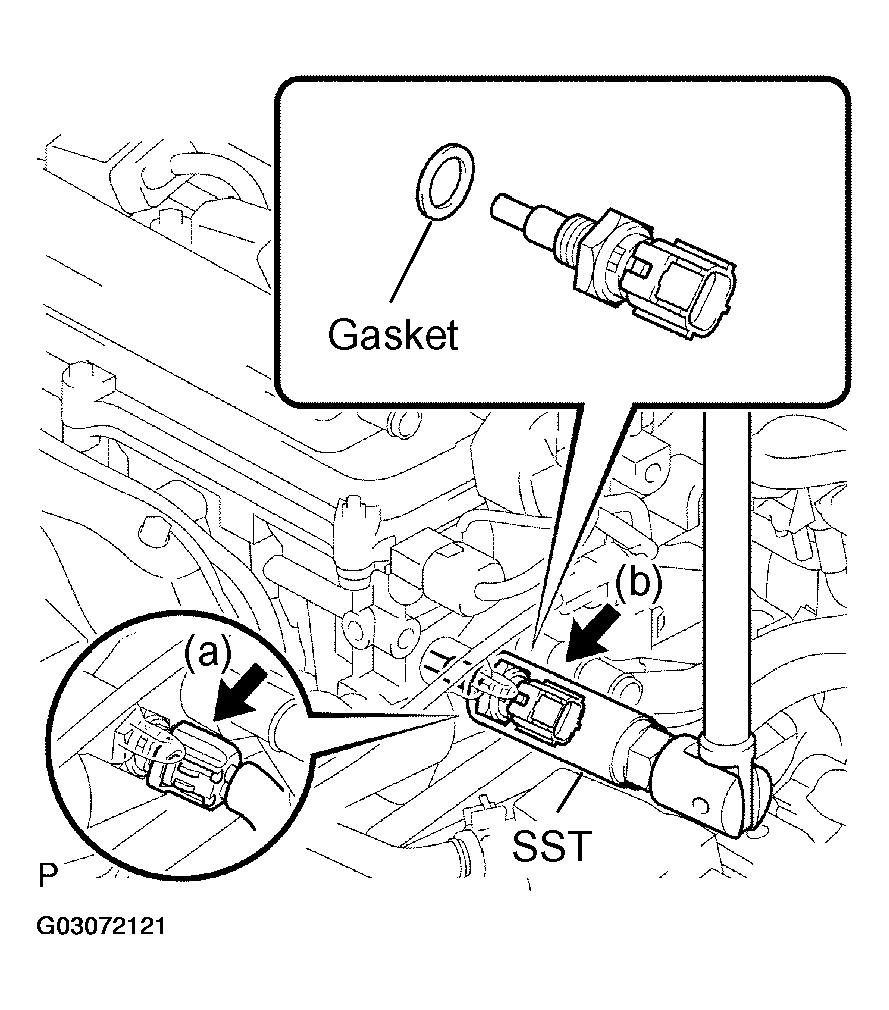

  Fig 1: Removing Engine Coolant Temperature Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ENGINE COOLANT TEMPERATURE SENSOR
1. Install a new gasket onto the engine coolant temperature sensor.
2. Using SST, install the engine coolant temperature sensor.
  1. SST 09817-33190
  2. Torque: 19.6 N.m (200 kgf.cm, 14 ft.lbf)
3. Connect the engine coolant temperature sensor connector.

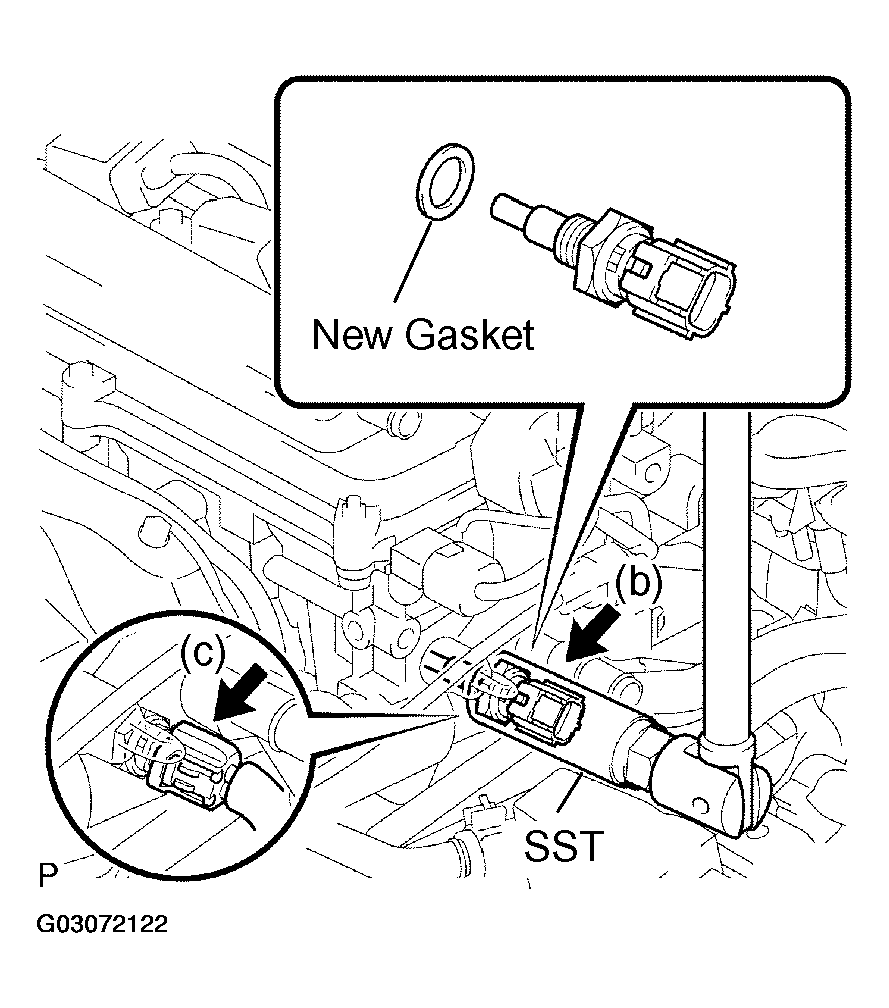

  Fig 2: Connecting Engine Coolant Temperature Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT BATTERY NEGATIVE TERMINAL
1. Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
ADD ENGINE COOLANT (see ENGINE COOLANT (2AZ-FE) )
CHECK FOR ENGINE COOLANT LEAKAGE (see COOLING SYSTEM (2AZ-FE) )
