Inspection Procedure

1. Turn the window lock switch OFF and operate the passenger side power window switch on the power window regulator master switch. Check that the remote UP/ DOWN function operates normally.

   OK: Remote UP/DOWN function operates normally.

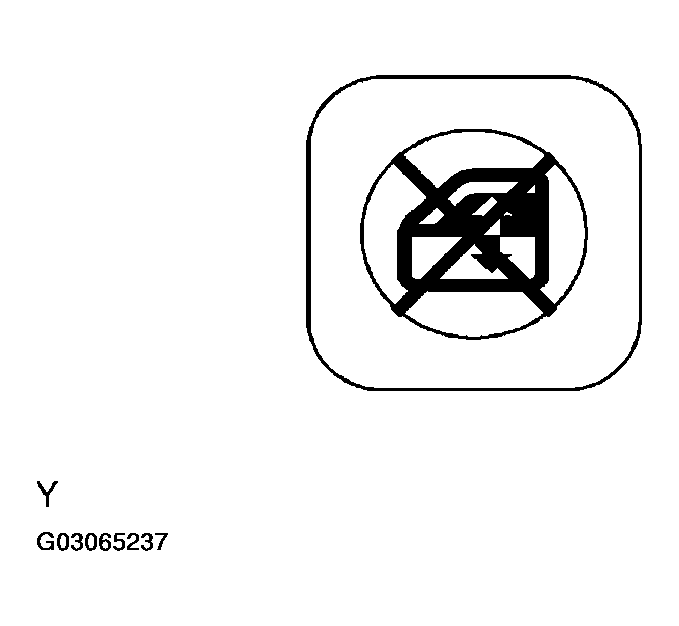

Fig 1: Identifying Power Window Lock Switch (Passenger Side)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: Go to step 2

OK: END

1. Check that the power window can be operated with the power window regulator switch.

   OK: Manual UP/DOWN function operates normally.

NG: OTHER PROBLEM (See  PROBLEM SYMPTOMS TABLE   )

OK: GO TO NEXT STEP

1. Check that the power window can be operated with the power window regulator switch.

   OK: AUTO UP/DOWN function operates normally.

NG: OTHER PROBLEM (See  AUTO UP/DOWN FUNCTION DOES NOT OPERATE ON PASSENGER SIDE   )

OK: GO TO NEXT STEP

1. Disconnect the P12 regulator switch connector.
2. Turn the ignition switch ON.
3. Using an oscilloscope, check the waveform of the connector.

   Standard:

   The waveform is shown in  Fig 2  .

   REGULATOR SWITCH (PASSENGER SIDE) REFERENCE



   Tester Connection	P12-2 (MPX1) - P12-7 (GND)
   Tool Setting	10V/DIV, 1 ms/DIV.
   Condition	Operating passenger side switch on master switch

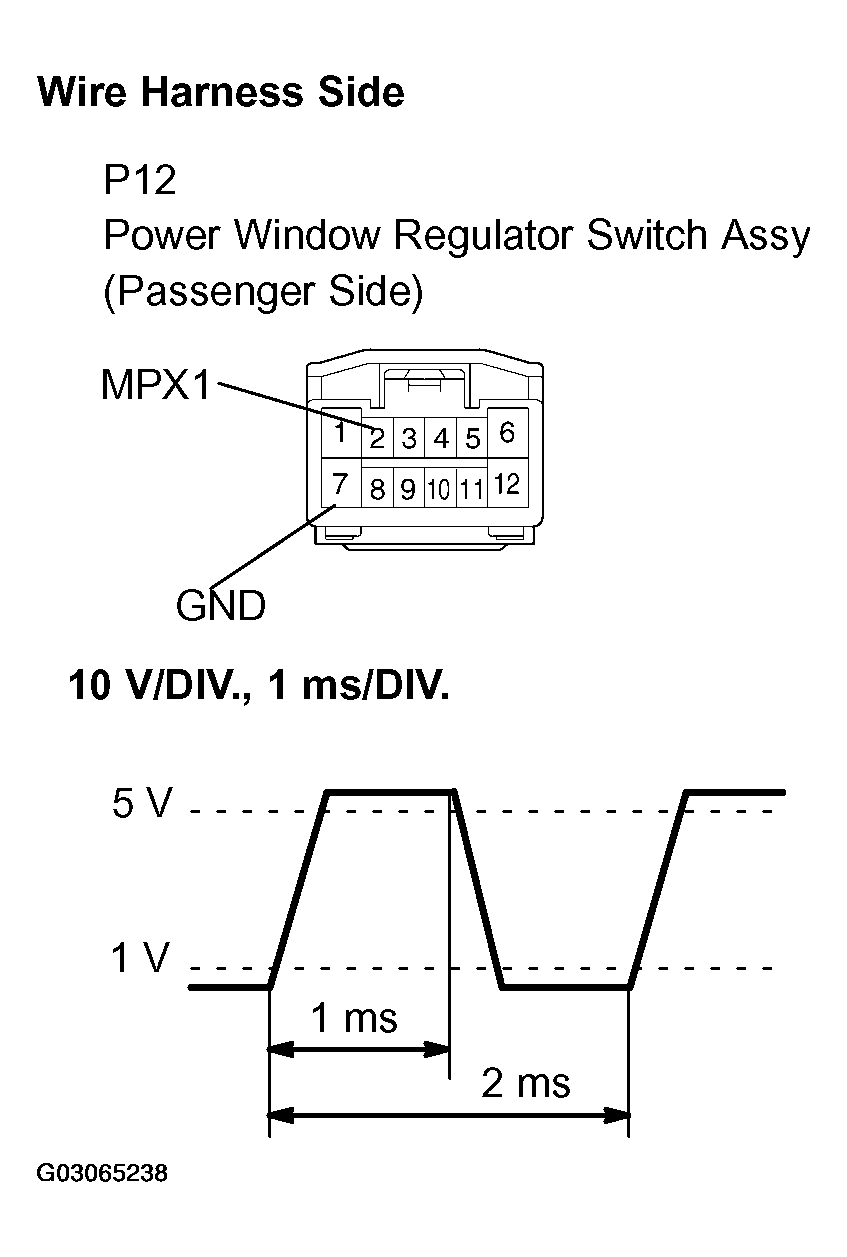

   Fig 2: Checking Waveform Using Oscilloscope

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: Go to step 5

OK: REPLACE POWER WINDOW REGULATOR SWITCH ASSY (PASSENGER SIDE)

1. Disconnect the P12 regulator switch connector.
2. Disconnect the P9 regulator master switch connector.
3. Measure the resistance of the wire harness side connectors.

   Standard:

   POWER WINDOW REGULATOR MASTER SWITCH ASSY TERMINAL RESISTANCE



   Tester Connection	Specified Condition
   P12-2 (MPX1) - P9-7 (MPX1)	Below 1 Ω
   P12-2 (MPX1) - Body ground	10 kΩ or higher

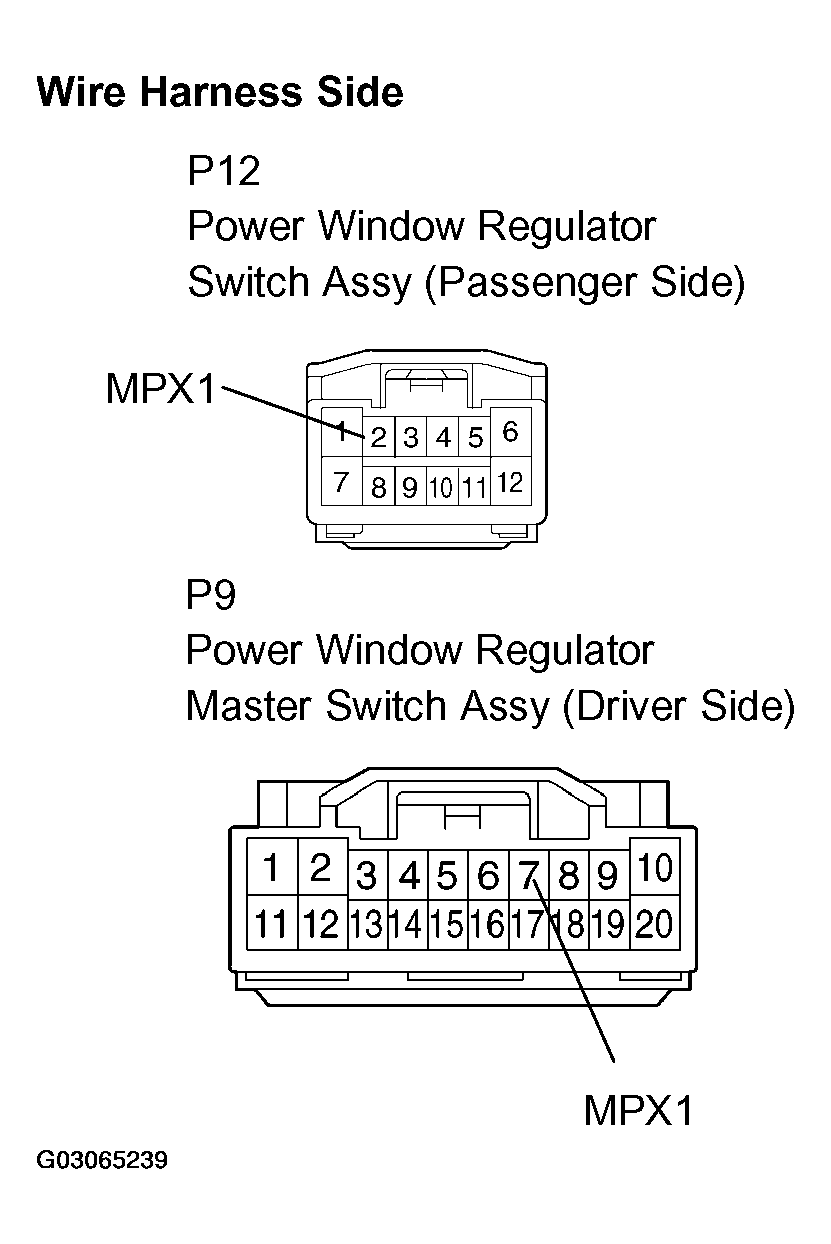

   Fig 3: Measuring Resistance Of Wire Harness Side Connectors

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: GO TO NEXT STEP

1. Remove the master switch but do not disconnect the connector.
2. Turn the ignition switch ON,
3. Measure the voltage of the connector.

   Standard:

   POWER WINDOW REGULATOR MASTER SWITCH ASSY TERMINAL VOLTAGE



   Tester Connection	Window Lock Switch Condition	Specified Condition
   P9-6 (PCT) - Body ground	OFF (Normal)	10 to 14 V
   P9-6 (PCT) - Body ground	ON (Lock)	Below 1 V

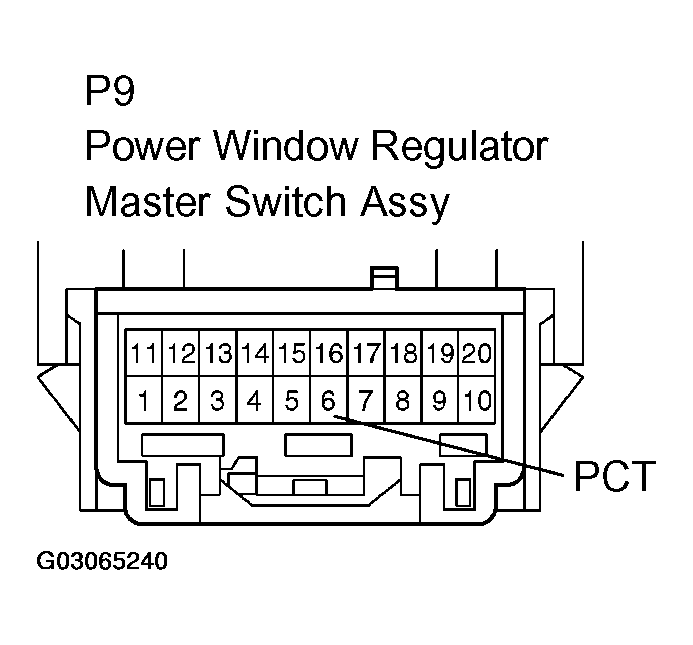

   Fig 4: Measuring Voltage Of Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSY

OK: REPAIR OR REPLACE HARNESS AND CONNECTOR (POWER WINDOW REGULATOR SWITCH ASSY - POWER WINDOW REGULATOR MASTER SWITCH ASSY)
